2.5 L Model

  1. Drain fluid from the reservoir tank.
  2. Disconnect pipe D from return hose and suction hose from oil pump.
    CAUTION:
    • Do not allow fluid from the hose end to come into contact with pulley belt.
    • To prevent foreign matter from entering the hose and pipe, cover the open ends of them with a clean cloth.

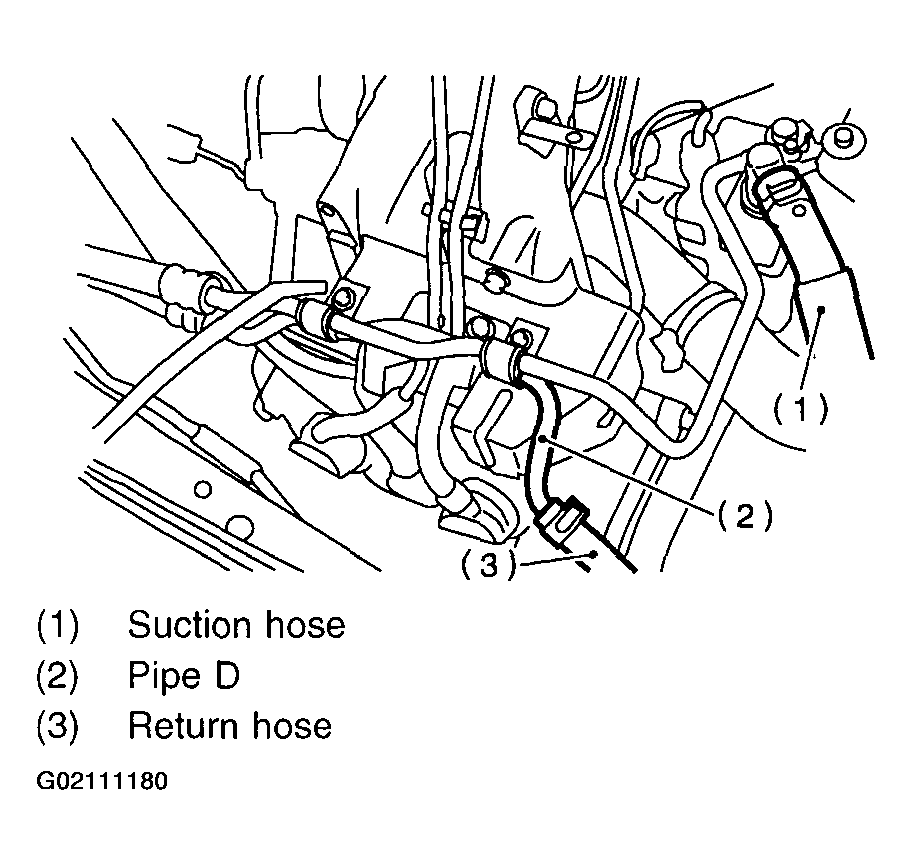

    Fig 1: Disconnecting Pipe D From Return & Suction Hoses
    G02111180
  3. Remove reservoir tank from bracket by pulling it upwards.
