Special Tools

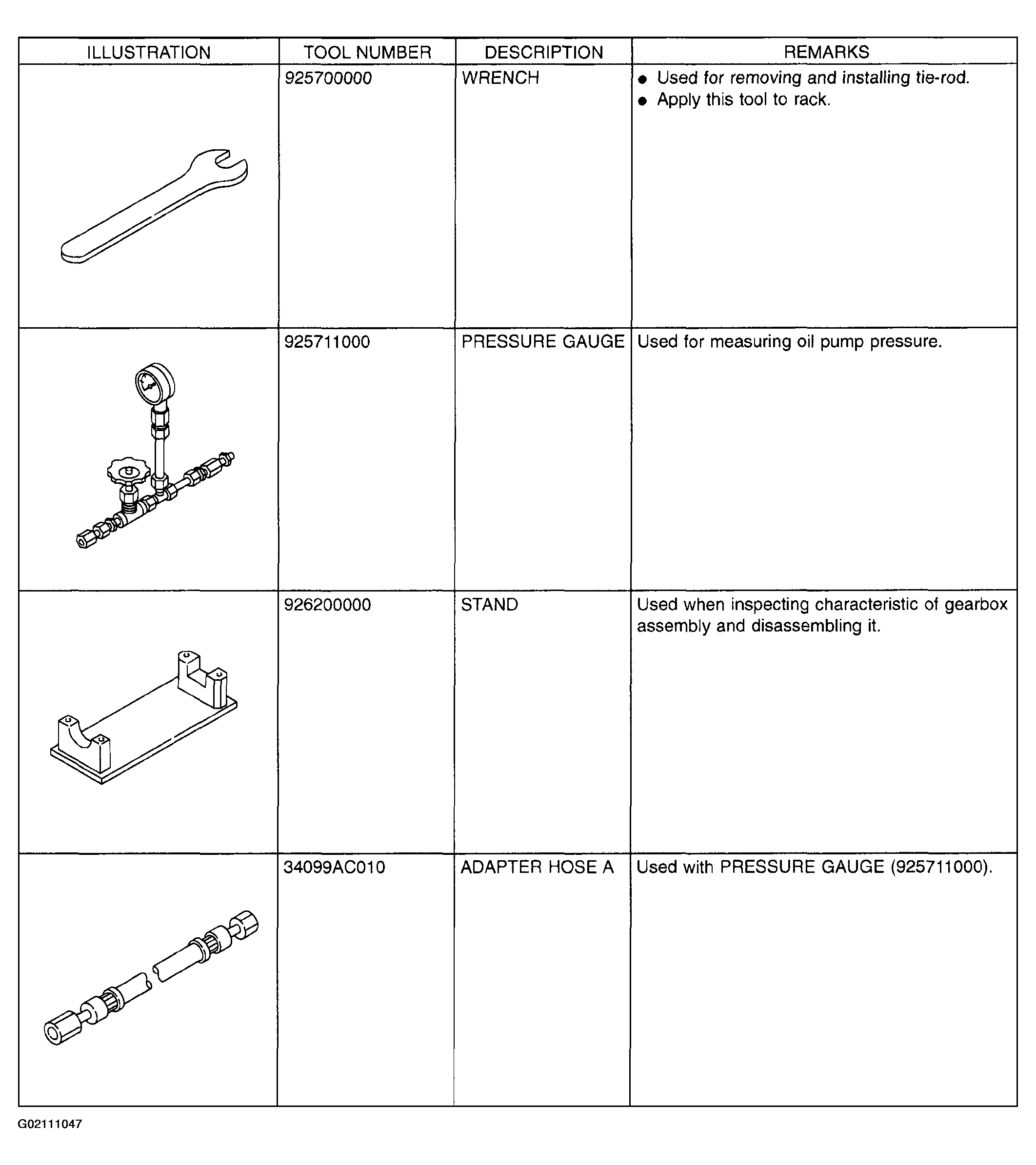

Fig 1: Identifying Special Tools (1 Of 5)
G02111047

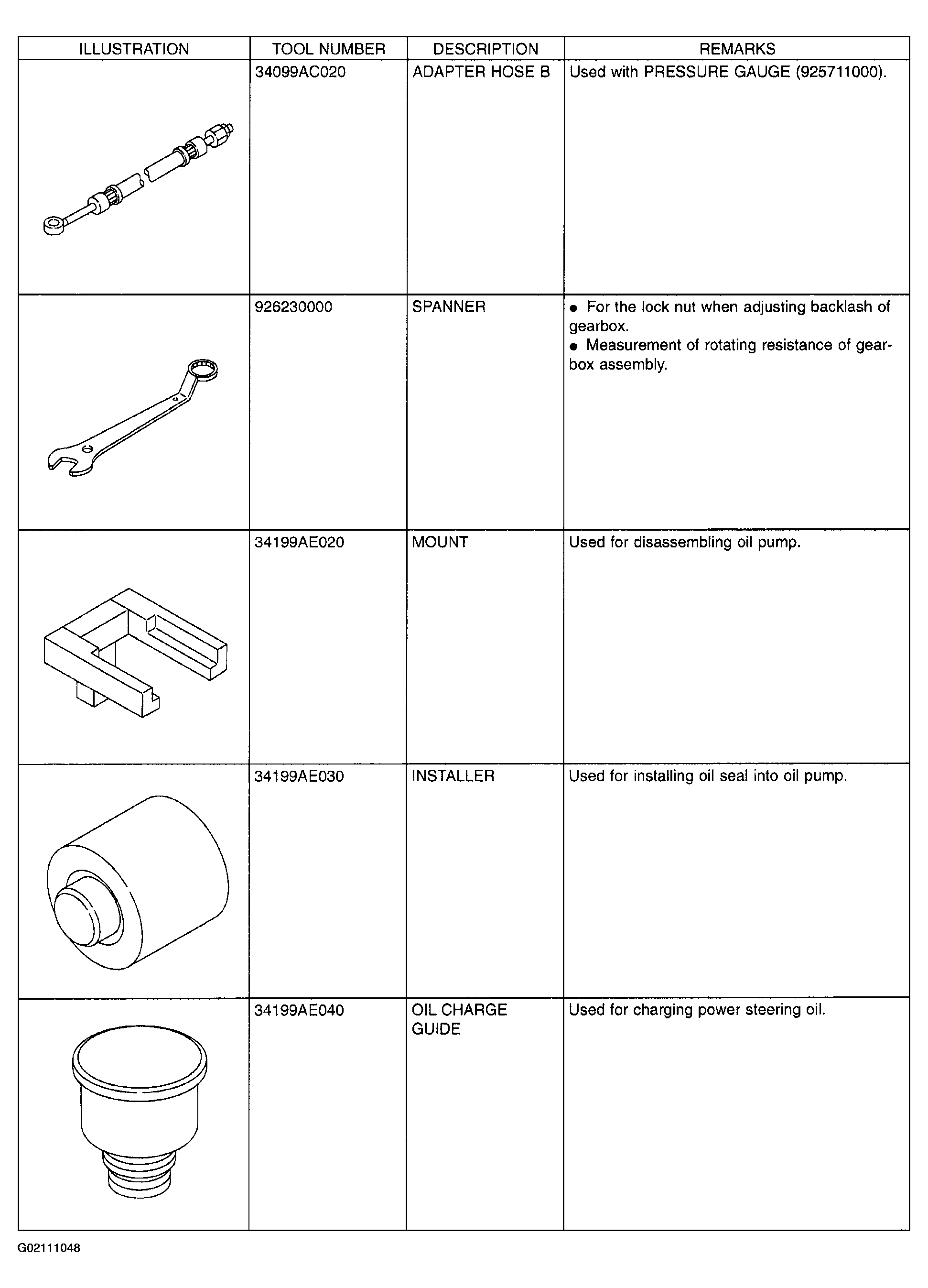

Fig 2: Identifying Special Tools (2 Of 5)
G02111048

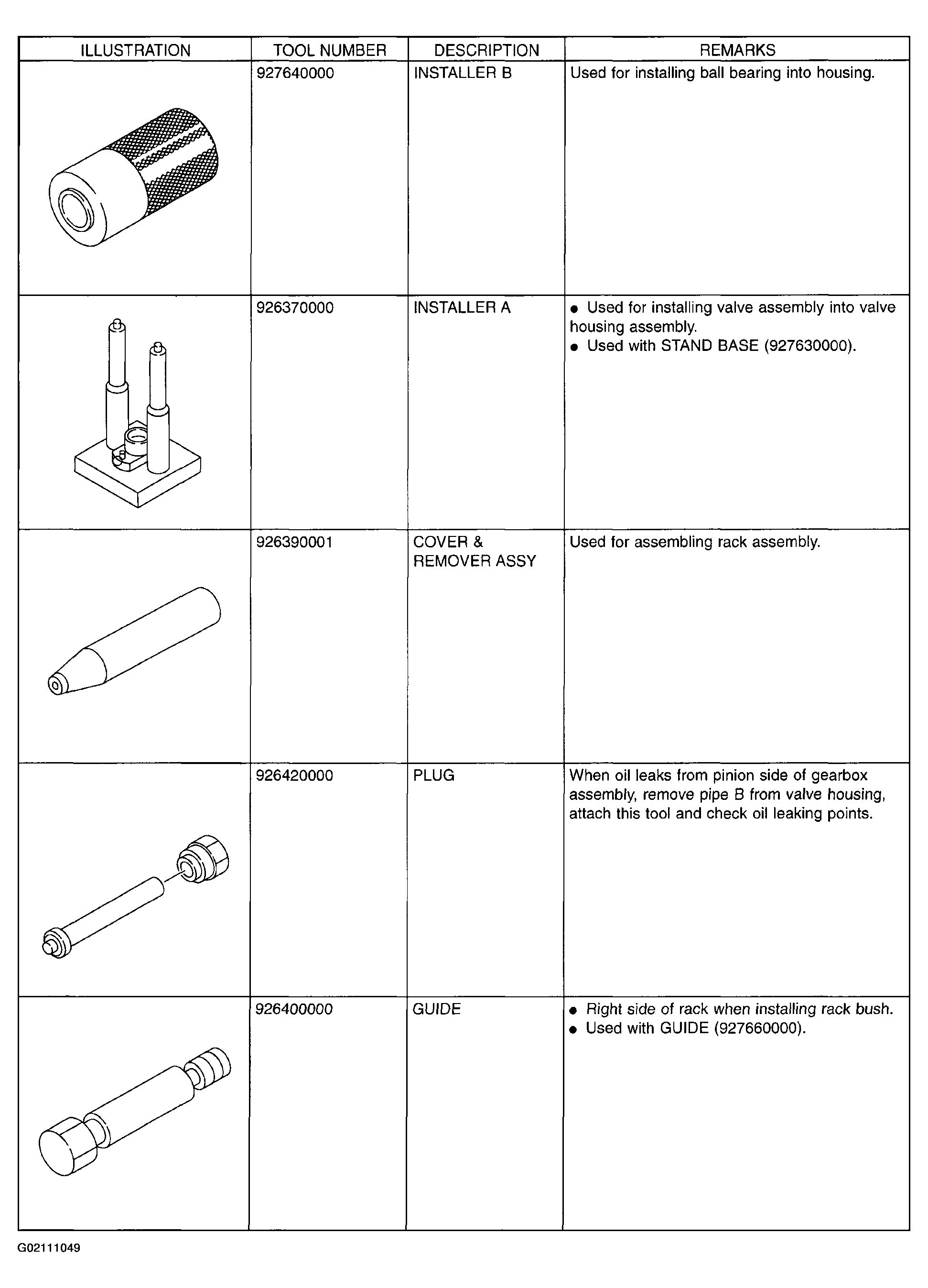

Fig 3: Identifying Special Tools (3 Of 5)
G02111049

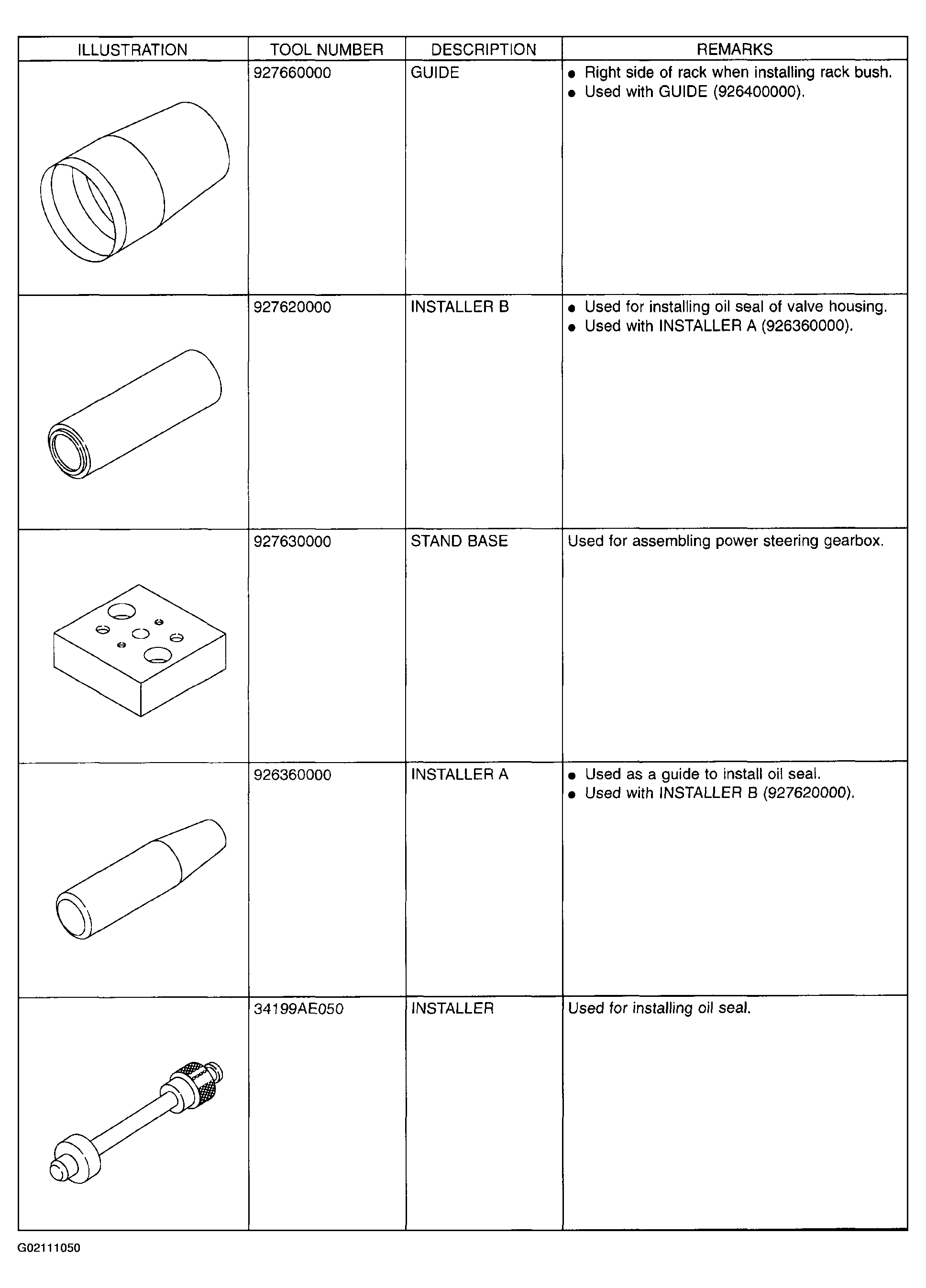

Fig 4: Identifying Special Tools (4 Of 5)
G02111050

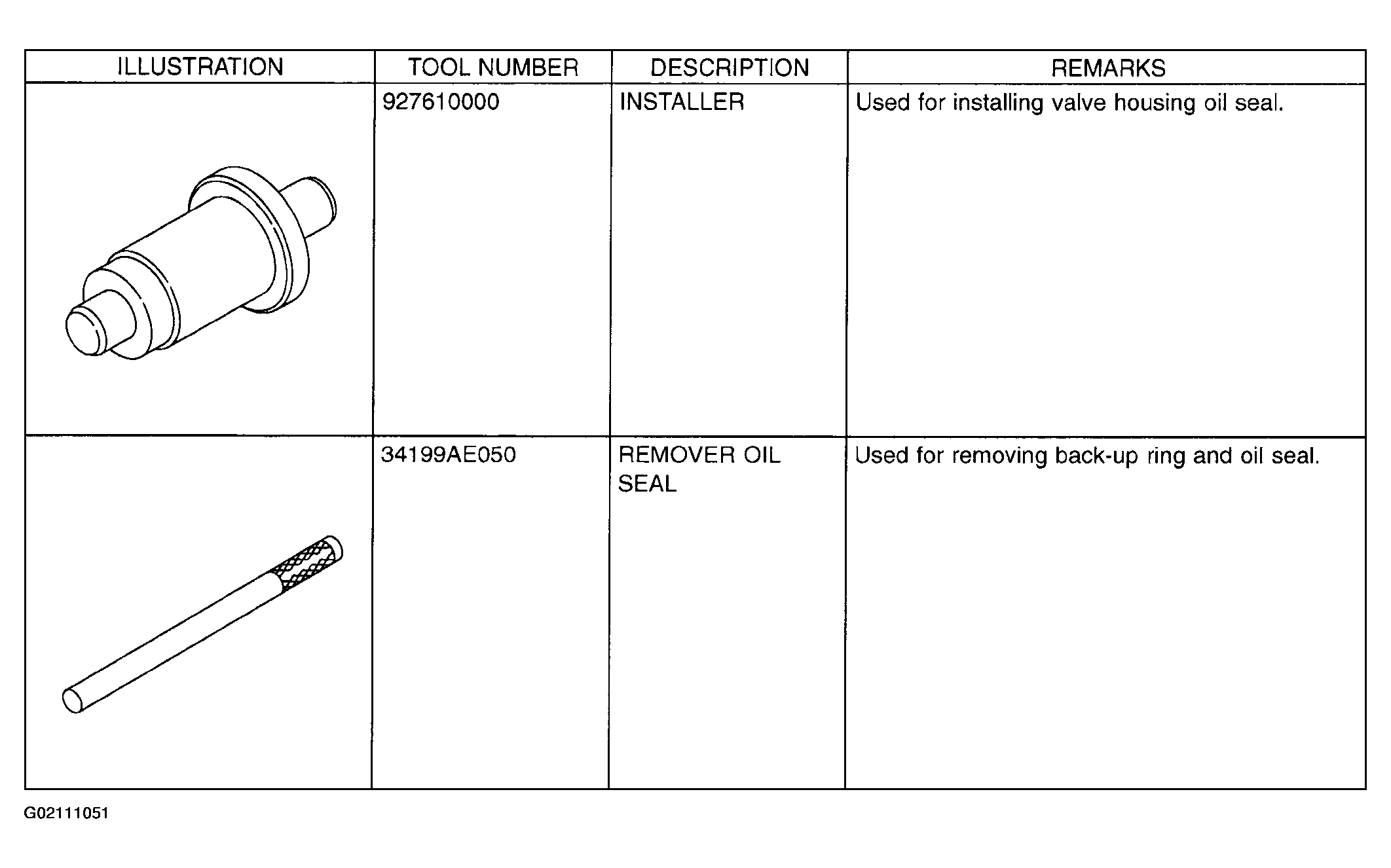

Fig 5: Identifying Special Tools (5 Of 5)
G02111051
