Oil Pump

NOTE: The illustration for 2.5 I model is shown below. (Not shown for 3.0 l model because it cannot be disassembled.)

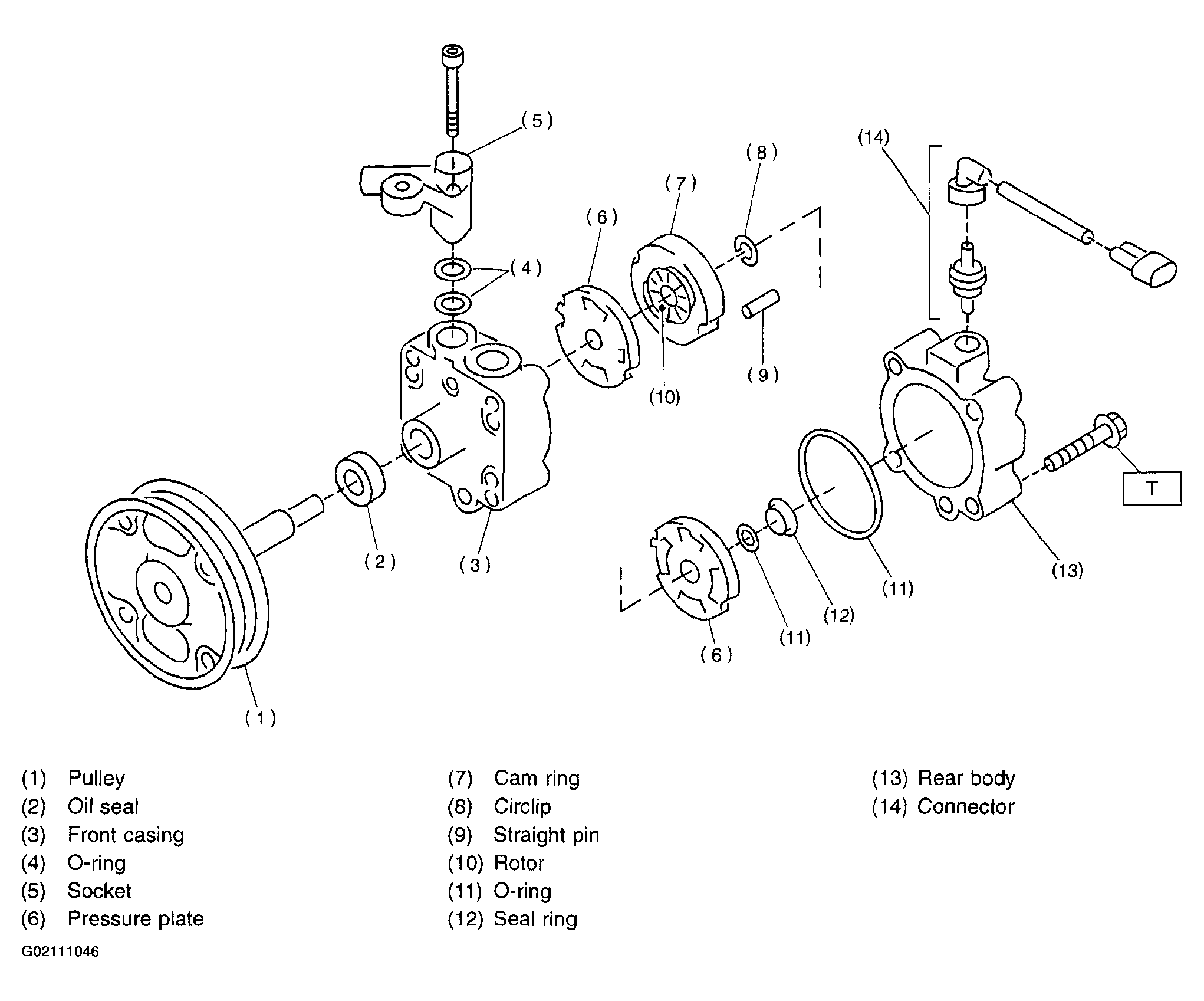

Fig 1: Exploded View Of Oil Pump
G02111046

Tightening torque: N.m (kgf-m, ft-lb)

  1. T:  27.5 (2.8, 20.3)
