Fuel Injectors/Intake Manifold

WARNING: This page is about a different variant/trim than selected.

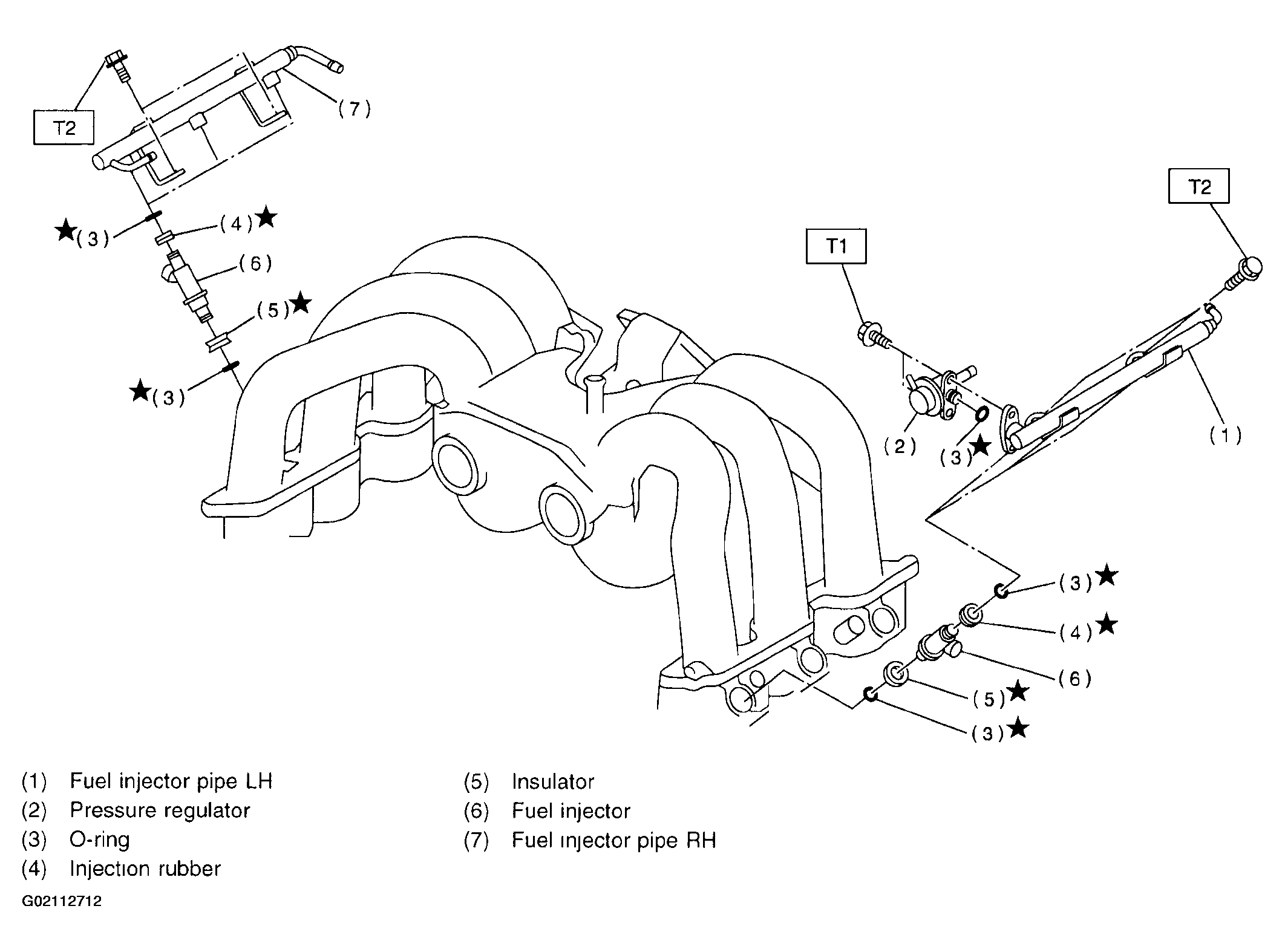

Fig 1: Exploded View Of Fuel Injectors/Intake Manifold
G02112712

Tightening torque:  N-m (kgf-m, ft-lb)

T1:  6.4 (0.65, 4.7)

T2:  19 (1.9, 14)
