Clutch System

WARNING: This page is about a different variant/trim than selected.

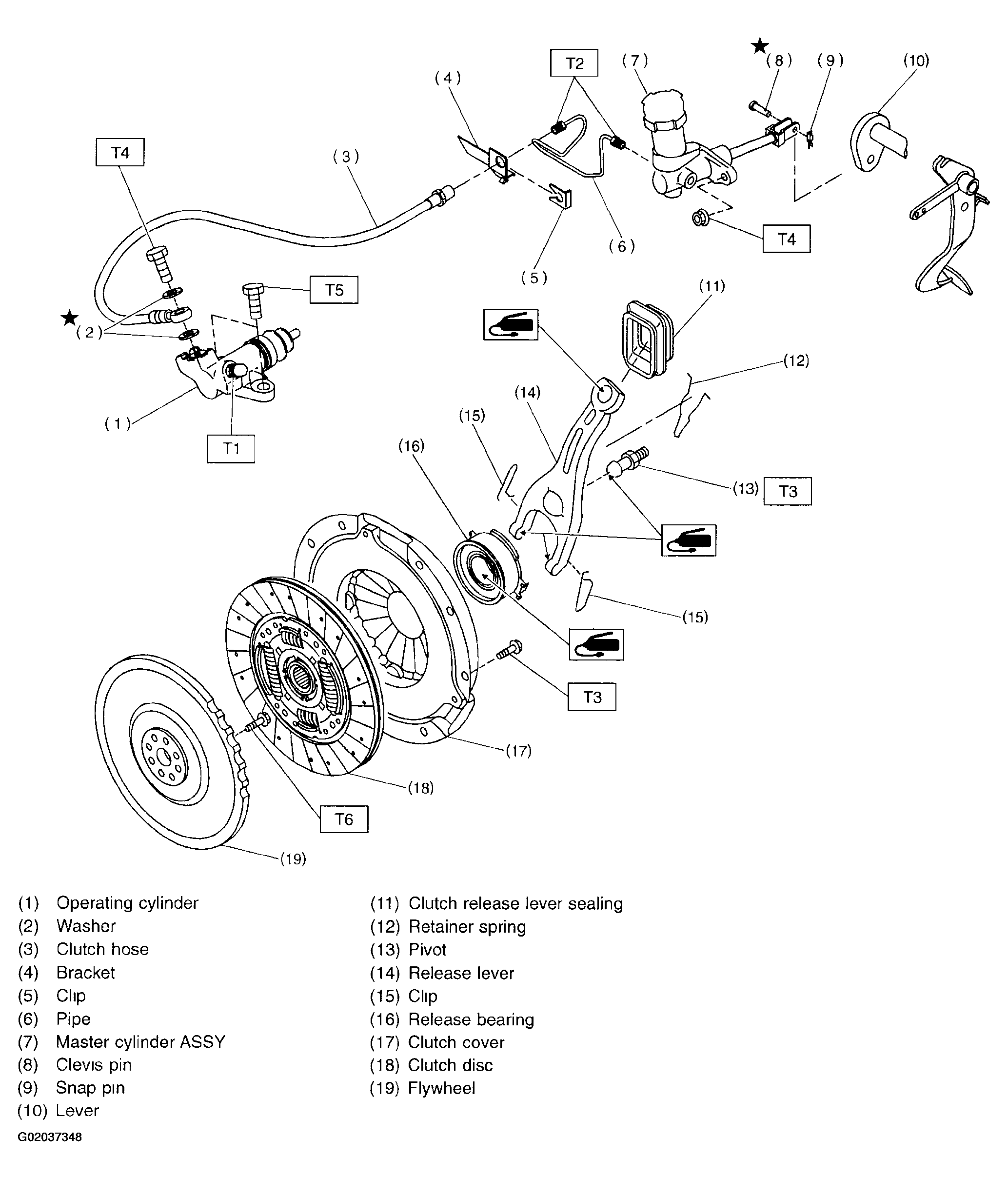

Fig 1: Exploded View Of Clutch System
G02037348

Tightening torque: N-m (kgf-m, ft-lb)

  1. T1:  8 (0.8, 5.8)
  2. T2:  15 (1.5, 11.0)
  3. T3:  15.7 (1.6, 11.6)
  4. T4:  18 (1.8, 13.0)
  5. T5:  37 (3.8, 27.5)
  6. T6:  72 (7.3, 52.8)
