Transfer Case and Extension Case Assembly: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the manual transmission assembly from vehicle. See Manual Transmission Assembly  .
  2. Remove back-up light switch and neutral position switch. See Switches and Harness  .
  3. Remove transfer case with extension case assembly.

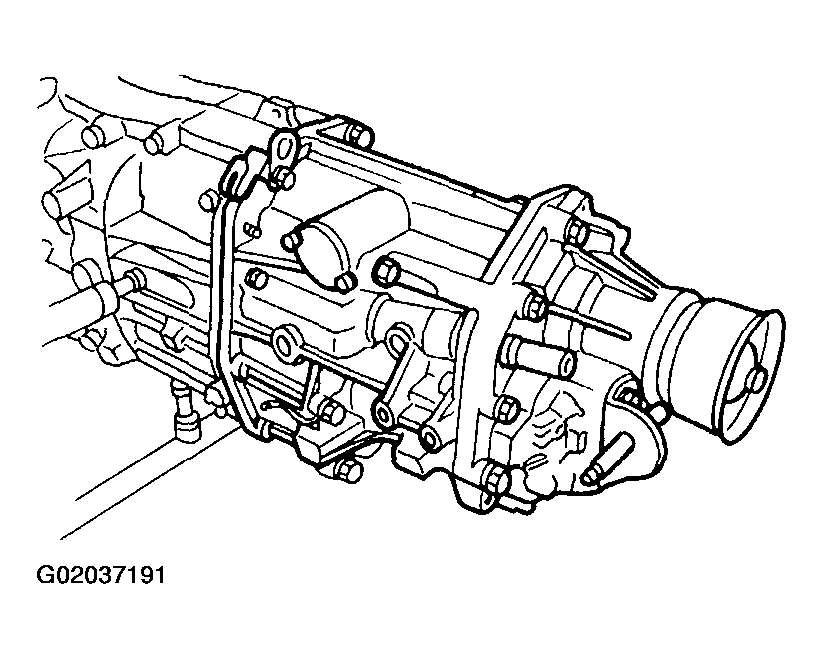

    Fig 1: Removing Transfer Case With Extension Case Assembly
    G02037191
  4. Remove shifter arm.
  5. Remove extension case assembly.

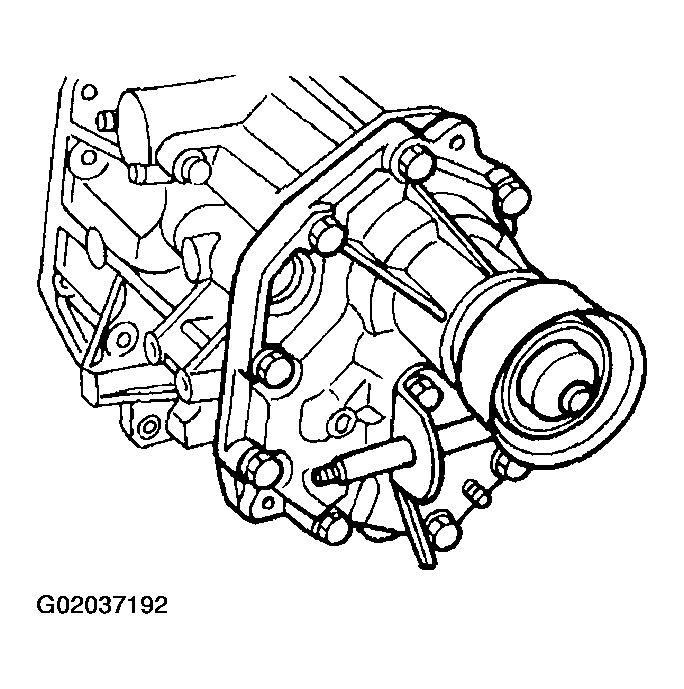

    Fig 2: Removing Extension Case Assembly
    G02037192
