Drive Pinion Assembly

WARNING: This page is about a different variant/trim than selected.

Preload adjustment of thrust bearing starting torque

0.3-0.8N-m (0.03-0.08 kg-m, 0.7-0.6 ft-lbs)

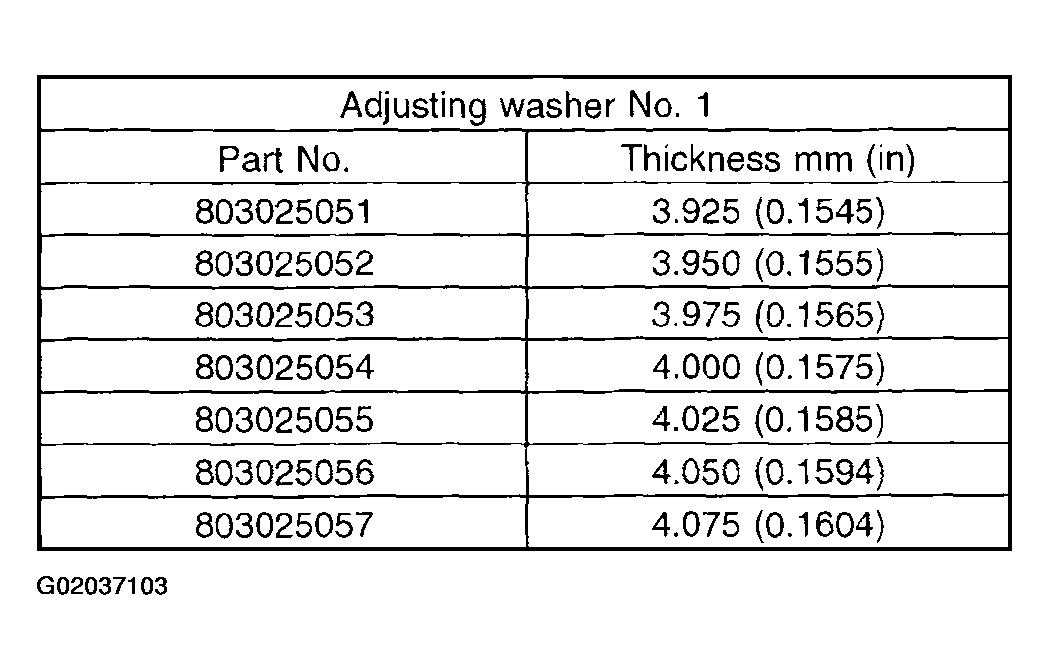

Fig 1: Adjusting Washer No. 1 Selection Chart

Fig 2: Adjusting Washer No. 2 Selection Chart
