Universal Joint: Inspection

Clean the disassembled parts with a cloth, and check for wear, damage, or any other faults. If necessary, repair or replace faulty parts.

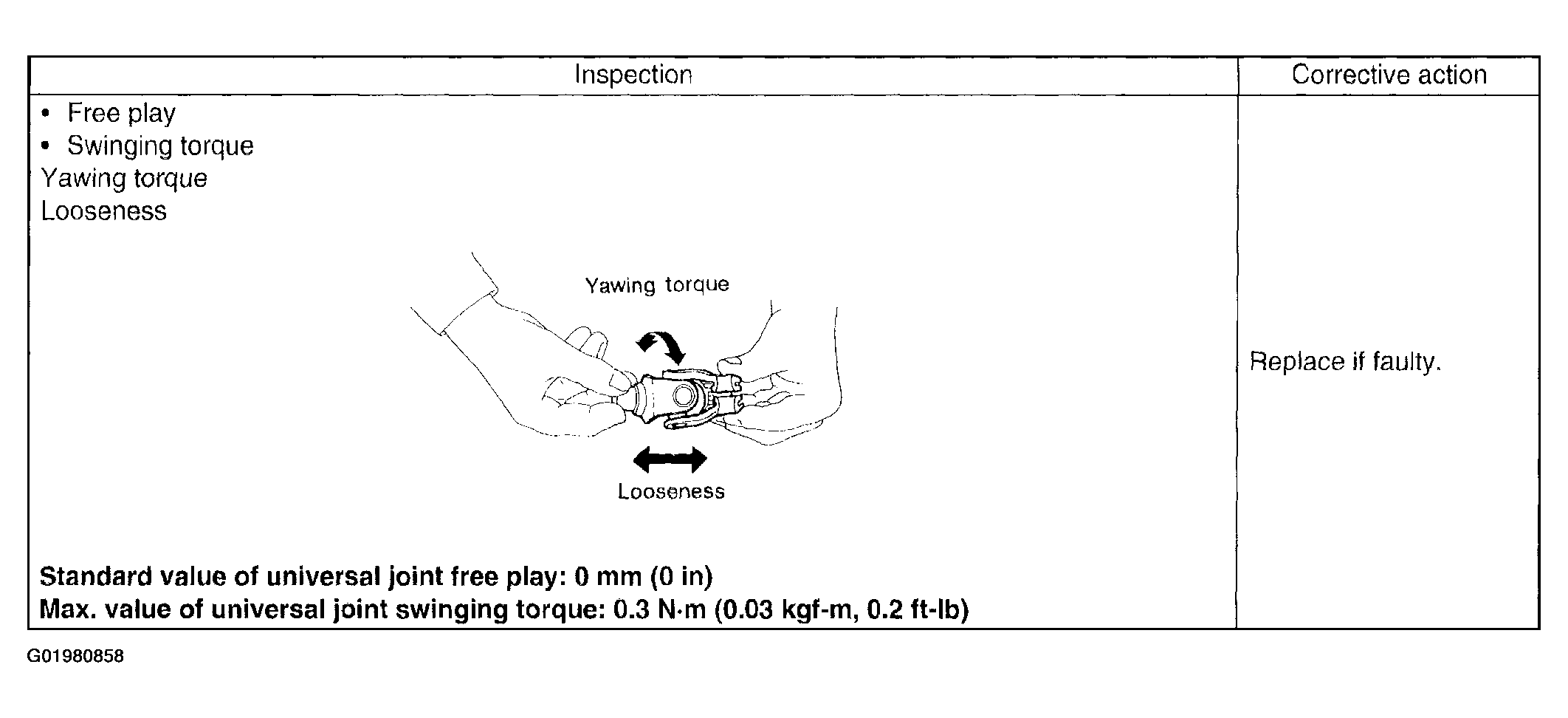

Fig 1: Inspecting Universal Joint

Courtesy of SUBARU OF AMERICA, INC.

Measurement of folding torque of universal joint is as shown in the figures.

1. Service limit:
   1. Maximum load;  7.3 N (0.74 kgf, 1.64 lb) or less

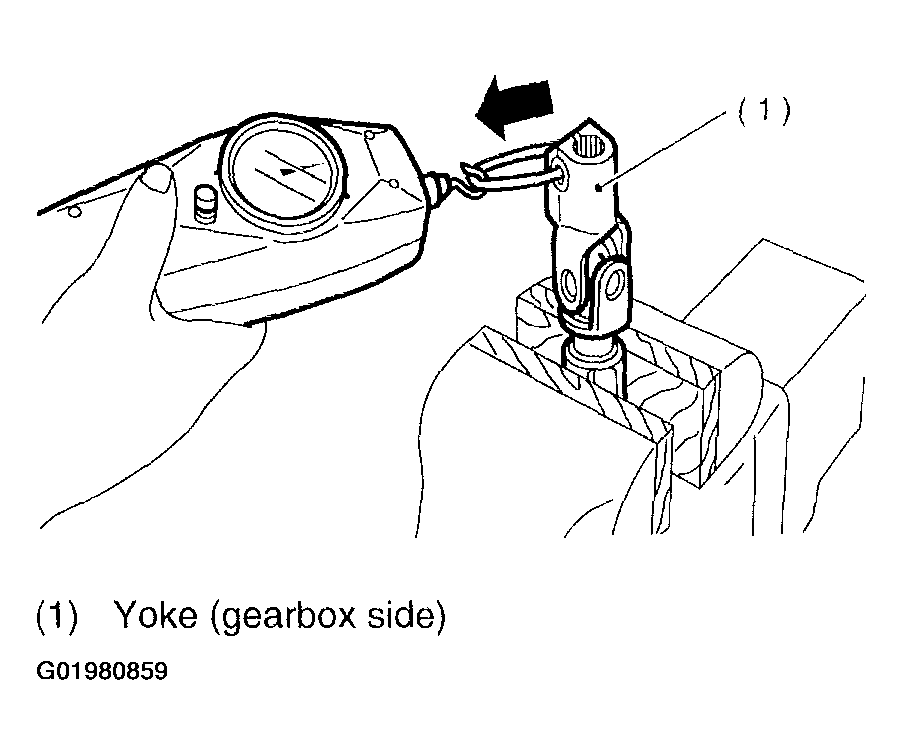

   Fig 2: Measuring Folding Torque Of Universal Joint (1 Of 4)

   Courtesy of SUBARU OF AMERICA, INC.

1. Service limit:
   1. Maximum load;  7.3 N (0.74 kgf, 1.64 lb) or less
   Fig 3: Measuring Folding Torque Of Universal Joint (2 Of 4)

   Courtesy of SUBARU OF AMERICA, INC.

1. Service limit:
   1. Maximum load;  7.3 N (0.74 kgf, 1.64 lb) or less
   Fig 4: Measuring Folding Torque Of Universal Joint (3 Of 4)

   Courtesy of SUBARU OF AMERICA, INC.

1. Service limit:
   1. Maximum load;  7.3 N (0.74 kgf, 1.64 lb) or less
   Fig 5: Measuring Folding Torque Of Universal Joint (4 Of 4)

   Courtesy of SUBARU OF AMERICA, INC.
