Master Cylinder: Installation

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the master cylinder to body, and install the clutch pipe to master cylinder.
    CAUTION: Check that the pipe is routed properly.

    Tightening torque:

    1. T1:  15 N.m (1.5 kgf-m, 10.8 ft-lb)
    2. T2:  18 N.m (1.8 kgf-m, 13.0 ft-lb)

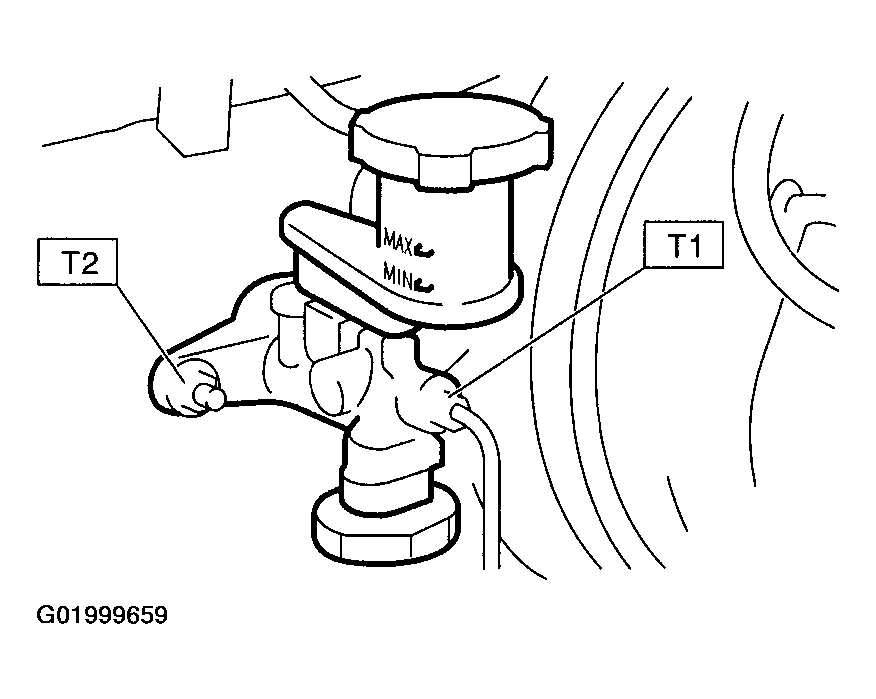

    Fig 1: Installing Master Cylinder To Body
    G01999659Courtesy of SUBARU OF AMERICA, INC.
  2. Connect the push rod of master cylinder to clutch pedal, and install the clevis pin and snap pin.
    NOTE: Apply grease to the clevis pin.
    Fig 2: Connecting Push Rod Of Master Cylinder To Clutch Pedal
    G01999660Courtesy of SUBARU OF AMERICA, INC.
  3. After bleeding air from the system, ensure that the clutch operates properly. See CLUTCH FLUID AIR BLEEDING  .
  4. Install the air cleaner case and air intake duct (Non-turbo model). See INSTALLATION  , Air Cleaner Case and INSTALLATION  , Air Intake Duct.
  5. Install the intercooler (Turbo model). See INSTALLATION  , Intercooler.
