Non-Turbo Model

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

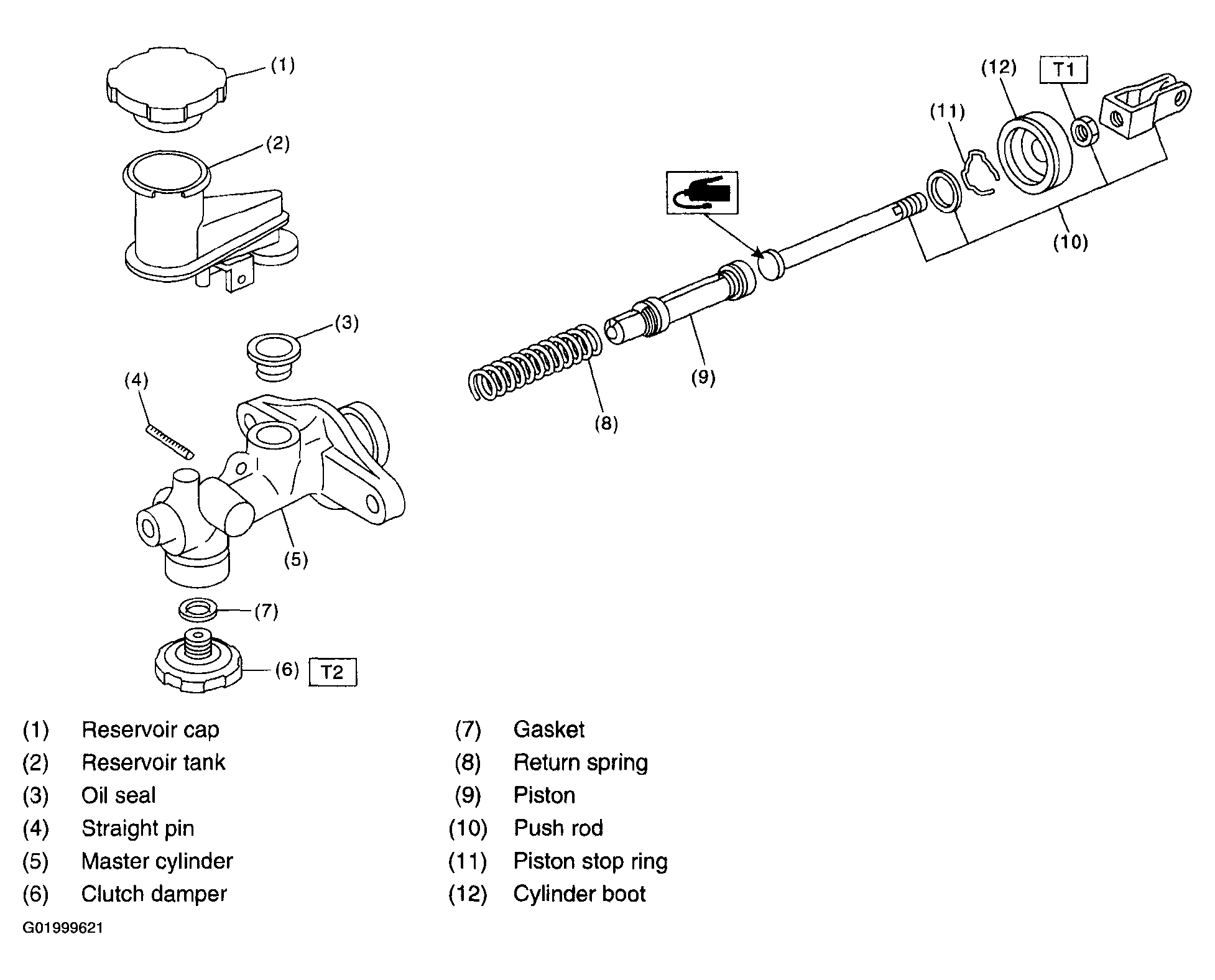

Fig 1: Master Cylinder (Non-Turbo Model)
G01999621Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

  1. T1:  10 (1.0, 7)
  2. T2:  46.6 (4.75, 34.4)
