Electrical Components Location: Location: Sensor

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

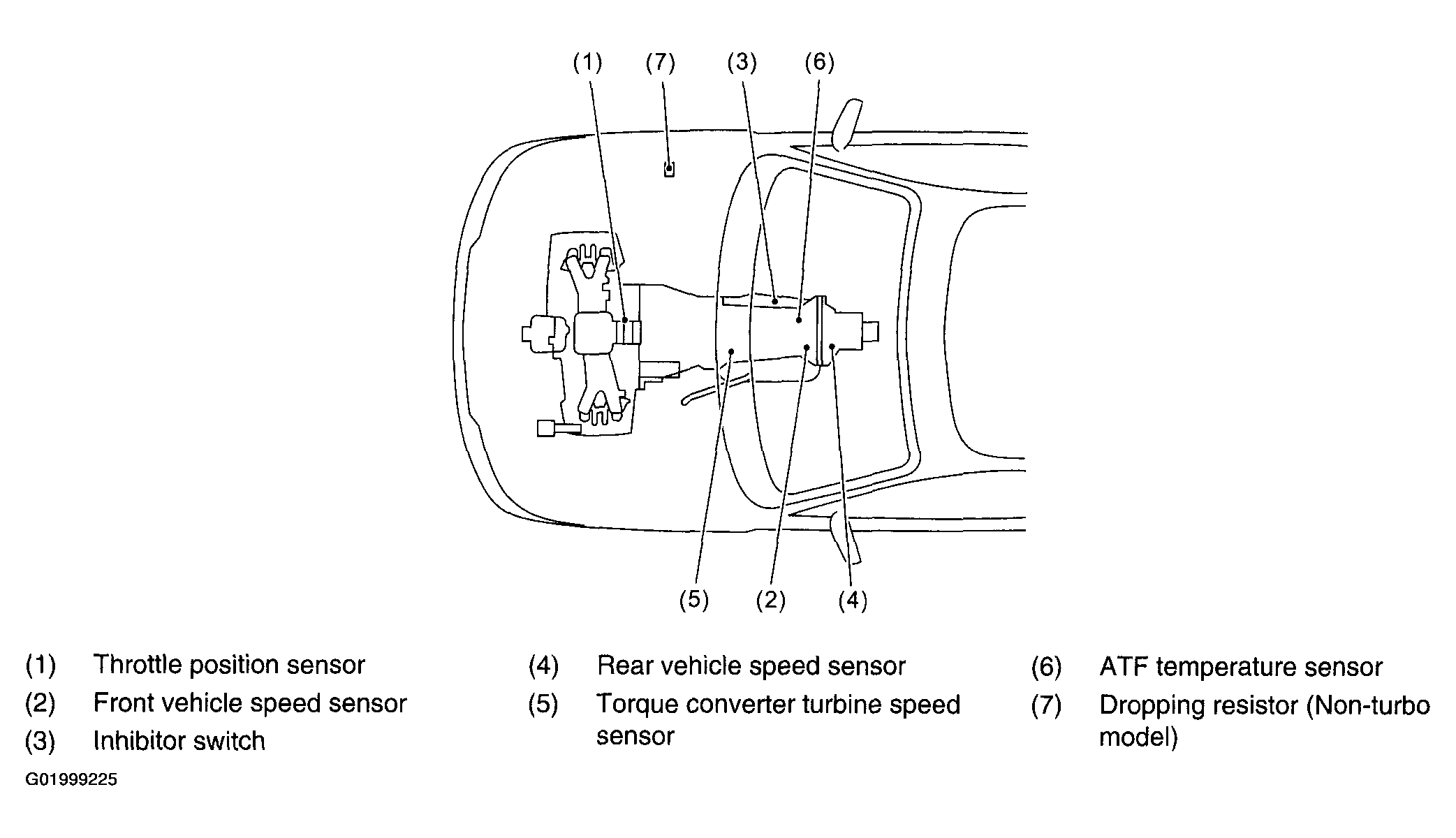

Fig 1: Identifying Sensors (1 Of 2)
G01999225Courtesy of SUBARU OF AMERICA, INC.

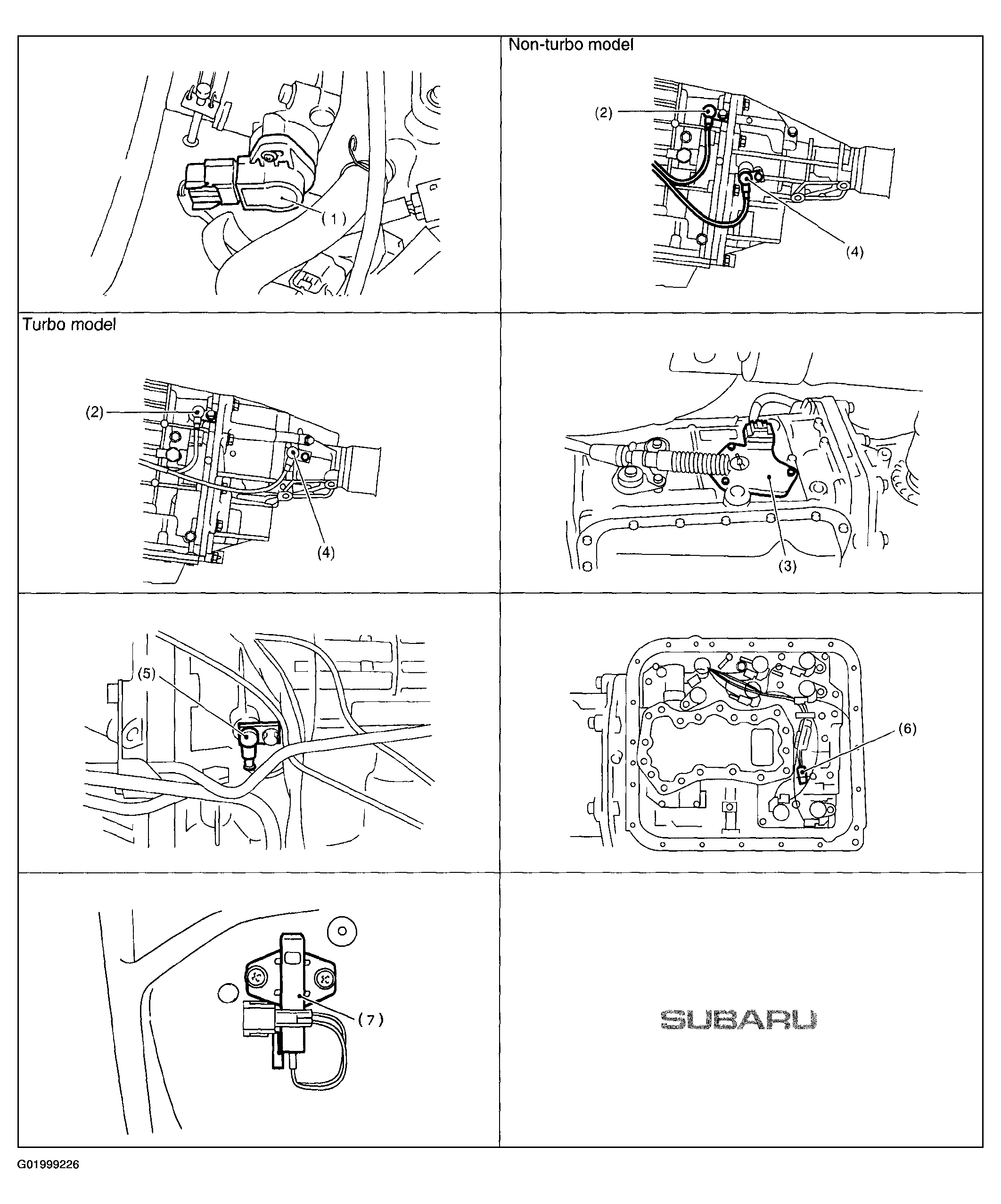

Fig 2: Identifying Sensors (2 Of 2)
G01999226Courtesy of SUBARU OF AMERICA, INC.
