Diagnostic Procedure:

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

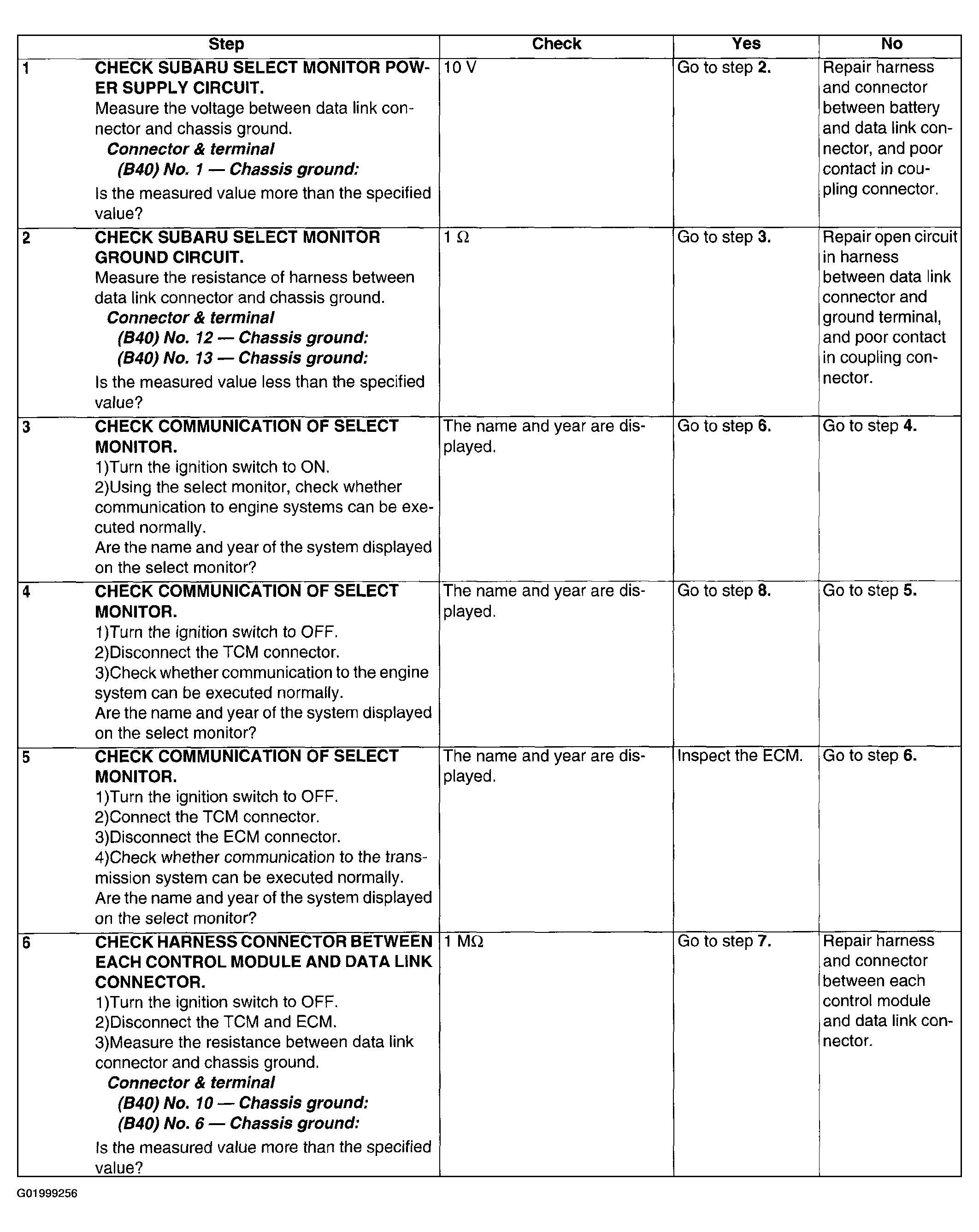

Fig 1: Diagnostic Procedure For Select Monitor Communication (1 Of 2)
G01999256Courtesy of SUBARU OF AMERICA, INC.

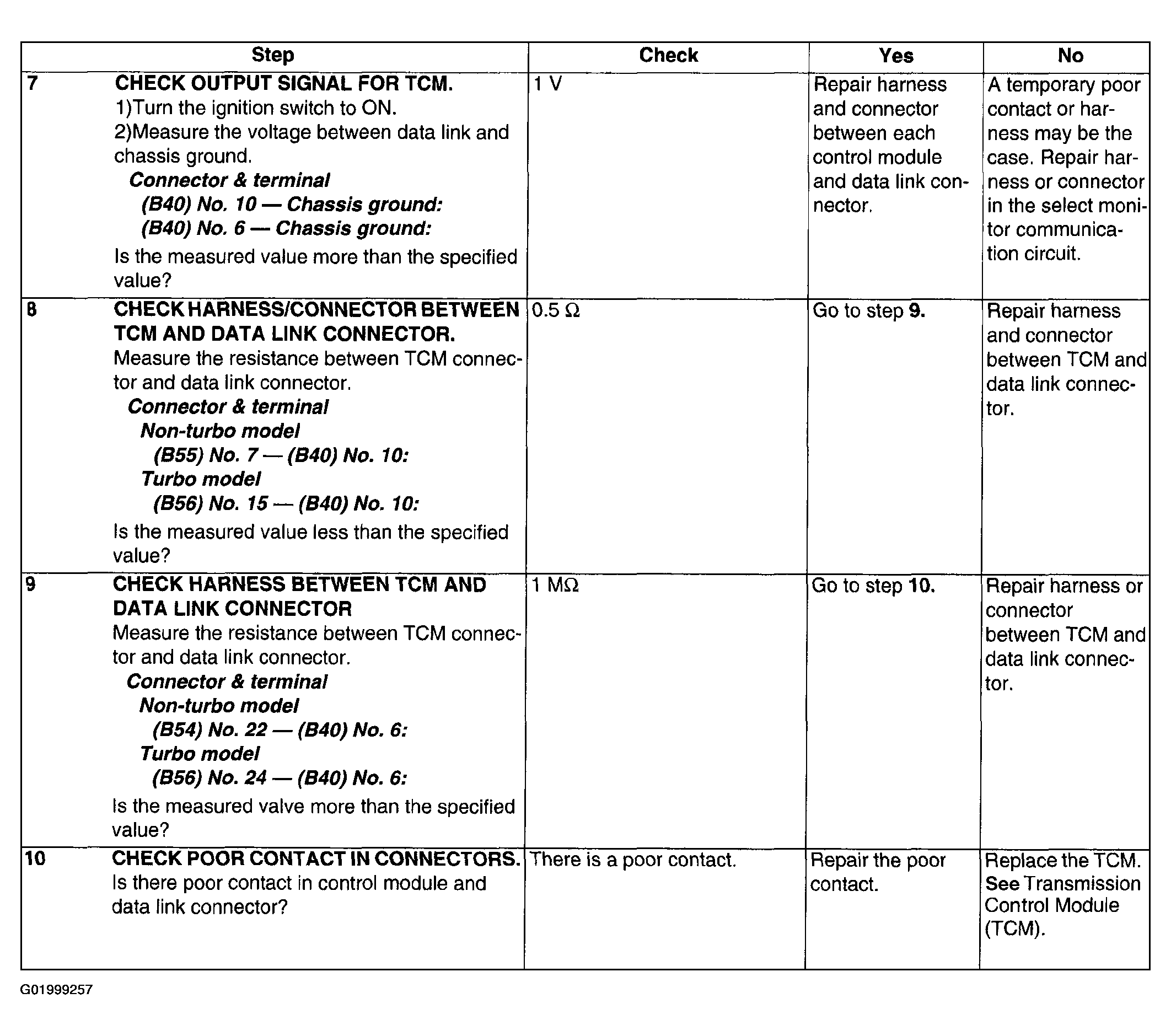

Fig 2: Diagnostic Procedure For Select Monitor Communication (2 Of 2)
G01999257Courtesy of SUBARU OF AMERICA, INC.
