Pitching Stopper

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Install the pitching stopper.
Tightening torque:
1. T1: 50 N.m (5.1 kgf-m, 37 ft-lb)
2. T2: 58 N.m (5.9 kgf-m, 43 ft-lb)

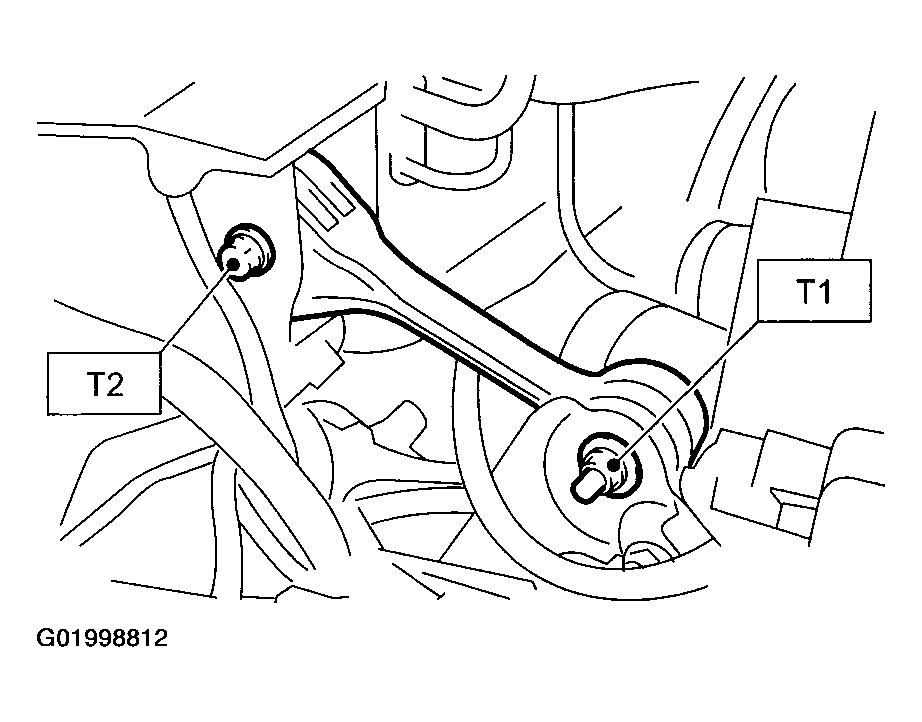

Fig 1: Installing Pitching Stopper
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake duct and air cleaner case (Non-turbo model). See INSTALLATION , Air Intake Duct and INSTALLATION , Air Cleaner Case.
Install the intercooler (Turbo model). See INSTALLATION , Intercooler.
