Transfer Clutch: Installation

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Select the thrust needle bearing.
Install the transfer clutch assembly to the case.

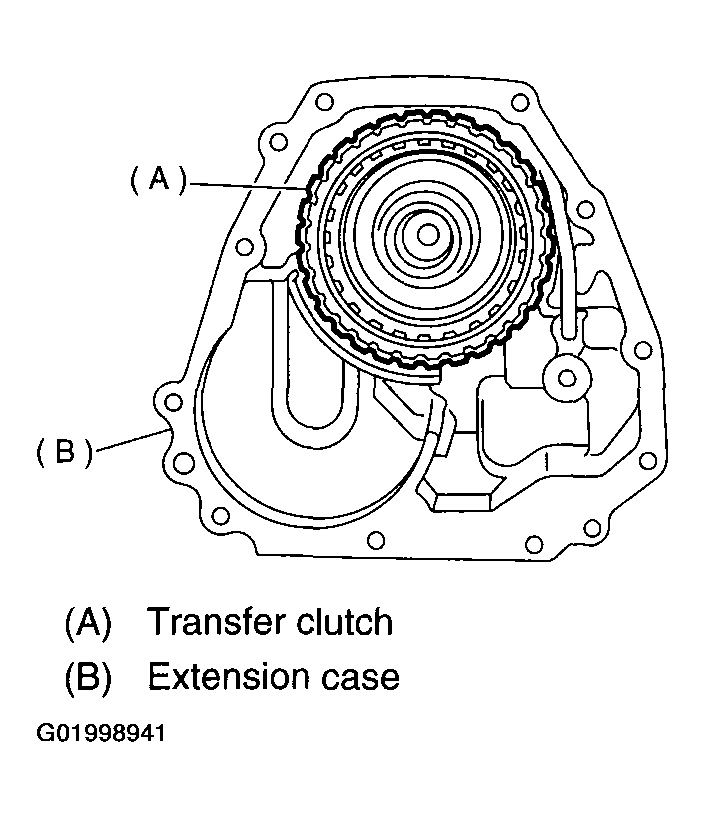

Fig 1: Installing Transfer Clutch Assembly To Case
Courtesy of SUBARU OF AMERICA, INC.
Tighten bolts to secure the case.
1. Tightening torque: 25 N.m (2.5 kgf-m, 18.1 ft-lb)

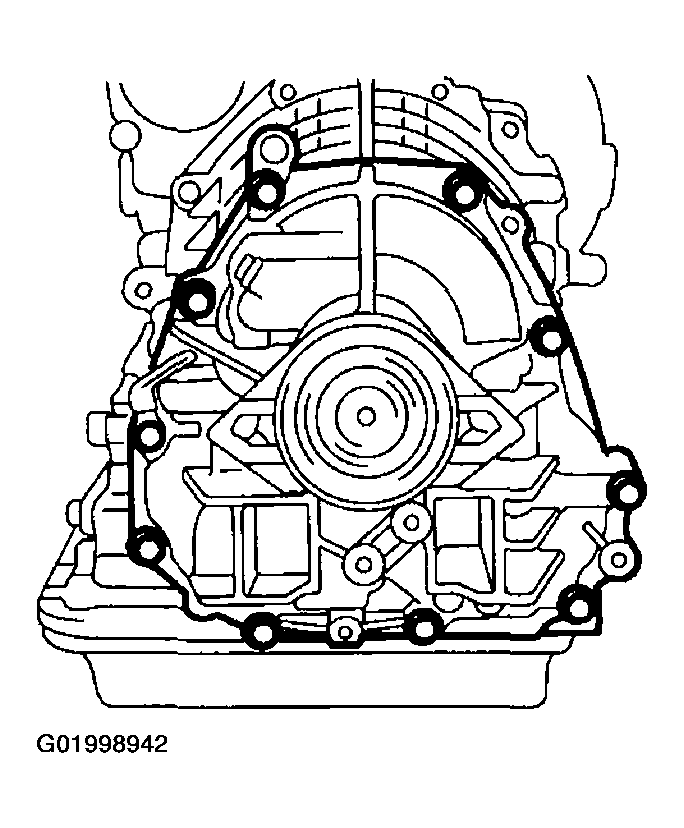

Fig 2: Tightening Bolts To Secure Case
Courtesy of SUBARU OF AMERICA, INC.
Install the transmission assembly to the vehicle. See INSTALLATION , Automatic Transmission Assembly.
