Torque Converter Clutch Assembly: Installation

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the clip to torque converter clutch case.
  2. Install the oil pump shaft to the torque converter clutch, and then check the clip fits securely in its groove.
  3. Insert the input shaft while turning lightly by hand.
    1. Normal protrusion A:  50 - 55 mm (1.97 - 2.17 in

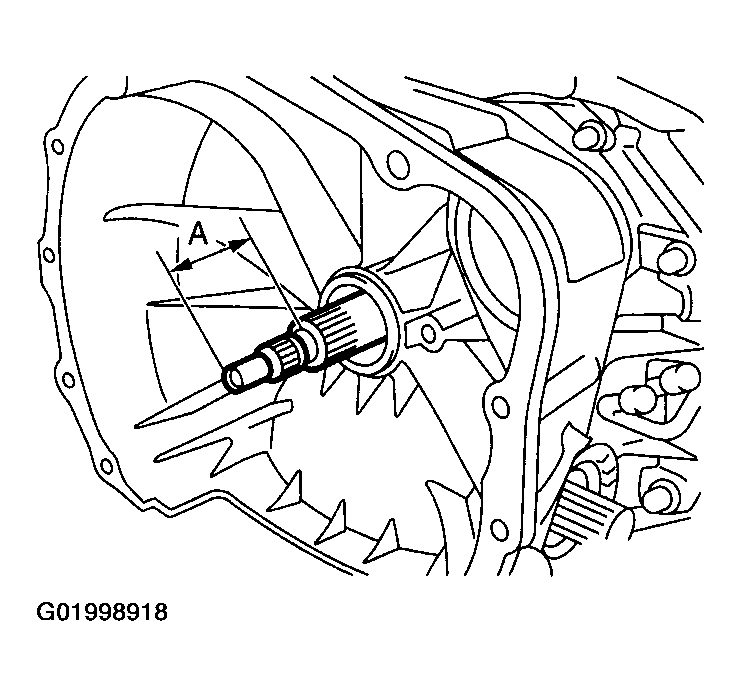

    Fig 1: Installing Input Shaft
    G01998918Courtesy of SUBARU OF AMERICA, INC.
  4. Holding the torque converter clutch assembly by hand, carefully install it to the torque converter clutch case. Be careful not to damage the bushing. Also avoid undue contact between the oil pump shaft bushing and stator shaft portion of the oil pump cover.
  5. Rotate the shaft lightly by hand to engage the splines securely.
    1. Dimension A:  2.7 - 2.9 mm (0.106 - 0.114 in)
    Fig 2: Identifying Dimension A
    G01998919Courtesy of SUBARU OF AMERICA, INC.
  6. Install the transmission assembly to the vehicle. See INSTALLATION , Automatic Transmission Assembly.
