MPT Model

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission assembly from the vehicle. See REMOVAL , Automatic Transmission Assembly.
  2. Remove rear wheel speed sensor, and separate the extension case from transmission case. See REMOVAL , Extension Case.
  3. Set the range select lever to "P".
  4. Straighten the staked portion, and remove the lock nut.
    Fig 1: Straightening Staked Portion & Removing Lock Nut
    G01998975Courtesy of SUBARU OF AMERICA, INC.
  5. Using the ST1 and ST2, extract the reduction driven gear.

    ST1 499737000 PULLER

    ST2 899524100 PULLER SET

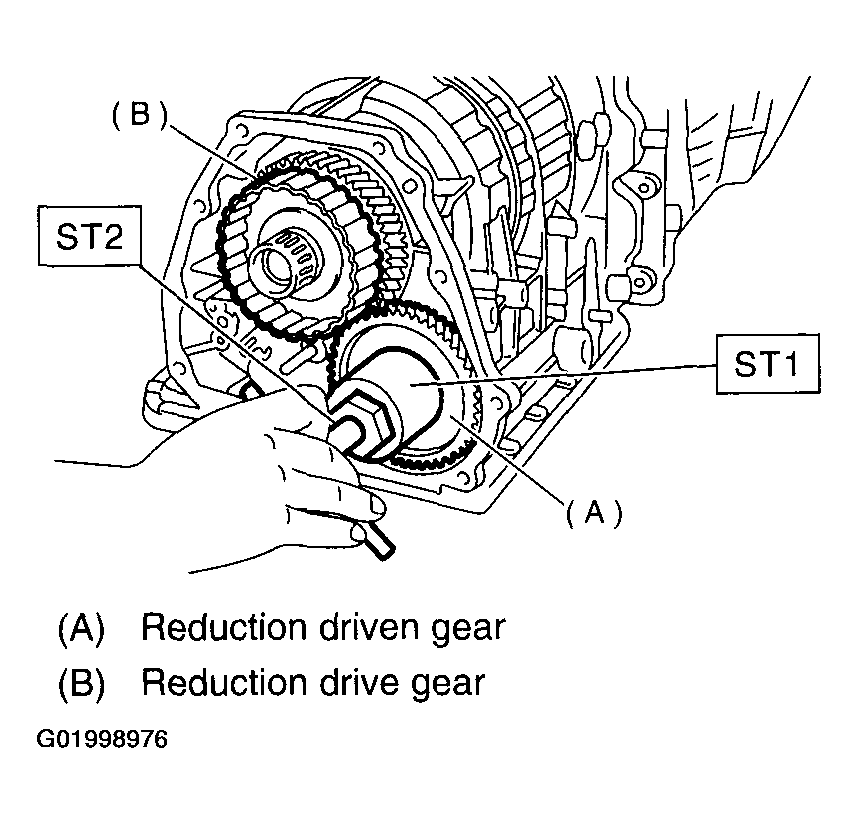

    Fig 2: Extracting Reduction Driven Gear Using ST1 & ST2
    G01998976Courtesy of SUBARU OF AMERICA, INC.
