VTD Model

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the range select lever to "P".
  2. Using a plastic hammer, install the reduction driven gear assembly.
  3. Using a plastic hammer, install the center differential.
  4. Install a new self locknut and washer.
    1. Tightening torque:  100 N.m (10.2 kgf-m, 73.8 ft-lb)

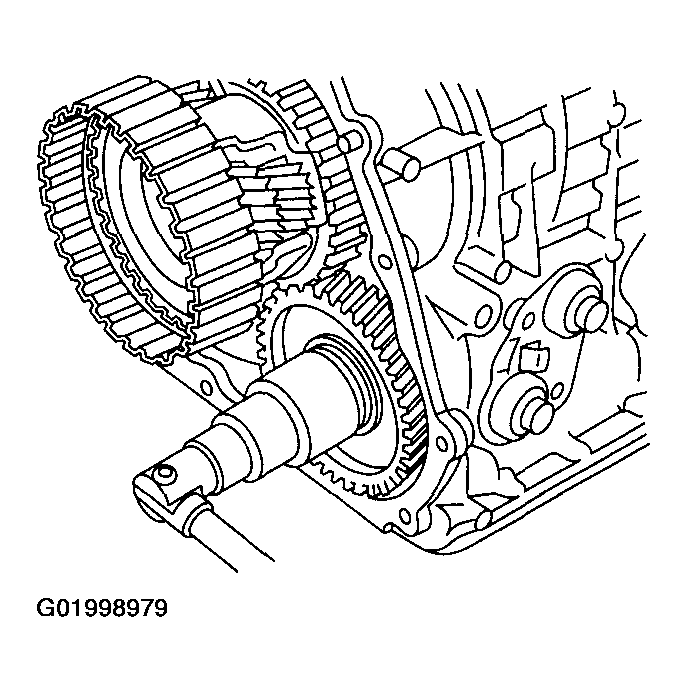

    Fig 1: Installing New Self Locknut & Washer
    G01998979Courtesy of SUBARU OF AMERICA, INC.
  5. After tightening, stake the lock nut securely.
  6. Insert the rear drive shaft assembly. See INSTALLATION , Rear Drive Shaft.
  7. Combine the transmission case with the extension case, and install rear wheel speed sensor. See INSTALLATION , Extension Case.
  8. Install the transmission assembly to the vehicle. See INSTALLATION , Automatic Transmission Assembly.
