Reduction Driven Gear: Disassembly

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove snap ring from reduction driven gear.
    Fig 1: Removing Snap Ring From Reduction Driven Gear
    G01998980Courtesy of SUBARU OF AMERICA, INC.
  2. Using ST, remove ball bearing from reduction driven gear.

    ST 498077600 REMOVER

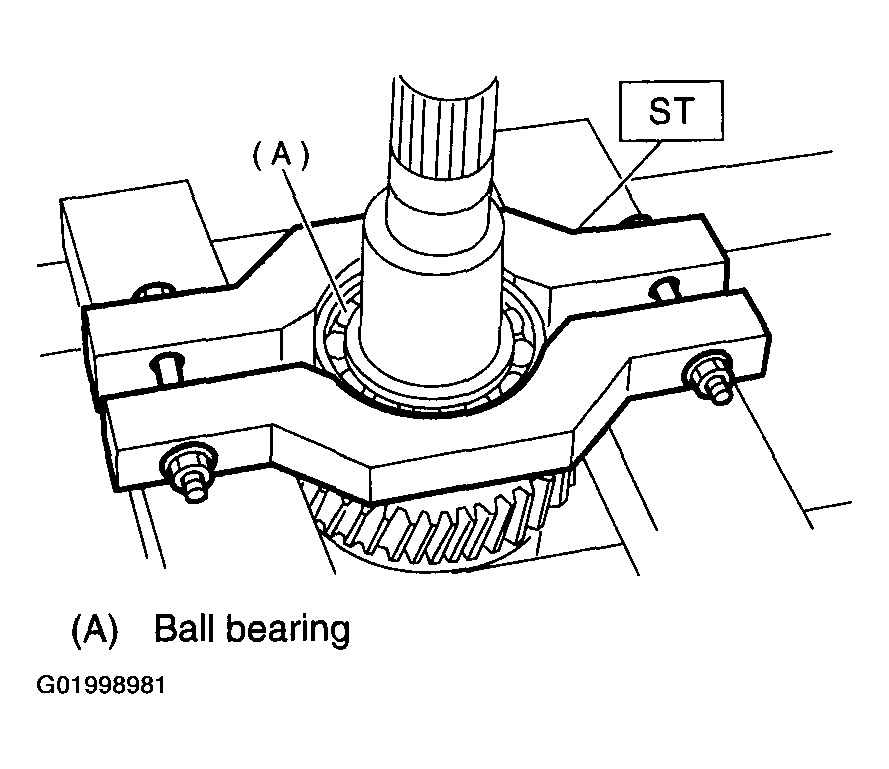

    Fig 2: Removing Ball Bearing From Reduction Driven Gear Using ST
    G01998981Courtesy of SUBARU OF AMERICA, INC.
