Oil Pump: Disassembly

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Remove four seal rings.

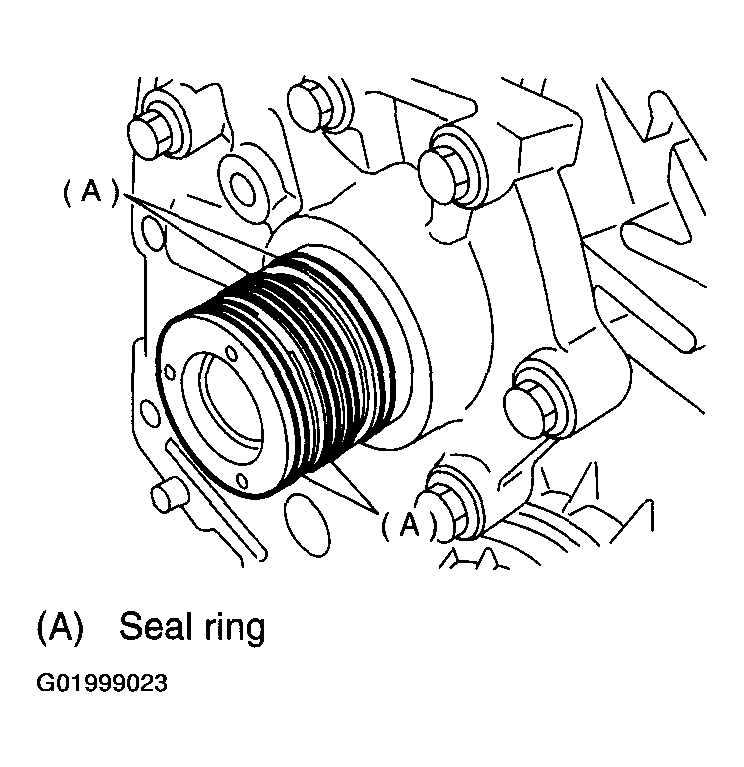

Fig 1: Removing Four Seal Rings
Courtesy of SUBARU OF AMERICA, INC.
Lightly tap the end of the stator shaft to remove the cover.

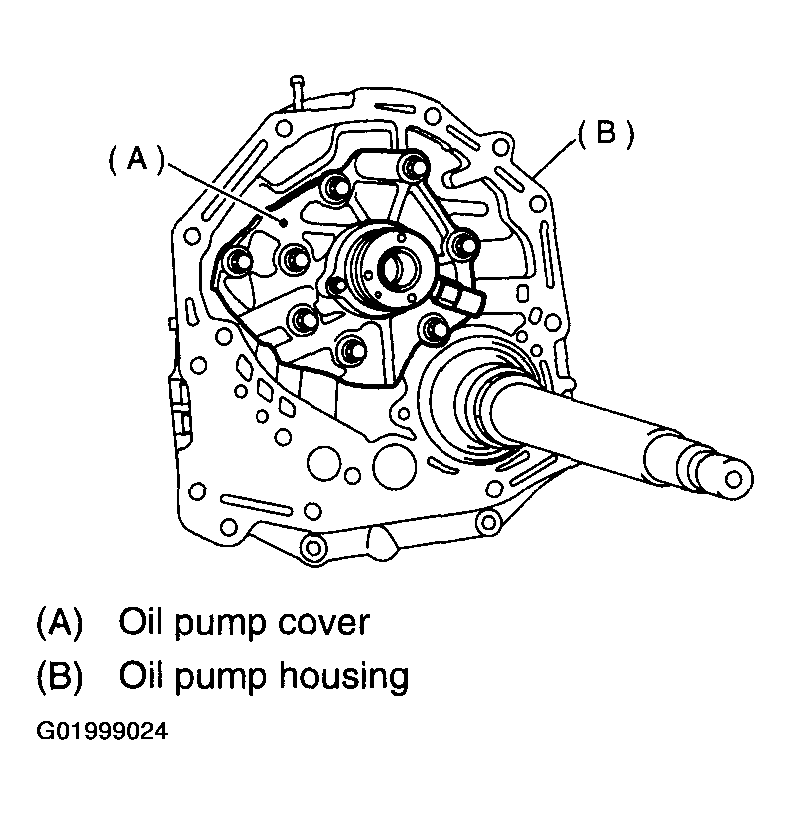

Fig 2: Removing Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the inner and outer rotor.

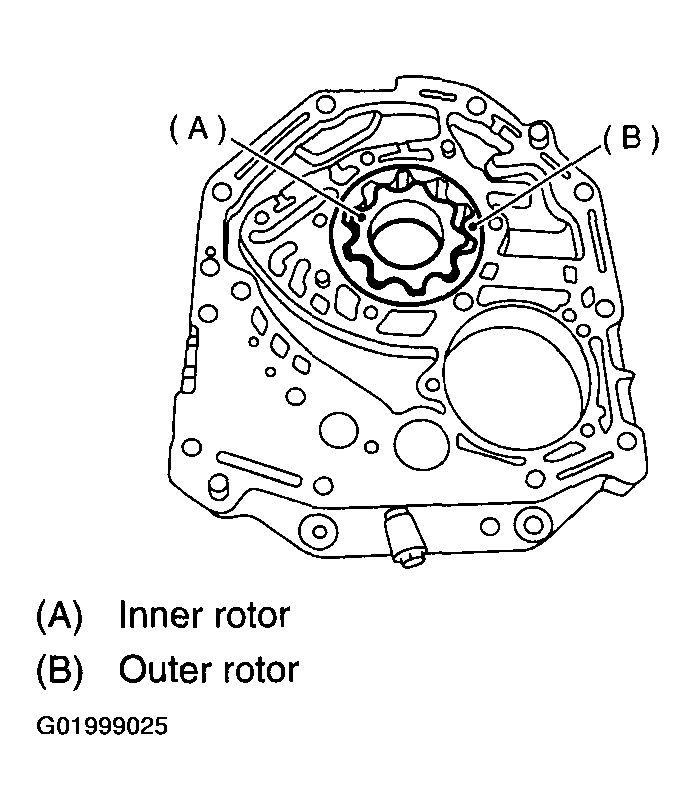

Fig 3: Removing Inner & Outer Rotor
Courtesy of SUBARU OF AMERICA, INC.
