Oil Pump: Assembly

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install oil pump rotor assembly to oil pump housing.

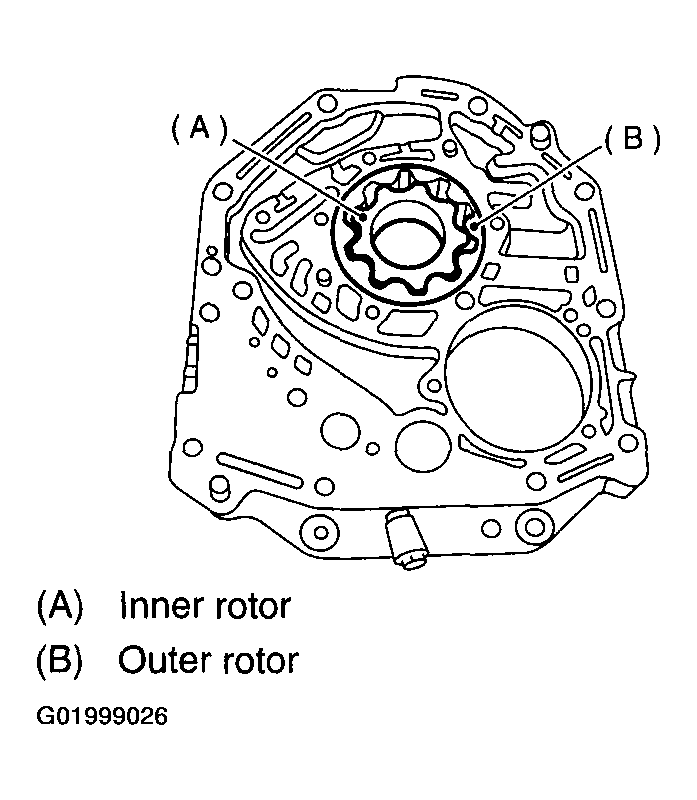

    Fig 1: Installing Oil Pump Rotor Assembly To Oil Pump Housing
    G01999026Courtesy of SUBARU OF AMERICA, INC.
  2. Align both pivots with the pivot holes of the cover, and install the oil pump cover being careful not to apply undue force to the pivots.
    1. Tightening torque:  25 N.m (2.5 kgf-m, 18.1 ft-lb)

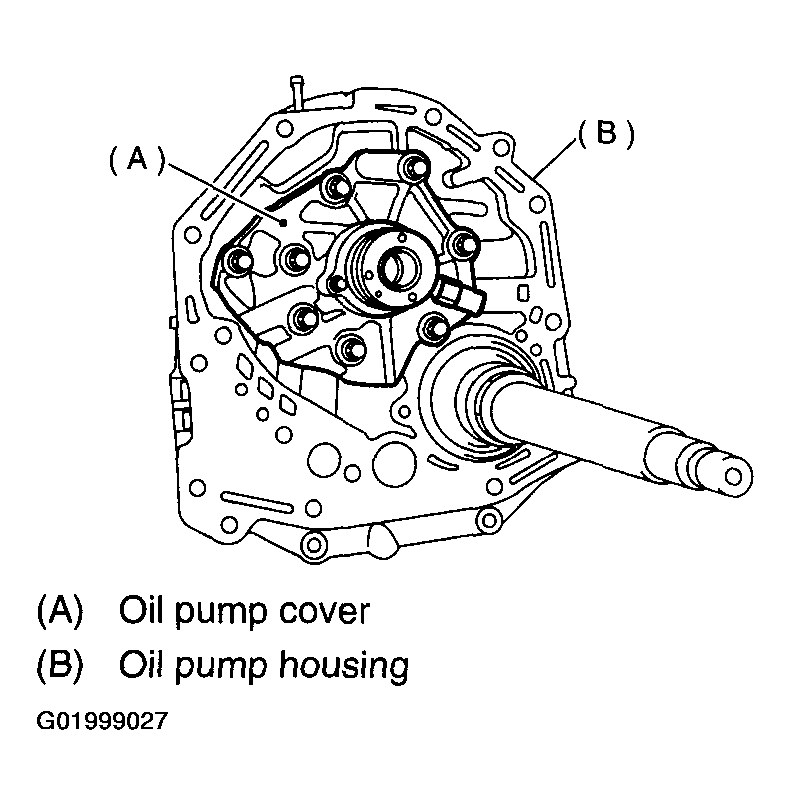

    Fig 2: Installing Oil Pump Cover
    G01999027Courtesy of SUBARU OF AMERICA, INC.
  3. After assembling, turn the oil pump shaft to check for smooth rotation of the rotor.
  4. Install the oil seal retainer and new seal rings. After installation, adjust the drive pinion backlash and tooth contact. See ADJUSTMENT , Oil Pump.

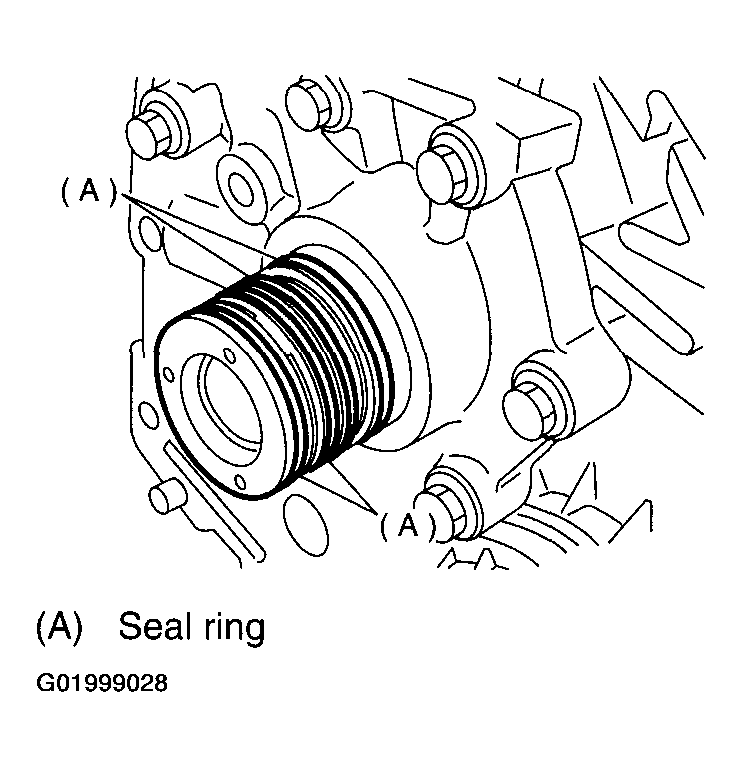

    Fig 3: Installing Oil Seal Retainer & New Seal Rings
    G01999028Courtesy of SUBARU OF AMERICA, INC.
