Code 24
WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Before proceeding, see AIR BAG SAFETY PRECAUTIONS
. After repairs are complete, check AIR BAG warning light to verify system is functioning correctly. See SYSTEM OPERATION CHECK
.
- Ensure ignition switch is off. Remove and inspect fuse No. 11, located in joint fuse block. See Fig 1 . If fuse is blown, replace fuse and go to next step. If fuse is not blown or fuse blows after being replaced, repair body wiring harness and go next step.
- Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM . Disconnect air bag control module connector AB6. See AIR BAG CONTROL MODULE under REMOVAL & INSTALLATION. Connect connector AB6 to test harness I2 (98299FC041), connector 1I. See Figure . Connect negative battery cable and turn ignition on (with engine off). Measure voltage between ground and test harness I2, connector 2I, terminal No. 3. If voltage is 10 volts or less, go to next step. If voltage is more than 10 volts, replace air bag control module.

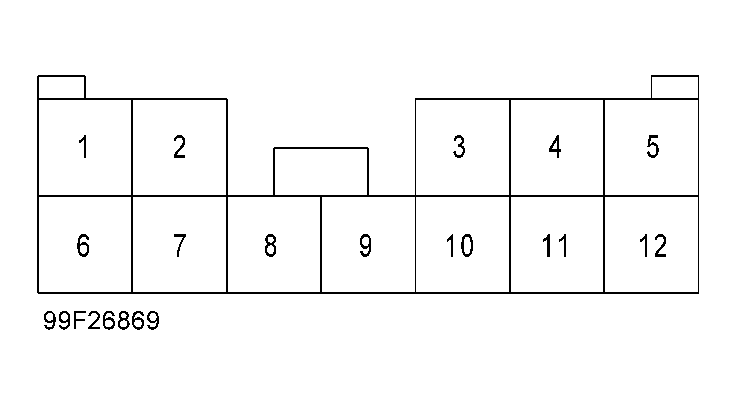

- Turn ignition off and disconnect negative battery cable. Wait at least 20 seconds. Disconnect connectors AB1 and B31, located behind driver-side kick panel. See Figure . Measure voltage between ground and connector B31, terminal No. 12. See Fig 2 . If voltage is more than 10 volts, replace air bag main harness. If voltage is less than 10 volts, repair body harness.
