Brush & Brush Holder

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Subaru Outback, 2004 Subaru Legacy, 2003 Subaru Outback, 2003 Subaru Legacy, and 2002 Subaru Outback. However, it is still accessible from the selected car via links, so may be relevant.
  1. Measure the brush length and replace if it exceeds the service limit. See STARTER SPECIFICATIONS  . See Fig 1 . Replace if abnormal wear or cracks are noticed.
  2. Be sure brush moves smoothly inside brush holder.
  3. Be sure there is no continuity between brush holder and its plate. See Fig 2 .
  4. Measure brush spring force with a spring scale. If it is less than the service limit, replace brush spring. See STARTER SPECIFICATIONS  table under STARTER SPECIFICATIONS.
Fig 1: Checking Brush Length
G00214946Courtesy of SUBARU OF AMERICA, INC.

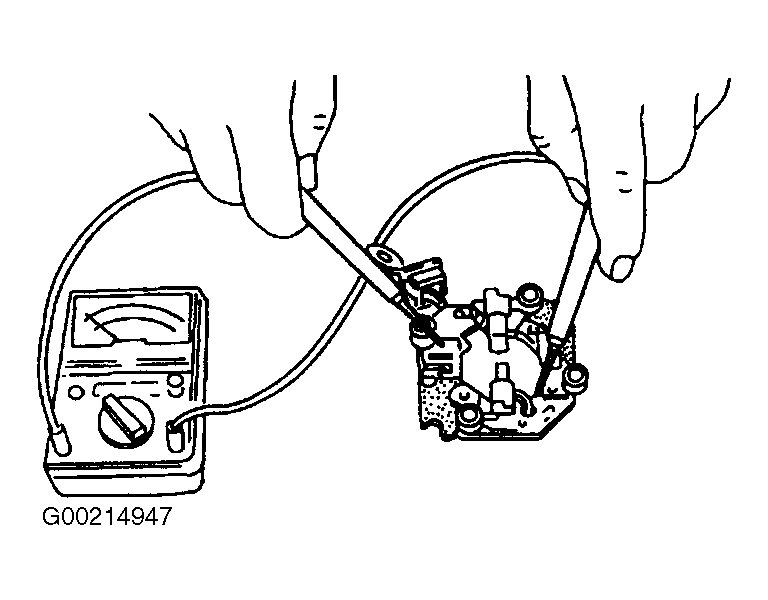

Fig 2: Testing Brush Holder Insulation Continuity
G00214947Courtesy of SUBARU OF AMERICA, INC.
