Wheel Alignment: Inspection: Camber: Inspection

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Place the front wheel on turning radius gauge. Make sure the ground contacting surfaces of front and rear wheels are set at the same height.
Set the ST into the center of the wheel, and then install the wheel alignment gauge.
ST 927380002 ADAPTER

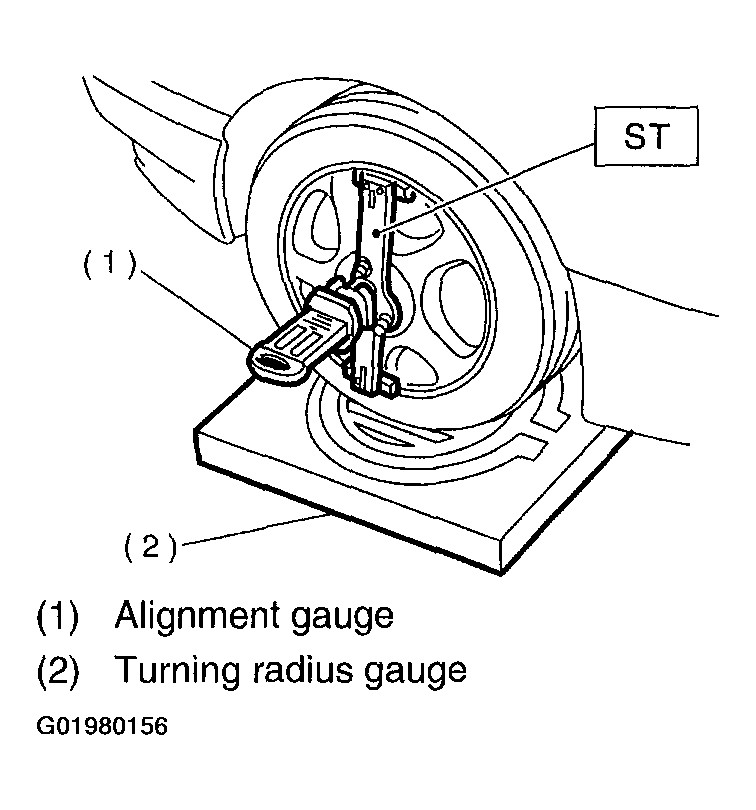

Fig 1: Setting ST Into Center Of Wheel & Install Wheel Alignment Gauge
Courtesy of SUBARU OF AMERICA, INC.

NOTE: See SPECIFICATIONS for the camber values.

Front: See Figure .

Rear: See Figure .
