Section 33 (Power Sun Roofs)
>>
Component Locations
Component Locations
WARNING:
This page is about a different car, the 2002 Subaru Outback and 2002 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

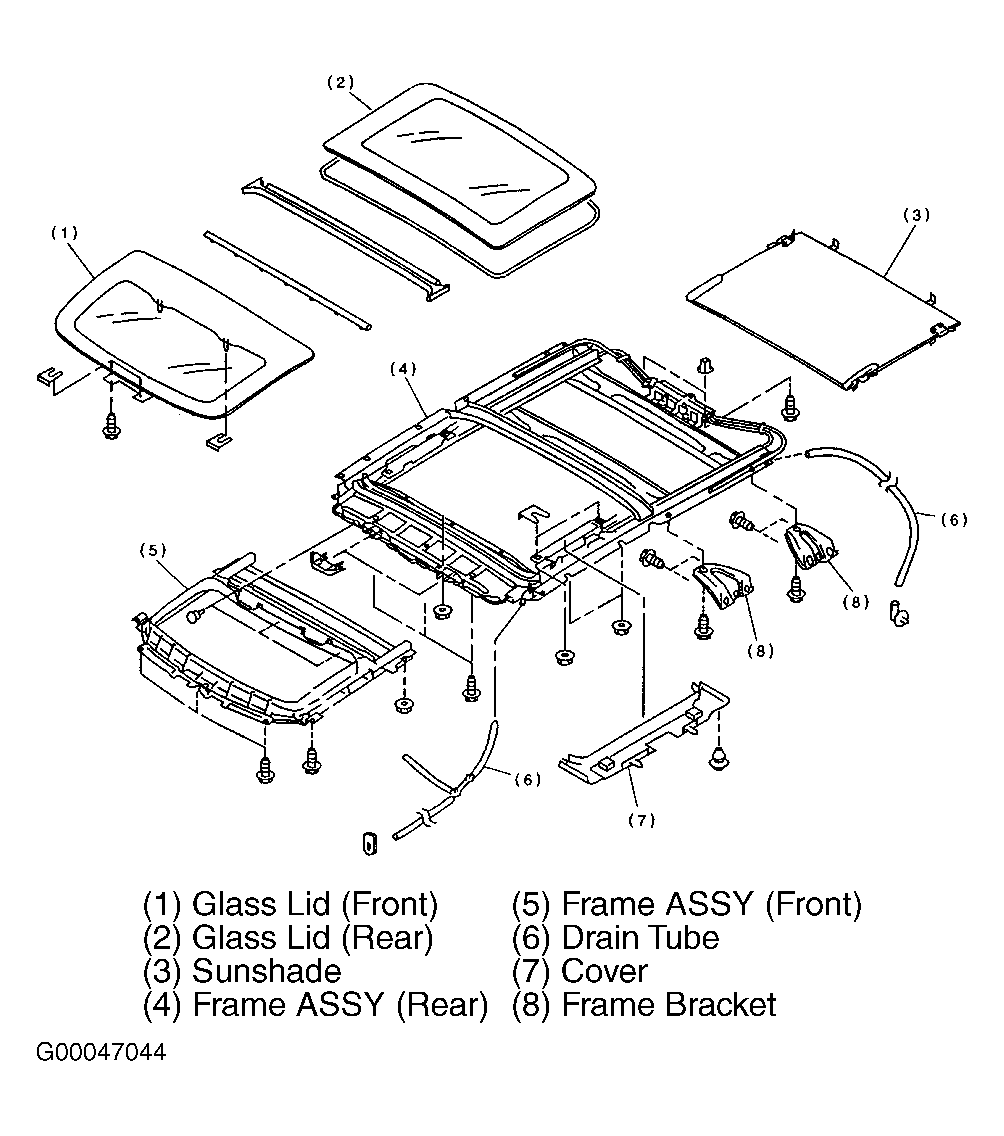

Fig 1: Identifying Moon Roof Components (Sedan)
Courtesy of SUBARU OF AMERICA, INC.

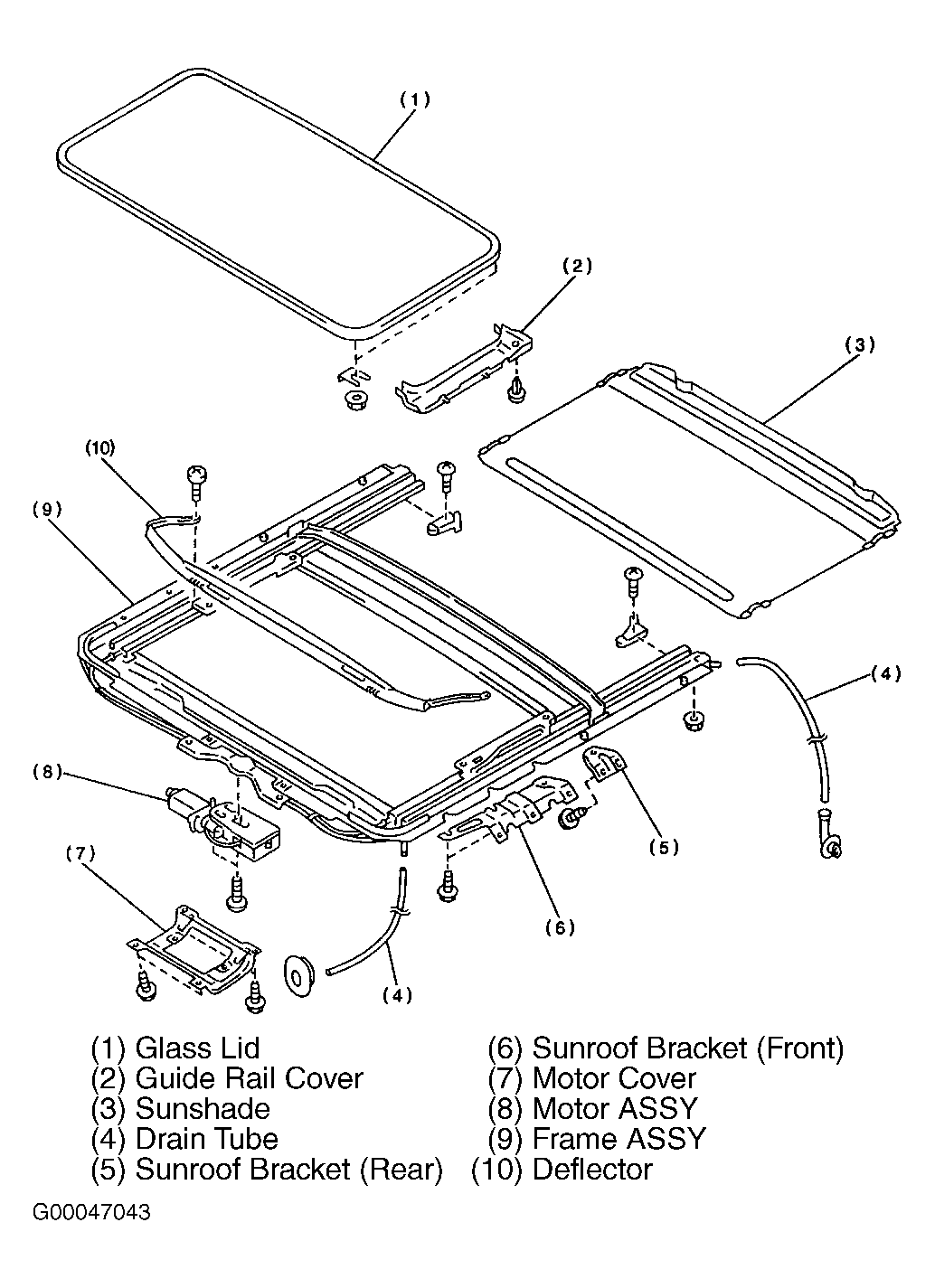

Fig 2: Identifying Moon Roof Components (Station Wagon)
Courtesy of SUBARU OF AMERICA, INC.
