Rear Combination Light Assembly: Removal: Wagon

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect ground cable from battery.
  2. Remove two rear quarter trim covers.
  3. Remove two nuts and then remove rear combination light while disconnecting connector.
NOTE: Before removing the nuts, apply a few turns of butyl tape to the tip of the service tool. This prevents the nuts from falling during removal.

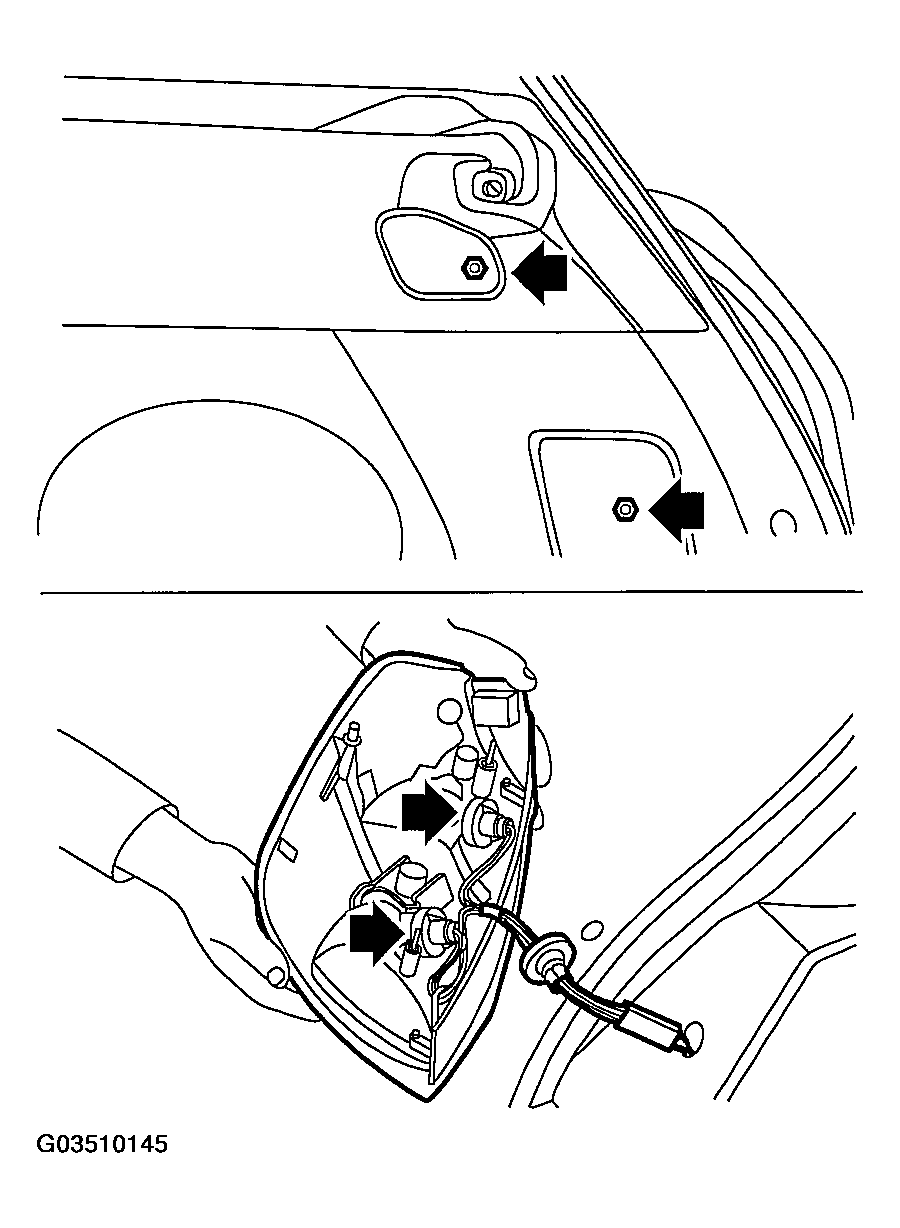

Fig 1: Removing Rear Combination Light While Disconnecting Connector
G03510145Courtesy of SUBARU OF AMERICA, INC.
