Rear Combination Light Assembly: Removal: Sedan

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect ground cable from battery.
  2. Remove clips and then detach trunk rear trim.
    Fig 1: Removing Clips
    G03510142Courtesy of SUBARU OF AMERICA, INC.
  3. Remove hook (A) and then turn over the trunk side trim of rear portion.
    Fig 2: Removing Hook
    G03510143Courtesy of SUBARU OF AMERICA, INC.
  4. Remove harness clip (A).
  5. Remove three nuts and then detach rear combination light while disconnecting connector.

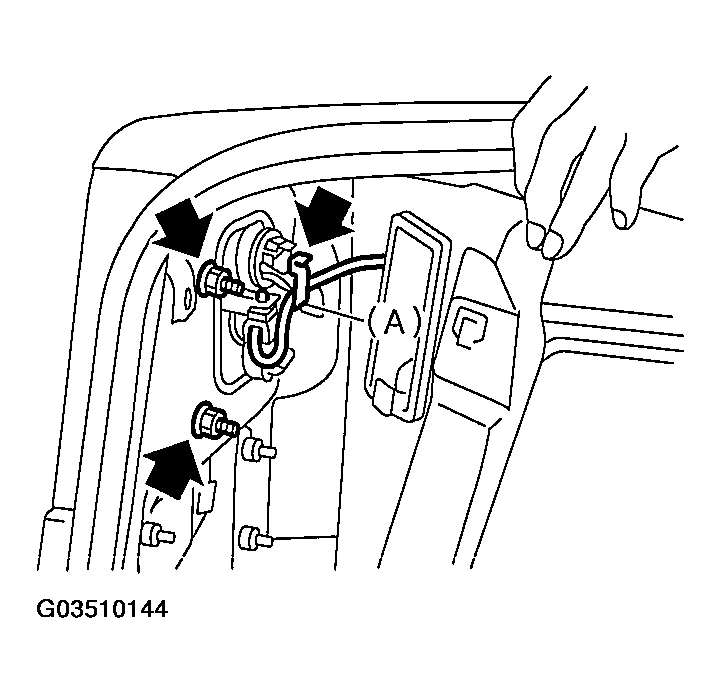

    Fig 3: Removing Nuts Of Detach Rear Combination Light
    G03510144Courtesy of SUBARU OF AMERICA, INC.
