High-mounted Stop Light: Removal: Pickup

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect ground cable from battery.
  2. Remove bolts, then detach high-mounted stop light assembly.
    Fig 1: Detaching High-Mounted Stop Light Assembly
    G03510173Courtesy of SUBARU OF AMERICA, INC.
  3. Turn the socket and remove the bulb.

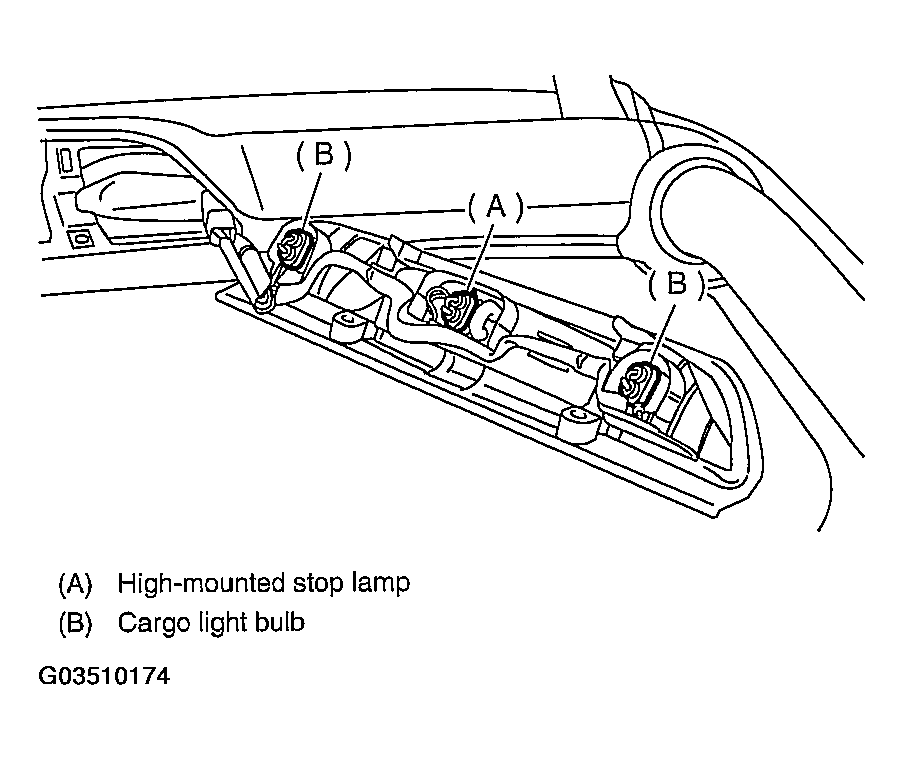

    Fig 2: Turning Socket
    G03510174Courtesy of SUBARU OF AMERICA, INC.
