Back-up Light Bulb: Removal: Pickup

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove combination light assembly. Refer to PICKUP  , REMOVAL, Rear Combination Light Assembly.
  2. Rotate socket and remove bulb.

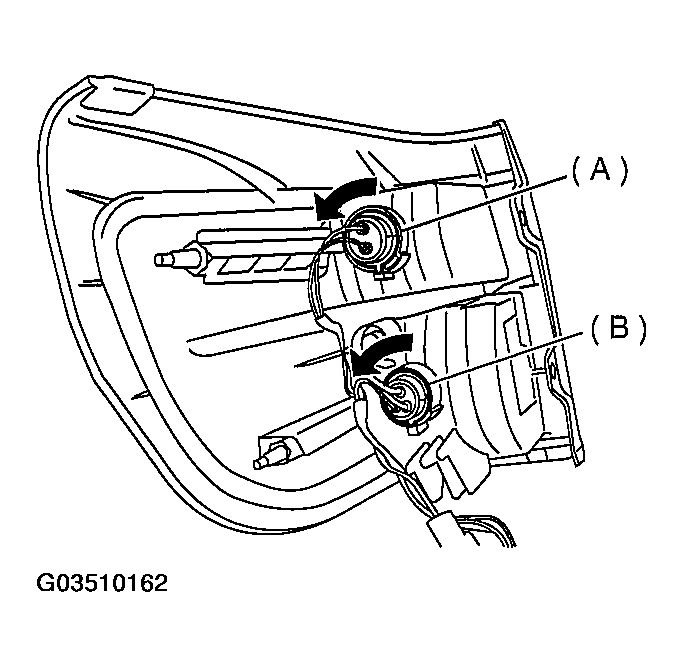

    Fig 1: Removing Bulb
    G03510162Courtesy of SUBARU OF AMERICA, INC.
