Electrical Specification

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

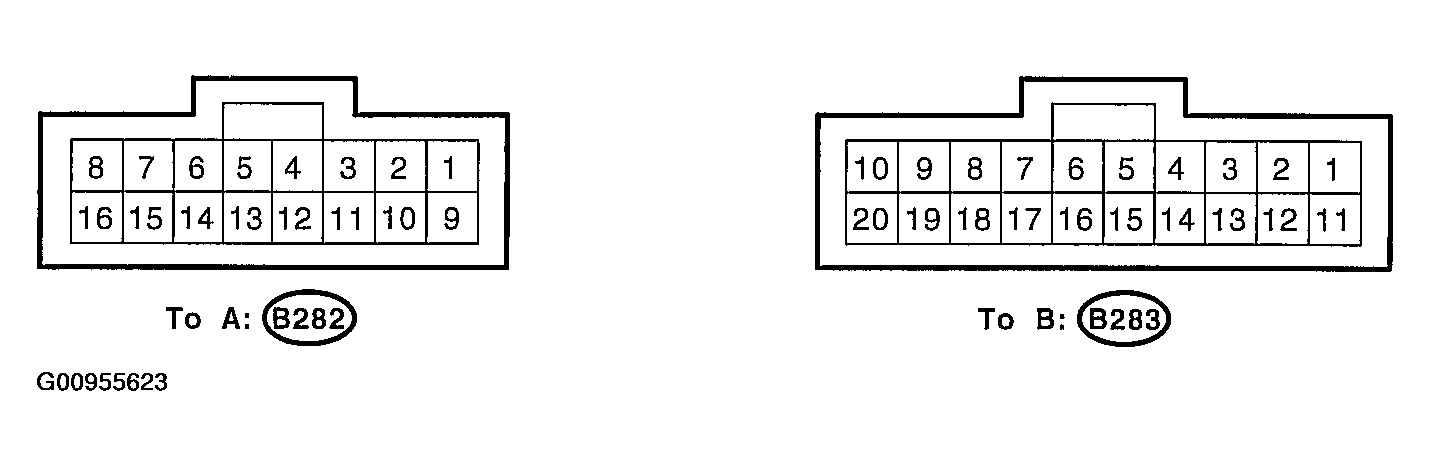

Fig 1: Identifying Connector Terminal (A/C Control Module I/O Signal)
G00955623Courtesy of SUBARU OF AMERICA, INC.

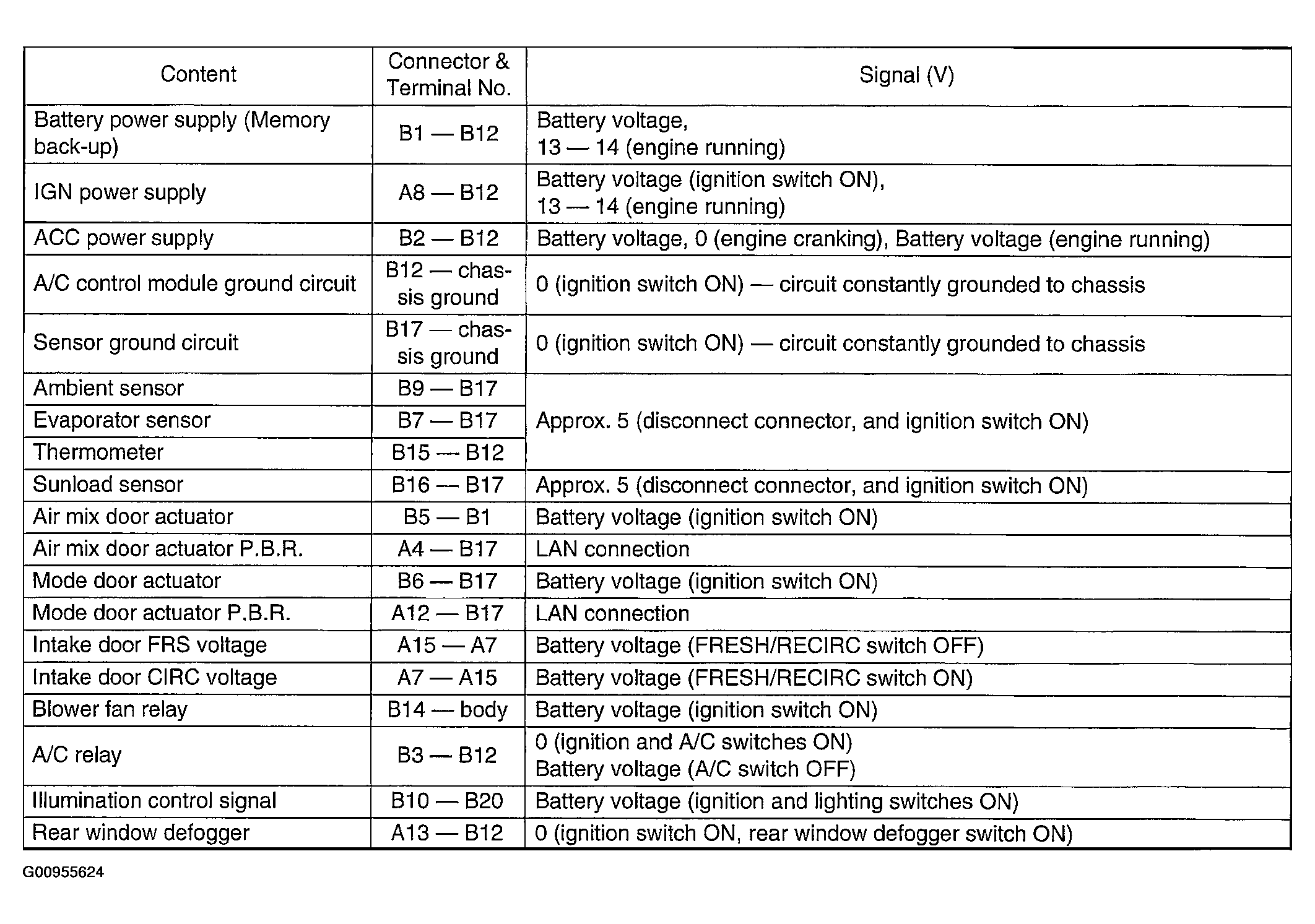

Fig 2: Connector Terminal Specification Chart
G00955624Courtesy of SUBARU OF AMERICA, INC.
