Master Cylinder: Installation

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Install the master cylinder to body, and install the clutch pipe to master cylinder.
NOTE: Check that the pipe is routed properly.

Tightening torque:

T1: 15 N.m (1.5 kgf-m, 10.8 ft-lb)

T2: 18 N.m (1.8 kgf-m, 13.0 ft-lb)

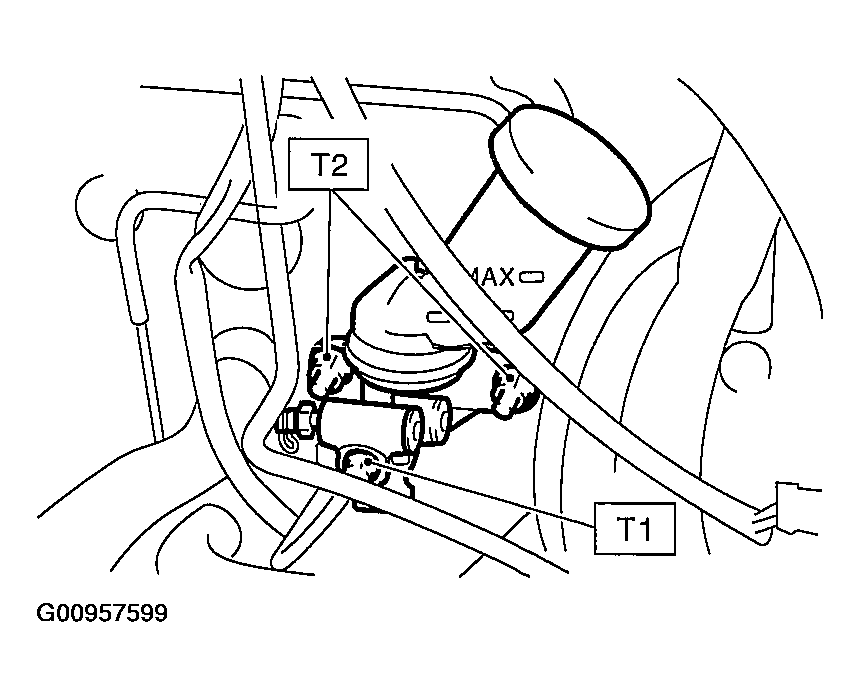

Fig 1: Installing Master Cylinder To Body
Courtesy of SUBARU OF AMERICA, INC.
Connect the push rod of master cylinder to clutch pedal, and install the clevis pin and snap pin.
NOTE: Apply grease to the clevis pin.

Fig 2: Applying Grease To Clevis Pin Of Push Rod
Courtesy of SUBARU OF AMERICA, INC.
After bleeding air from the system, ensure that clutch operates properly.
< Ref. to CLUTCH FLUID AIR BLEEDING .>
Install the air cleaner case and air intake duct (Non-turbo model). < Ref. to INSTALLATION . > and < Ref. to INSTALLATION . >
Install the intercooler (Turbo model). < Ref. to INSTALLATION , Intercooler. >
