Section 230 (Clutch System): Flywheel: Removal

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission assembly.

    5MT:

    < Ref. to REMOVAL , Manual Transmission Assembly.>

    6MT:

    < Ref. to REMOVAL , Manual Transmission Assembly.>

  2. Remove the clutch cover and clutch disc. < Ref. to REMOVAL , Clutch Disc and Cover.>
  3. Using the ST, remove the flywheel.

    ST 498497100 CRANKSHAFT STOPPER

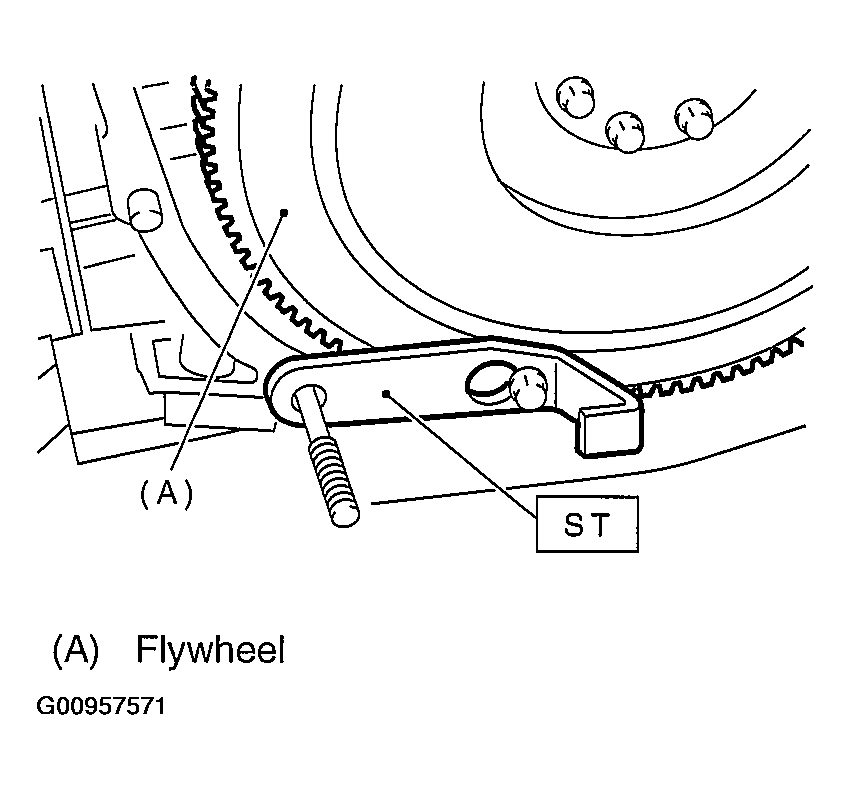

    Fig 1: Locking Flywheel For Removal Using ST
    G00957571Courtesy of SUBARU OF AMERICA, INC.
