VTD Model

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the select lever to "P" range.
  2. Using a plastic hammer, install reduction driven gear assembly.
  3. Using a plastic hammer, install the center differential assembly.
  4. Install a new self-lock nut and a washer.

    Tightening torque:

    100 N.m (10.2 kgf-m, 73.8 ft-lb)

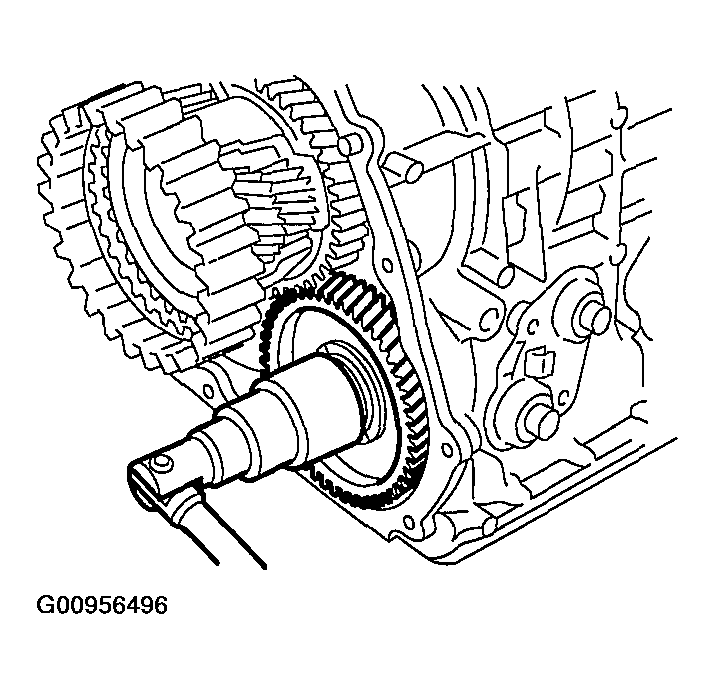

    Fig 1: Tightening Self-Lock Nut And Washer
    G00956496Courtesy of SUBARU OF AMERICA, INC.
  5. After tightening, stake the lock nut securely.
  6. Insert the rear drive shaft assembly. < Ref. to INSTALLATION <-- , Rear Drive Shaft -->.>
  7. Combine the transmission case with the extension case, and install rear vehicle speed sensor. < Ref. to INSTALLATION <-- , Extension Case -->.>
  8. Install the transmission assembly to vehicle. < Ref. to INSTALLATION <-- , Automatic Transmission Assembly -->.>
