Inhibitor Switch: Removal

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Set up the vehicle on a lift.
Move the select lever to "N" range.
Remove the air cleaner case. (Non-turbo model)
< Ref. to REMOVAL .>
Remove the intercooler. (Turbo model)
< Ref. to REMOVAL .>

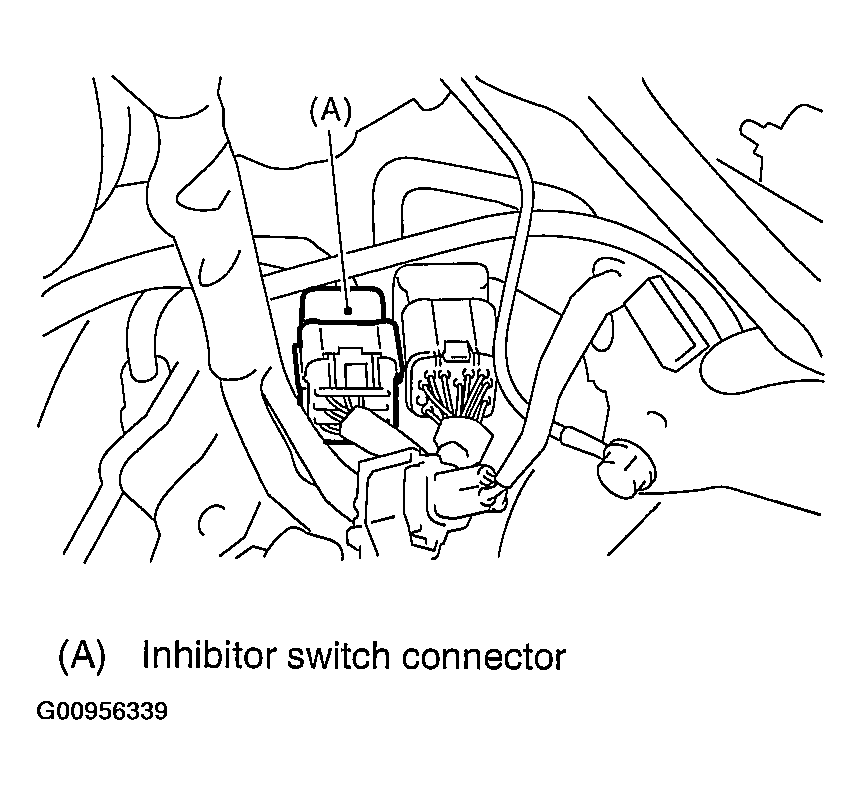

Disconnect the inhibitor switch connector.

Fig 1: Disconnecting Inhibitor Switch Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the inhibitor switch connector from stay.
Lift-up the vehicle.
Remove the front and center exhaust pipes.
< Ref. to REMOVAL .>

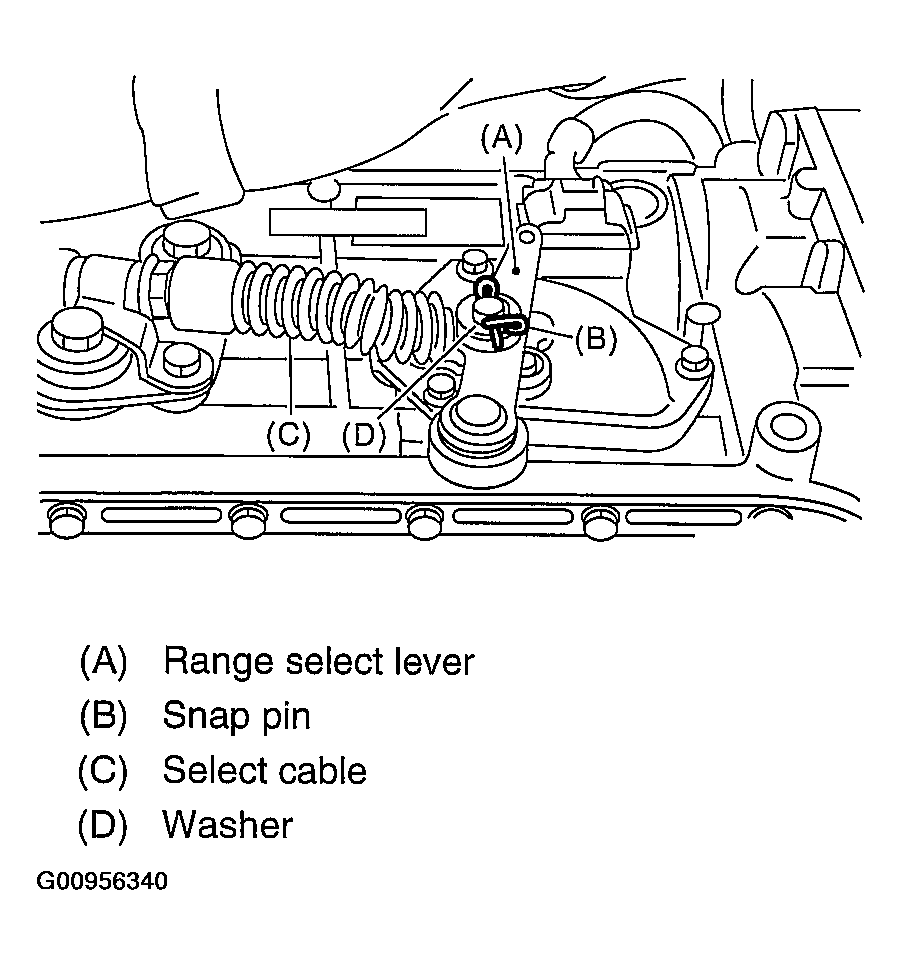

Remove the snap pin and washer from range select lever.

Fig 2: Removing Snap Pin And Washer From Range Select Lever
Courtesy of SUBARU OF AMERICA, INC.

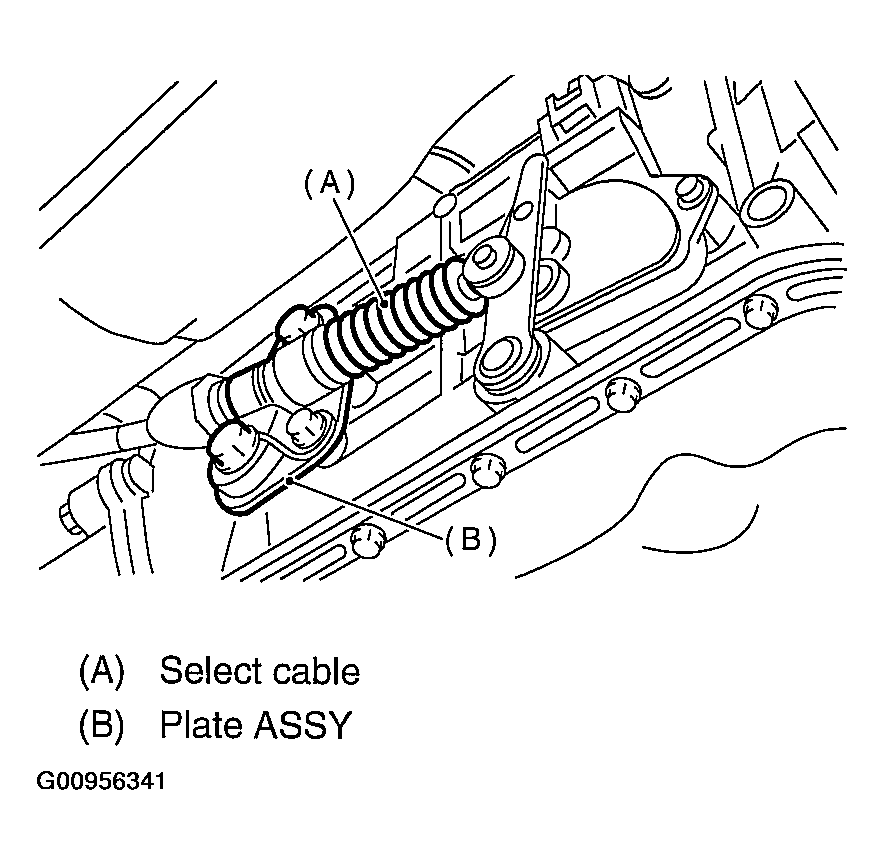

Remove the plate assembly from transmission case.

Fig 3: Removing Plate Assembly From Transmission Case
Courtesy of SUBARU OF AMERICA, INC.

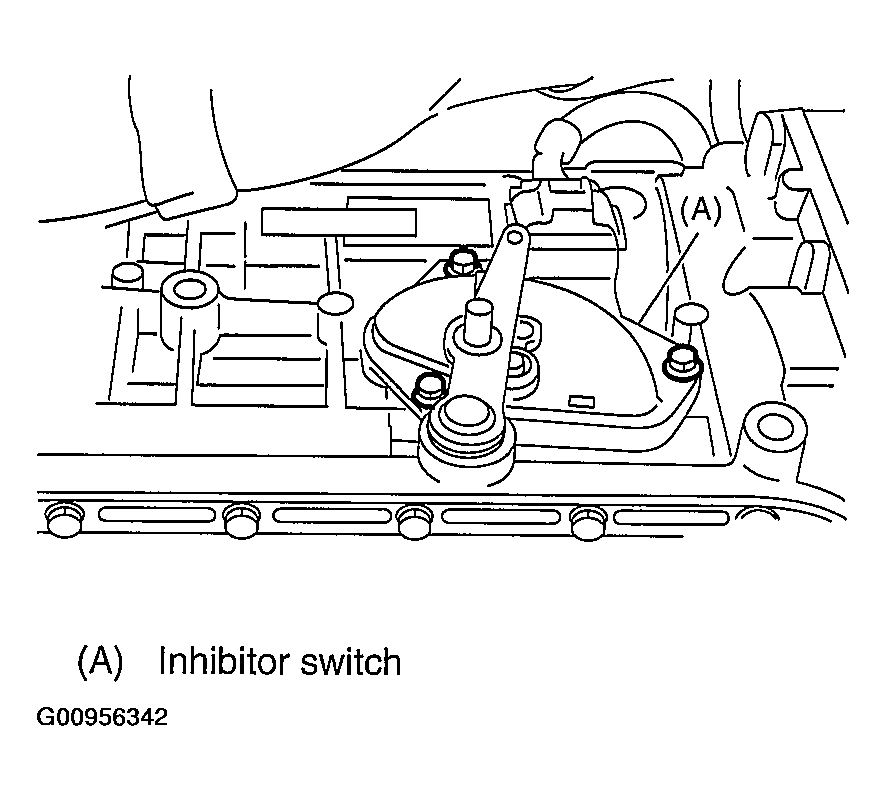

Remove the bolts.

Fig 4: Removing Bolts
Courtesy of SUBARU OF AMERICA, INC.

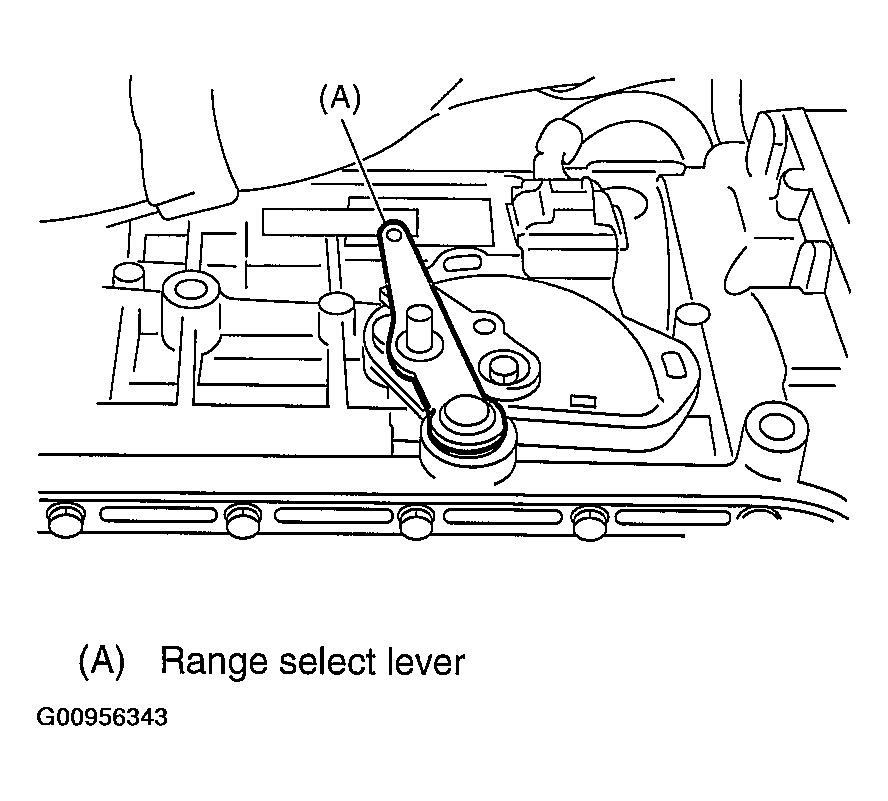

Move the range select lever to parking position (left side).

Fig 5: Moving Range Select Lever To Parking Position (Left Side)
Courtesy of SUBARU OF AMERICA, INC.

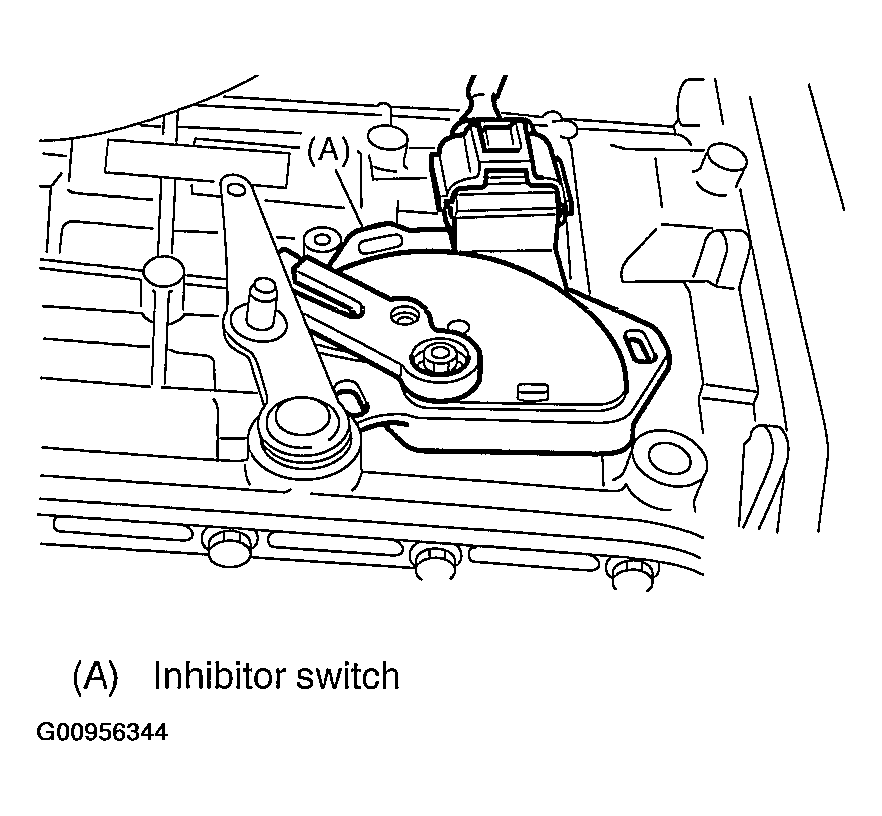

Remove the inhibitor switch from transmission.

Fig 6: Removing Inhibitor Switch From Transmission
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the inhibitor switch harness connector from inhibitor switch.
