Reverse Check Cable: Removal

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Set the vehicle on a lift.
Remove the gear shift knob.
Remove the console box. < Ref. to REMOVAL , Console Box. >
Remove the spring pin from slider.

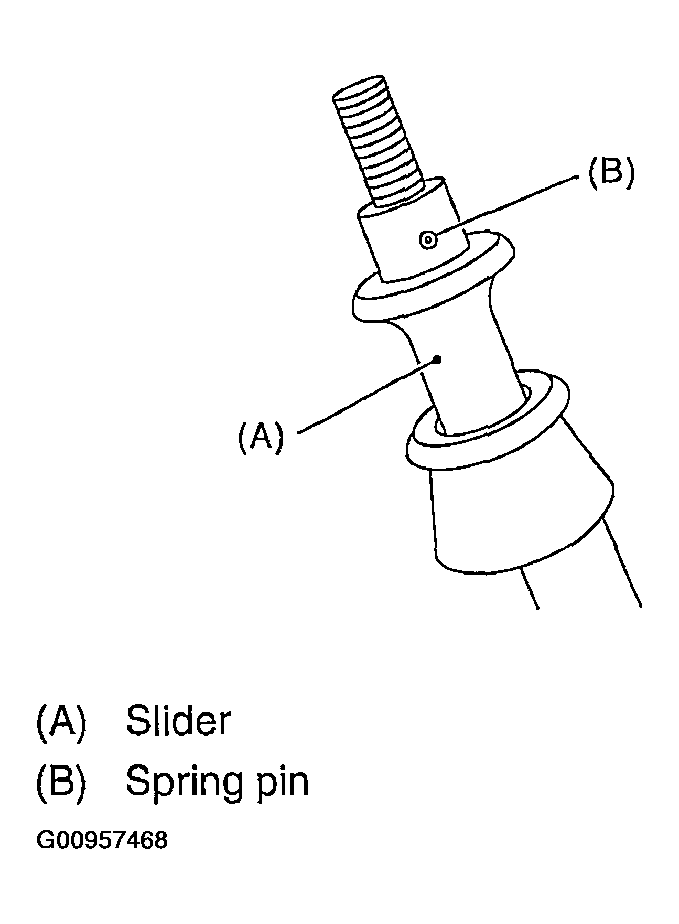

Fig 1: Removing Spring Pin From Slider
Courtesy of SUBARU OF AMERICA, INC.
Remove the slider and spring.

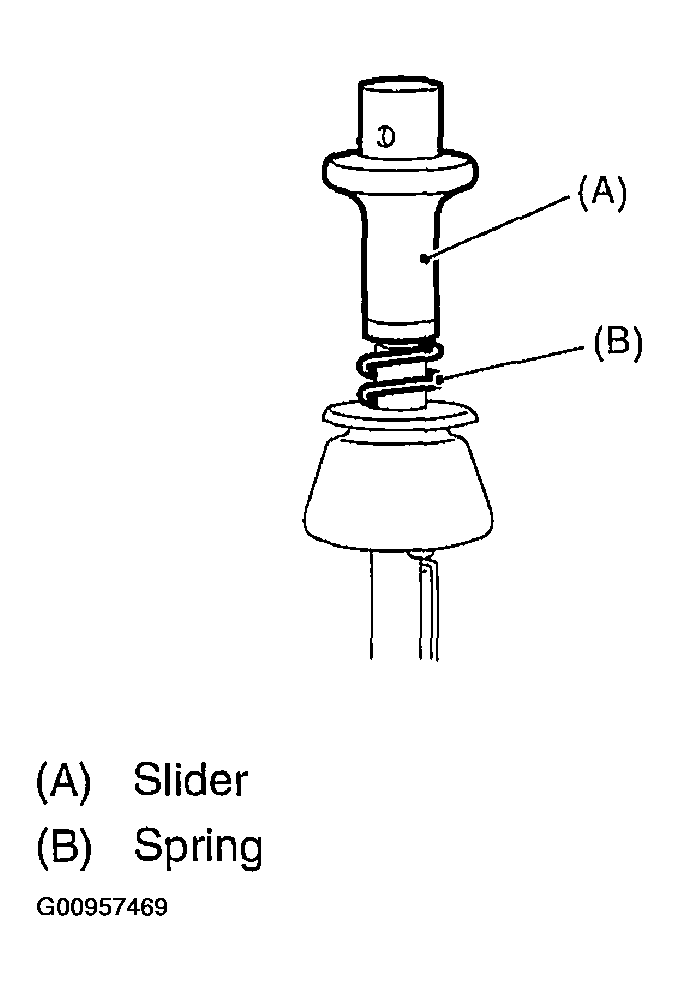

Fig 2: Removing Slider & Spring
Courtesy of SUBARU OF AMERICA, INC.
Cut the band clip, and then separate the reverse check cable from gear shift lever.

Fig 3: Identifying Band Clip
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Remove the under cover.
Remove the rear exhaust pipe and muffler:
< Ref. to REMOVAL , Rear Exhaust Pipe.> and

< Ref. to REMOVAL , Muffler.>
Remove the crossmember. < Ref. to CROSSMEMBER AND CUSHION RUBBER , REMOVAL, Transmission Mounting System. >
Remove the snap pin and washer, and then separate the reverse check cable from reverse check lever.

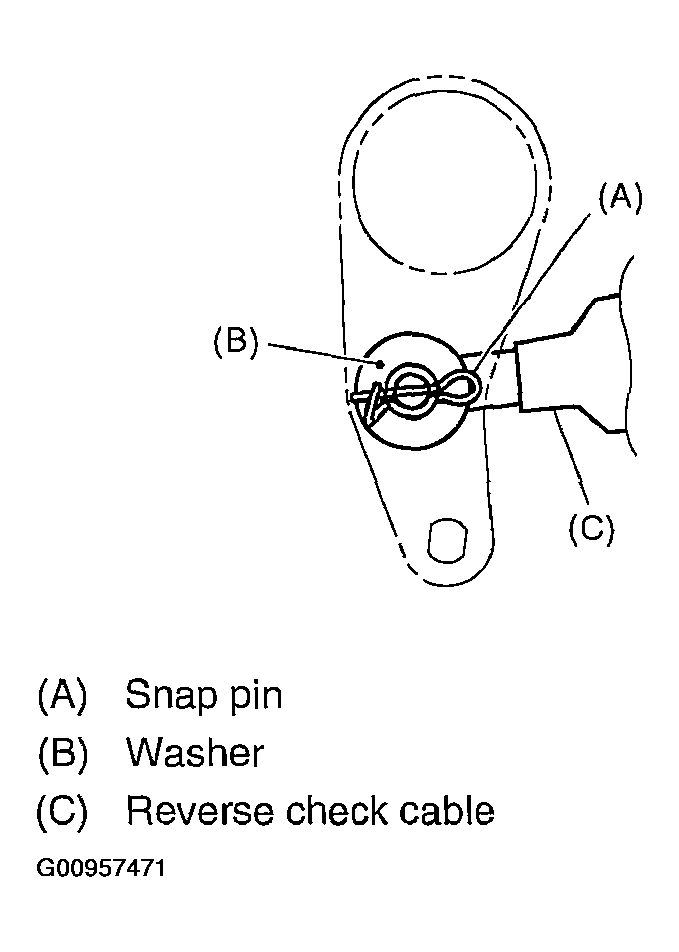

Fig 4: Removing Snap Pin & Washer
Courtesy of SUBARU OF AMERICA, INC.
Move the transmission to right side, and then remove the stay bolt and reverse check cable.
NOTE: If the transmission is not moved, the stay bolt will contact body and damage may occur.

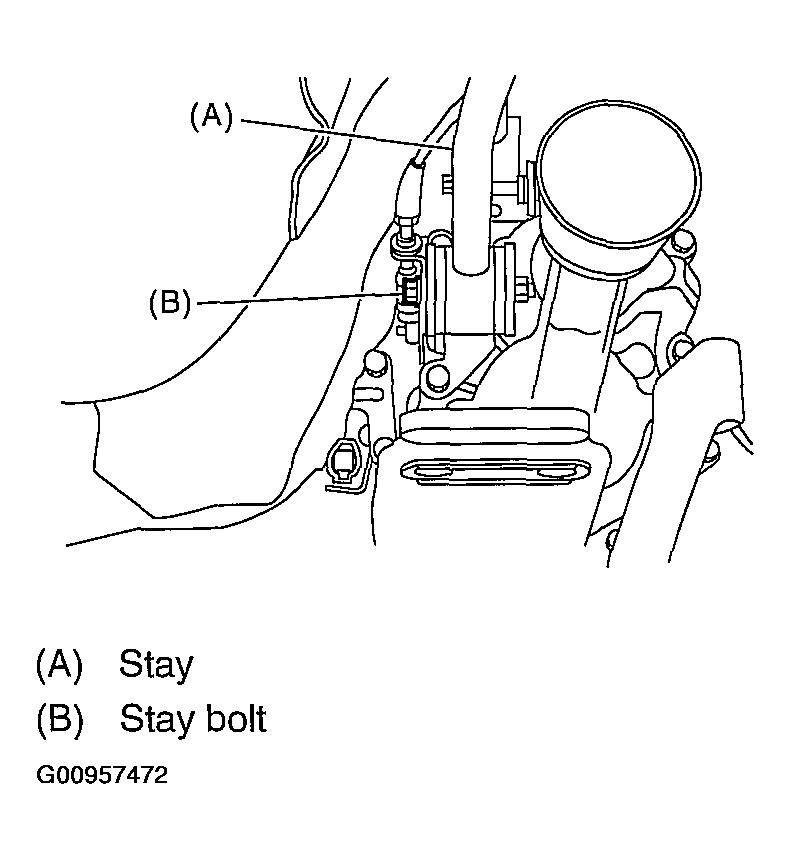

Fig 5: Identifying Stay & Stay Bolt
Courtesy of SUBARU OF AMERICA, INC.
Raise the clip of stay, and then separate the stay and reverse check cable.

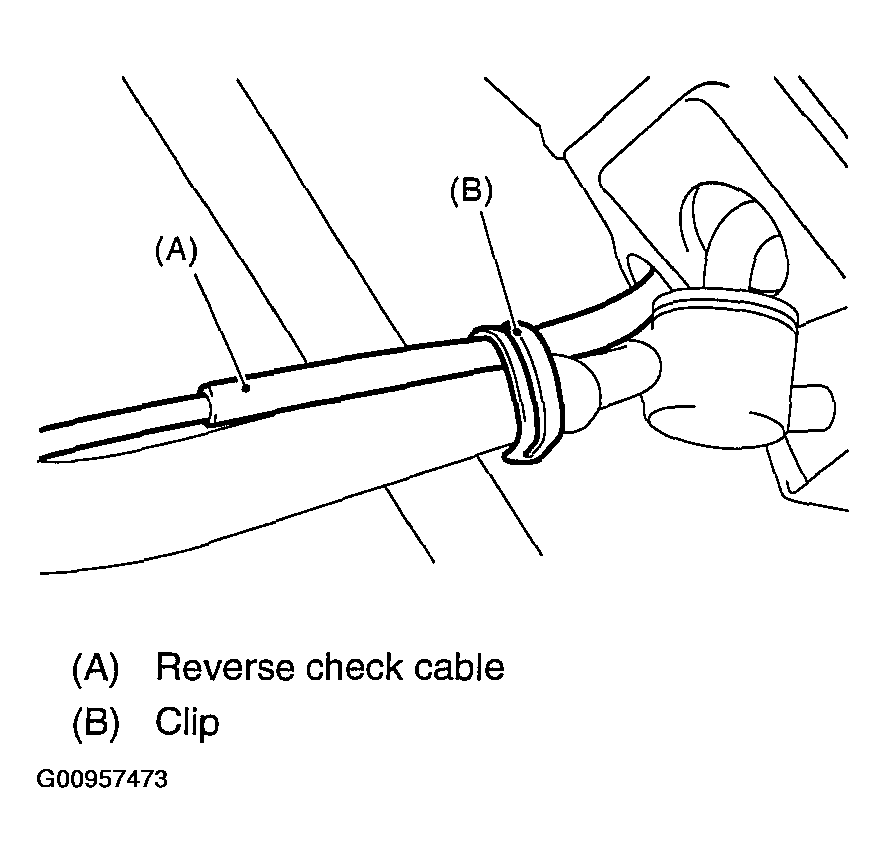

Fig 6: Separating Stay & Reverse Check Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the reverse check cable by pulling from underneath the vehicle.
NOTE: Take care not to damage the inner boot.
Loosen the lock nut, then remove the reverse check cable from cable plate.

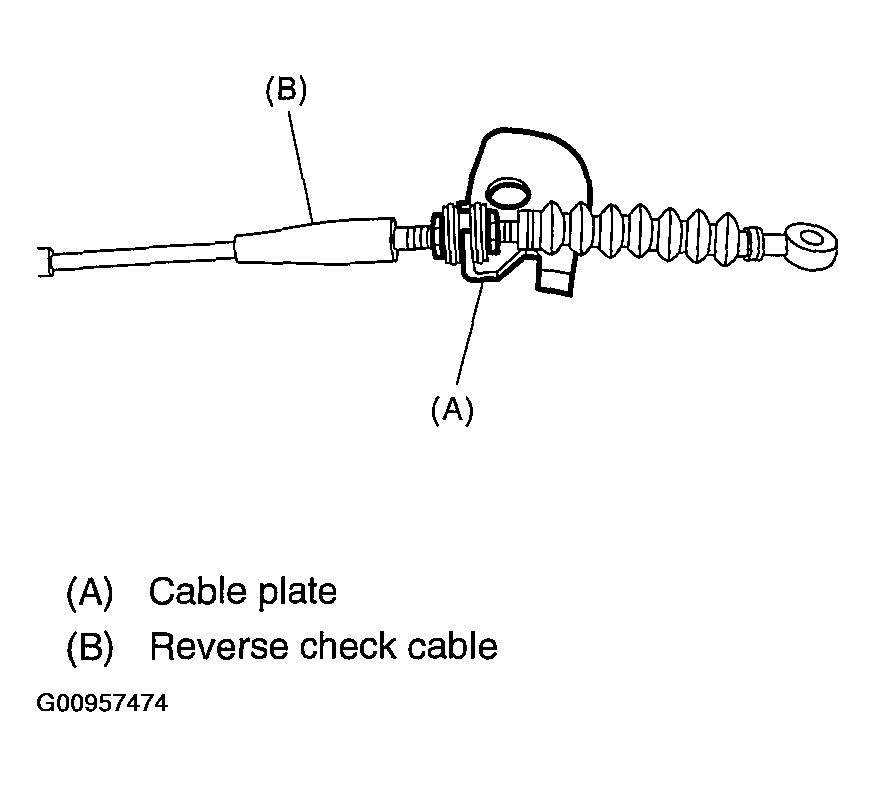

Fig 7: Removing Reverse Check Cable From Cable Plate
Courtesy of SUBARU OF AMERICA, INC.
