Reverse Check Cable: Adjustment

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Set the vehicle on a lift.
Remove the under cover.
Remove the rear exhaust pipe and muffler:
< Ref. to REMOVAL , Rear Exhaust Pipe.> and

< Ref. to REMOVAL , Muffler.>
Remove the crossmember. < Ref. to CROSSMEMBER AND CUSHION RUBBER , REMOVAL, Transmission Mounting System. >
Remove the snap pin and washer, and then separate the reverse check cable from reverse check lever.

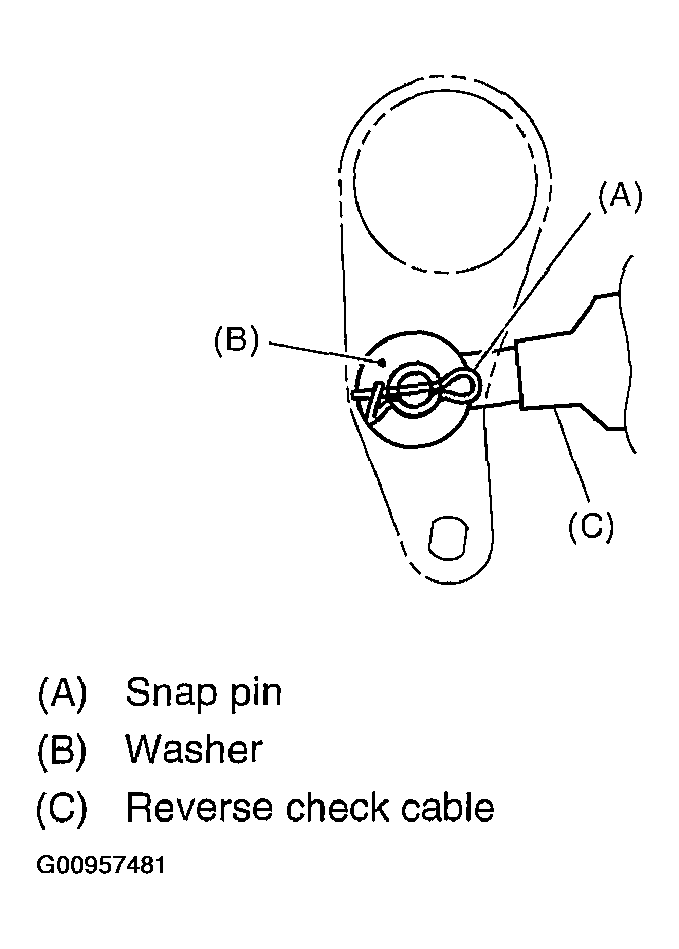

Fig 1: Removing Snap Pin & Washer
Courtesy of SUBARU OF AMERICA, INC.
Move the transmission to right side, and then remove the stay bolt and reverse check cable.
NOTE: If the transmission is not moved, the stay bolt will contact body and damage may occur.

Fig 2: Removing Stay Bolt & Reverse Check Cable
Courtesy of SUBARU OF AMERICA, INC.
Adjust the length between end of cable plate and reverse check cable to 84 mm (3.31 in), and then tighten the lock nut.
Tightening torque:

6 N.m (0.6 kgf-m, 4.4 ft-lb)

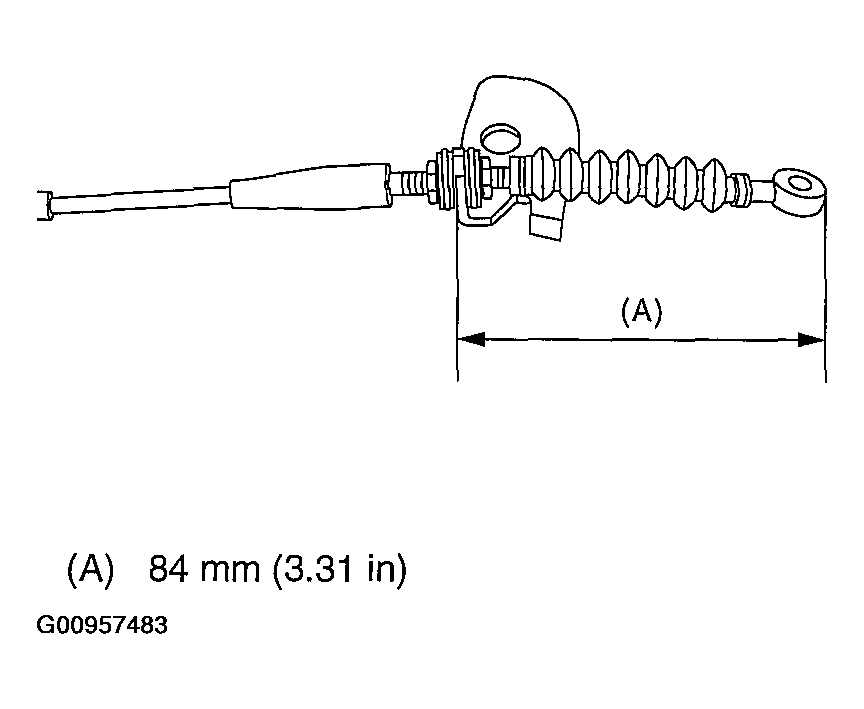

Fig 3: Adjusting Length Between End Of Cable Plate & Reverse Check Cable
Courtesy of SUBARU OF AMERICA, INC.
Move the transmission to right side, and then install the stay.
Tightening torque:

T: 32 N.m (3.3 kgf-m, 23.6 ft-lb)

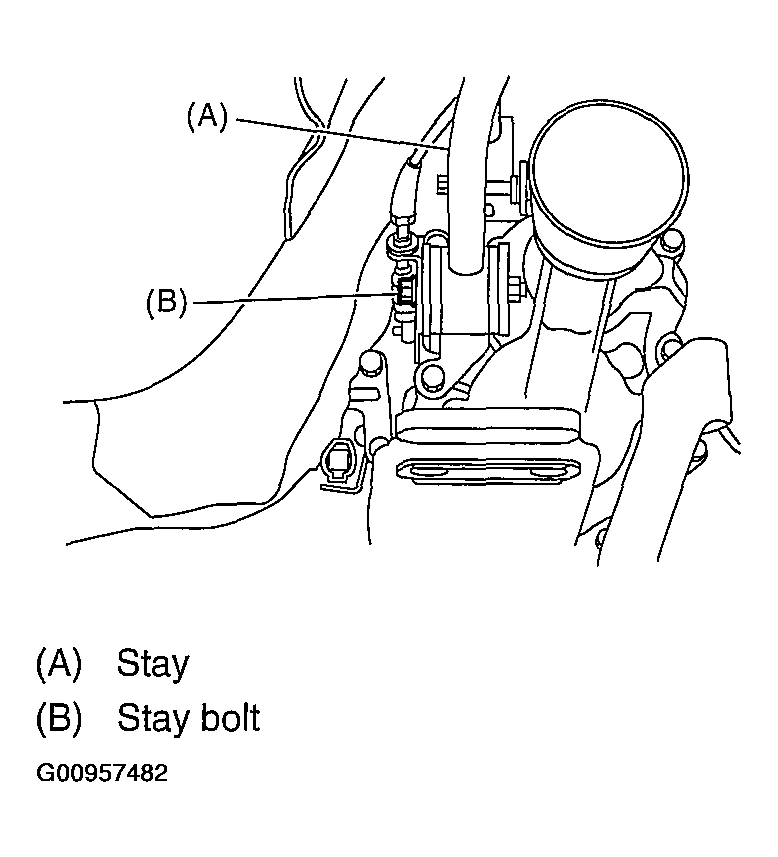

Fig 4: Installing Stay
Courtesy of SUBARU OF AMERICA, INC.
Install the crossmember. < Ref. to CROSSMEMBER AND CUSHION RUBBER , INSTALLATION, Transmission Mounting System. >
Remove the rear exhaust pipe and muffler:
< Ref. to REMOVAL , Rear Exhaust Pipe. > and

< Ref. to REMOVAL , Muffler. >
Install the reverse check cable end, washer and snap pin to reverse check lever.
NOTE: Take care to install the snap pin in proper direction.

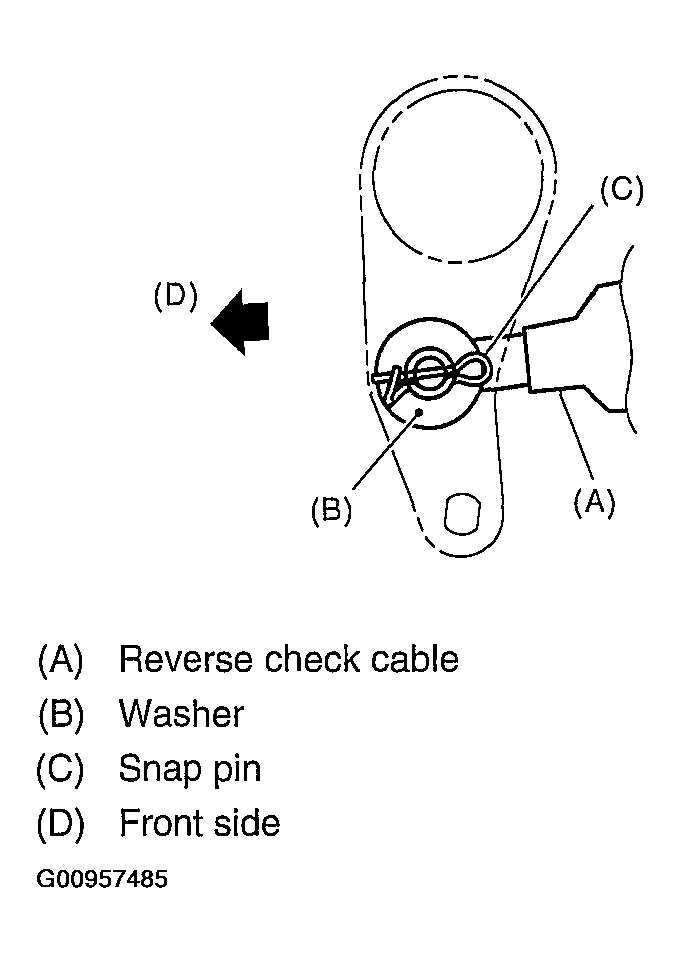

Fig 5: Installing Snap Pin
Courtesy of SUBARU OF AMERICA, INC.
Install the under cover.
