MT Gear Shift Lever: Disassembly: 6MT

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

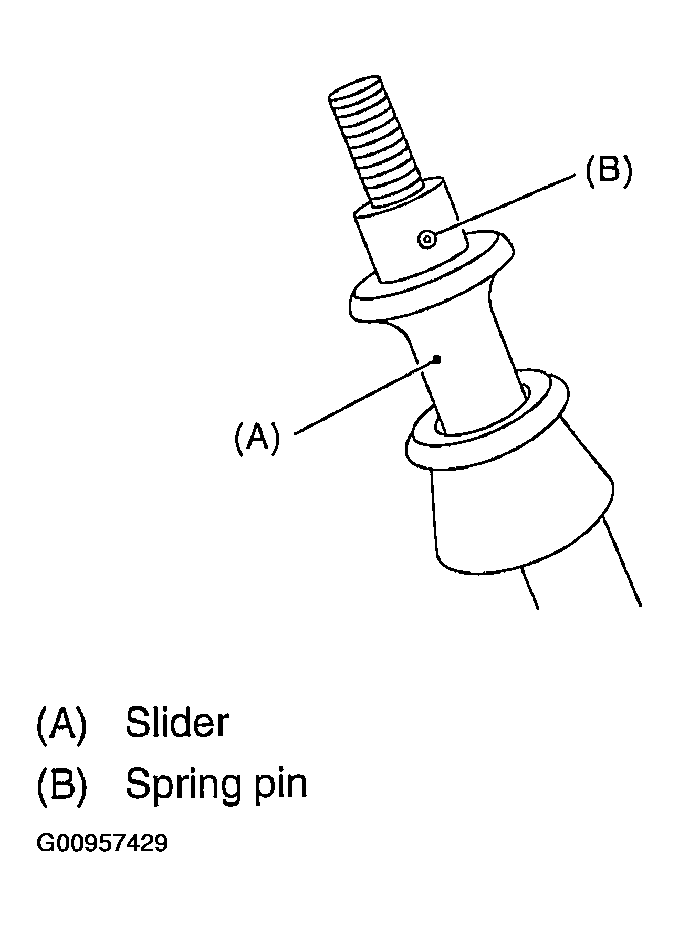

Remove the spring pin from slider.

Fig 1: Removing Spring Pin From Slider
Courtesy of SUBARU OF AMERICA, INC.

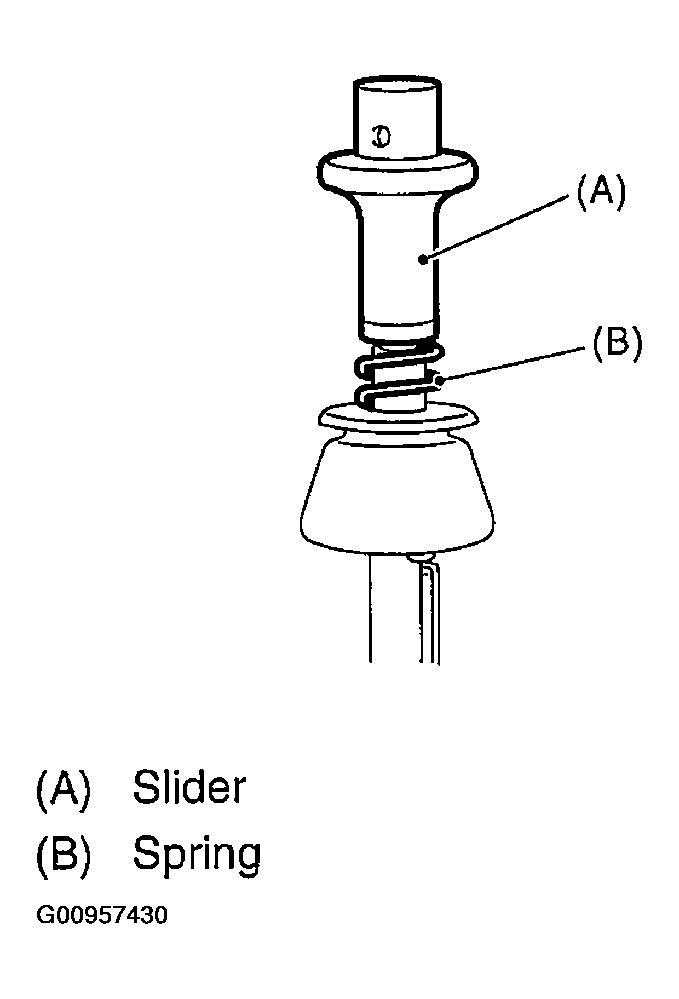

Remove the slider and spring.

Fig 2: Removing Slider & Spring
Courtesy of SUBARU OF AMERICA, INC.

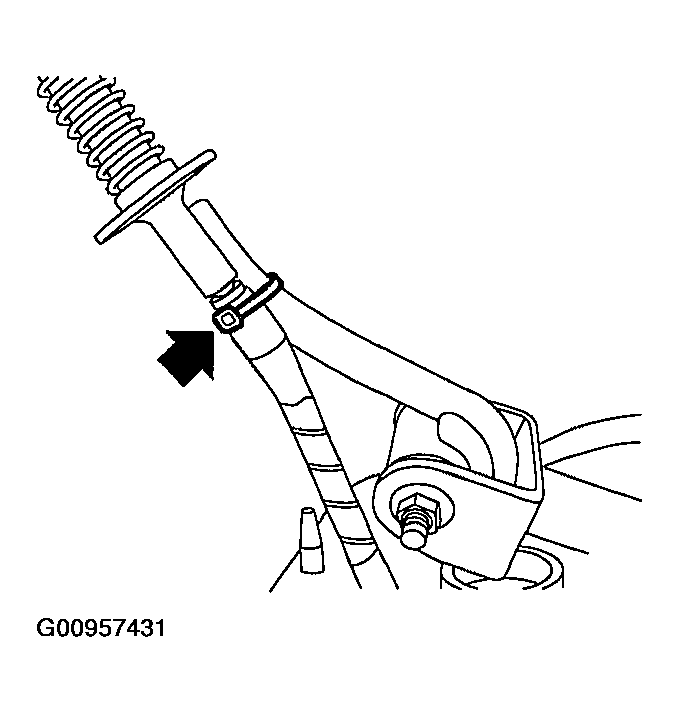

Cut the band clip.

Fig 3: Identifying Band Clip
Courtesy of SUBARU OF AMERICA, INC.

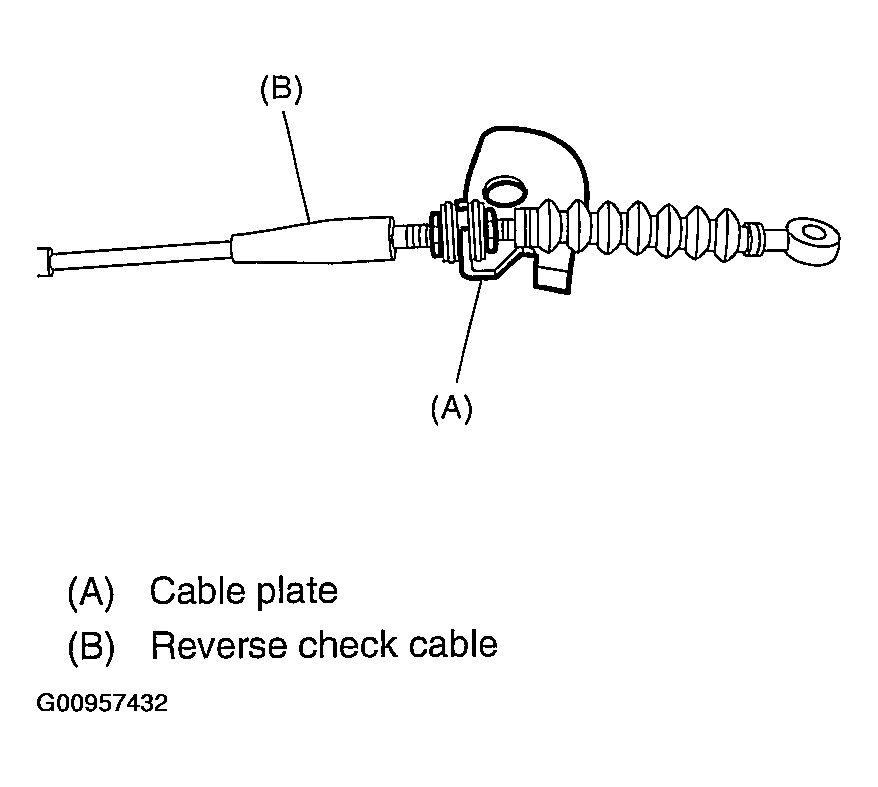

Remove the reverse check cable from cable plate.

Fig 4: Removing Reverse Check Cable From Cable Plate
Courtesy of SUBARU OF AMERICA, INC.

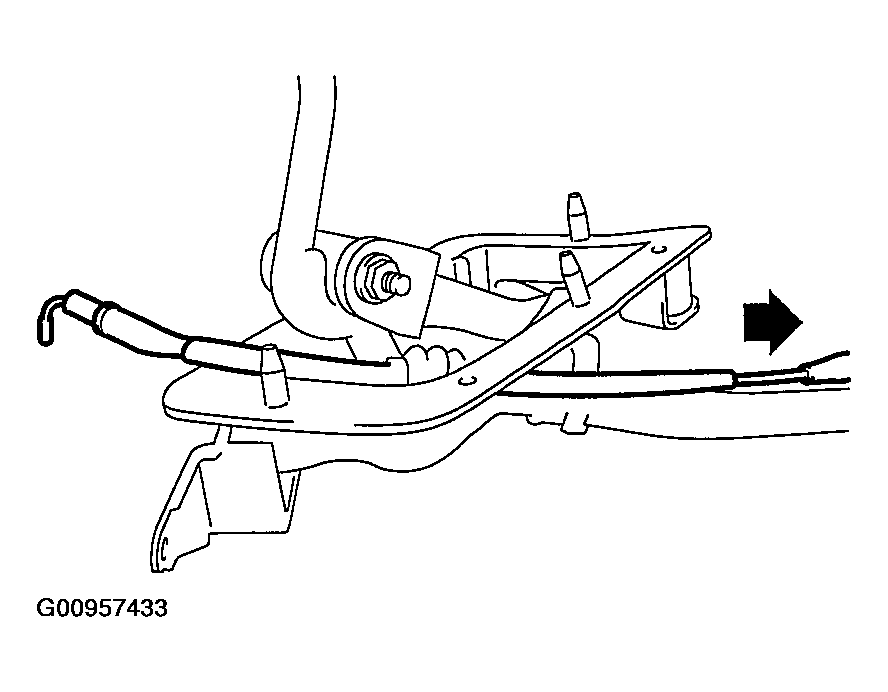

Remove the reverse check cable from gear shift assembly.

Fig 5: Removing Reverse Check Cable From Gear Shift Assembly
Courtesy of SUBARU OF AMERICA, INC.

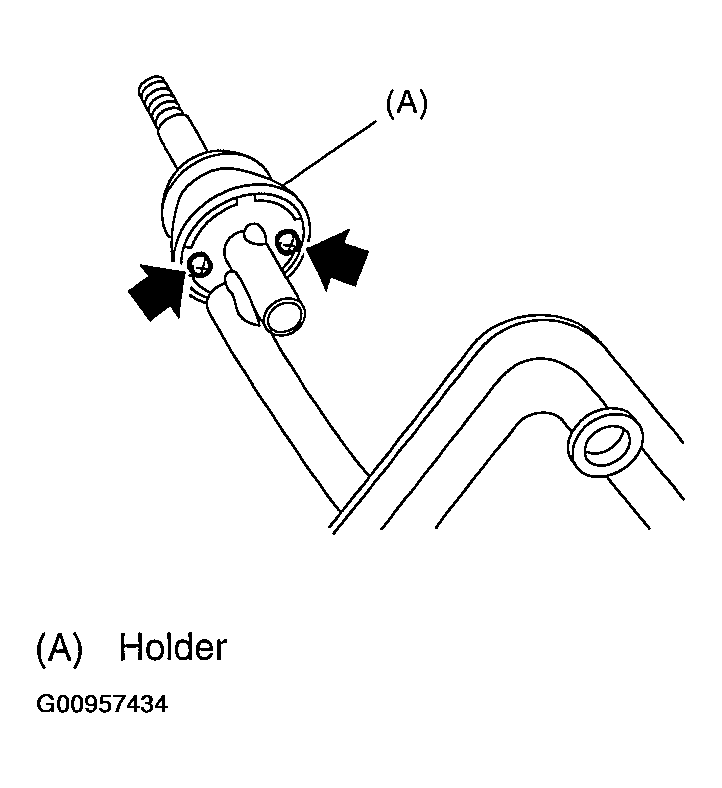

Remove the holder and spring seat.

Fig 6: Removing Holder & Spring Seat
Courtesy of SUBARU OF AMERICA, INC.

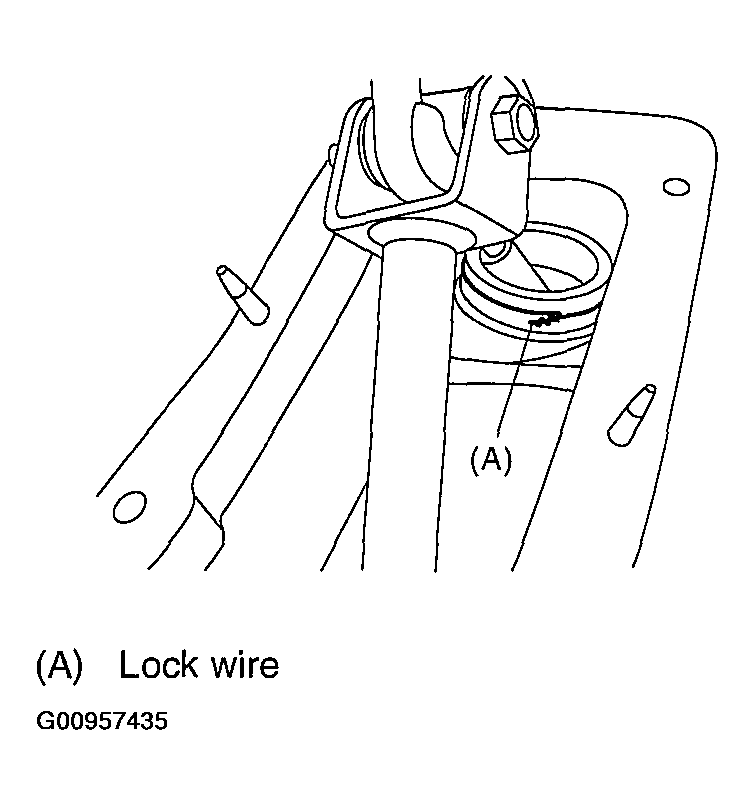

Disassemble the lock wire.
NOTE: Do not reuse the lock wire.

Fig 7: Disassembling Lock Wire
Courtesy of SUBARU OF AMERICA, INC.

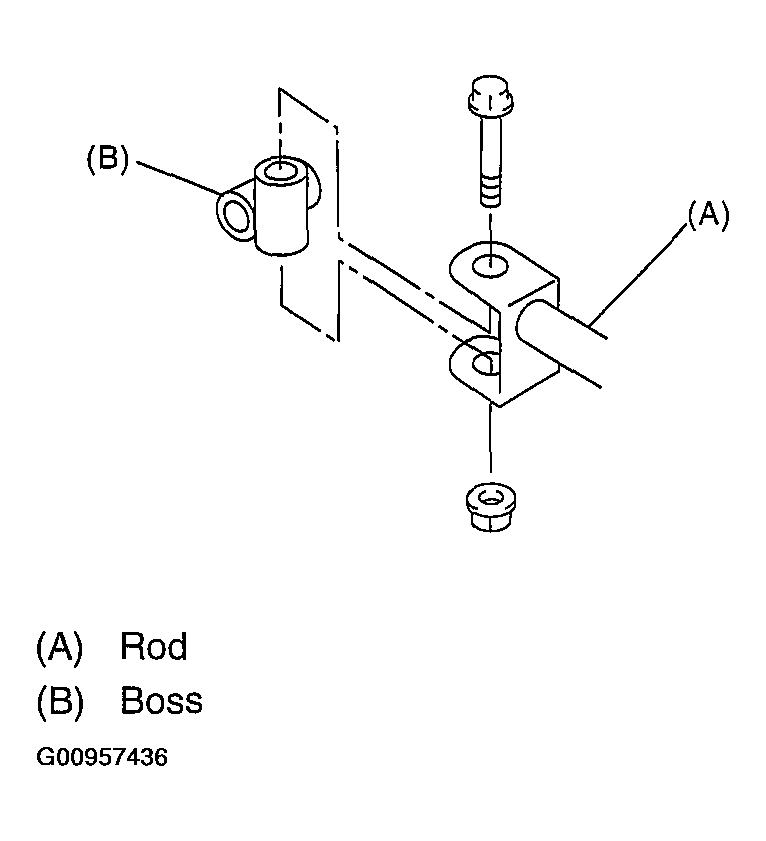

Remove the boss from rod.

Fig 8: Removing Boss From Rod
Courtesy of SUBARU OF AMERICA, INC.

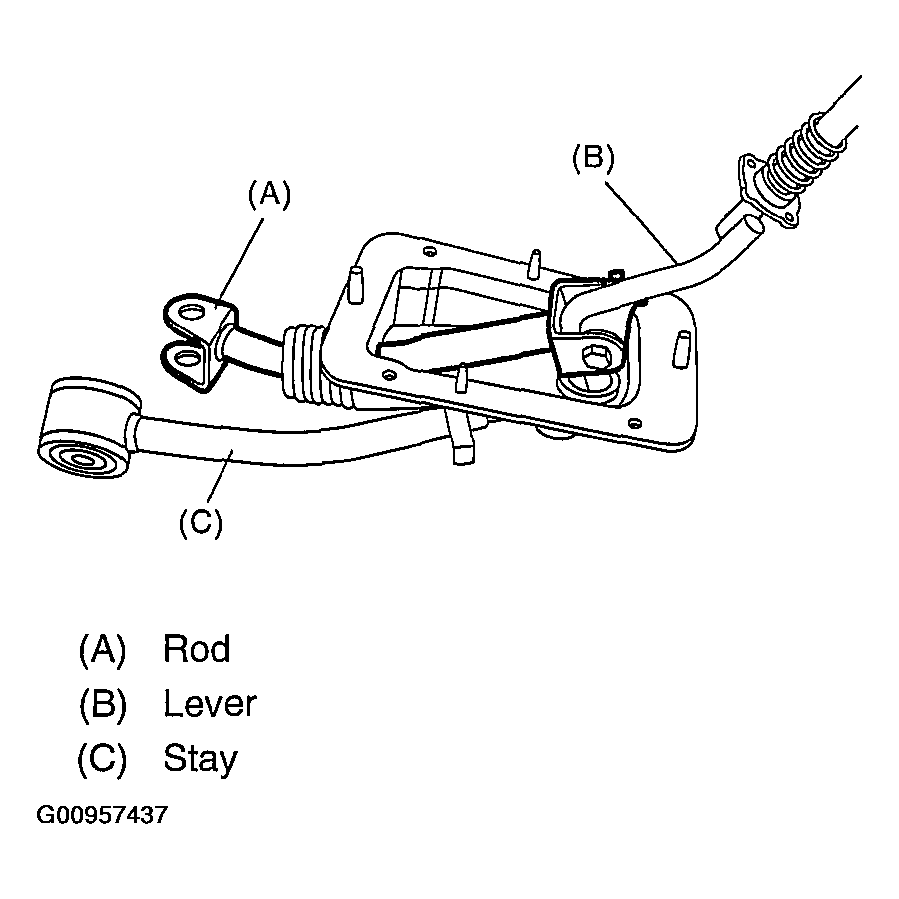

Remove the rod from lever.

Fig 9: Removing Rod From Lever
Courtesy of SUBARU OF AMERICA, INC.
Separate the rod and inner boot.

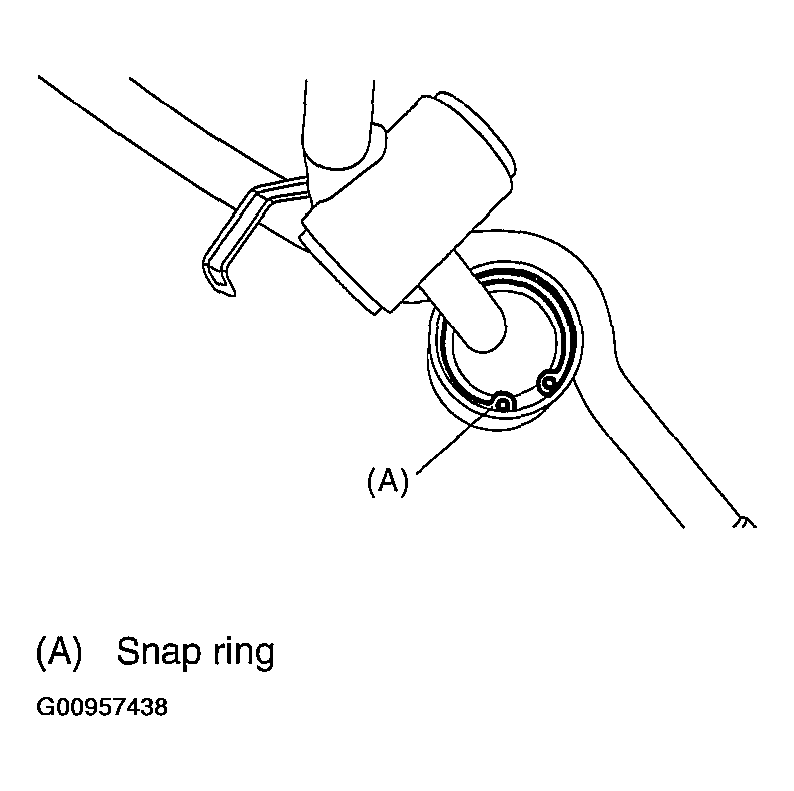

Remove the snap ring from stay.

Fig 10: Removing Snap Ring From Stay
Courtesy of SUBARU OF AMERICA, INC.

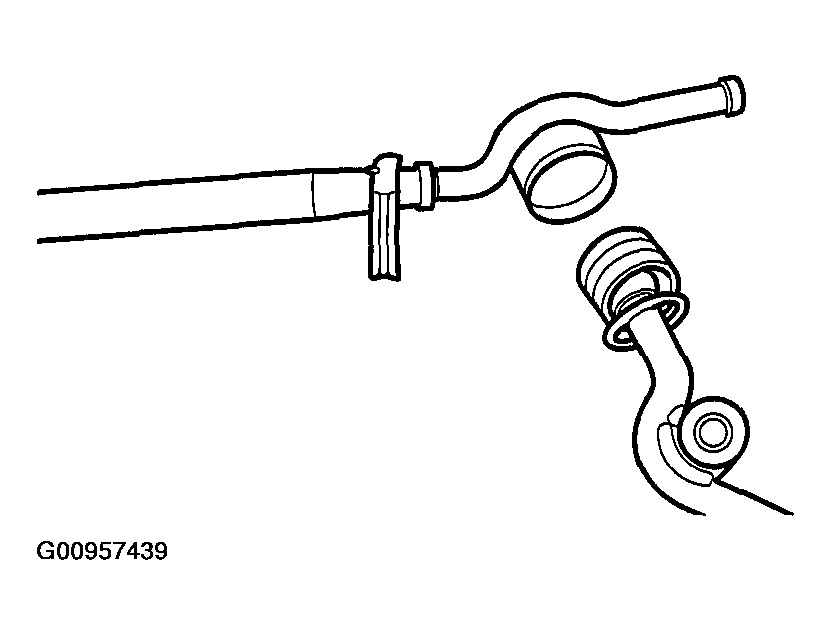

Separate the gear shift lever and stay.

Fig 11: Separating Gear Shift Lever & Stay
Courtesy of SUBARU OF AMERICA, INC.

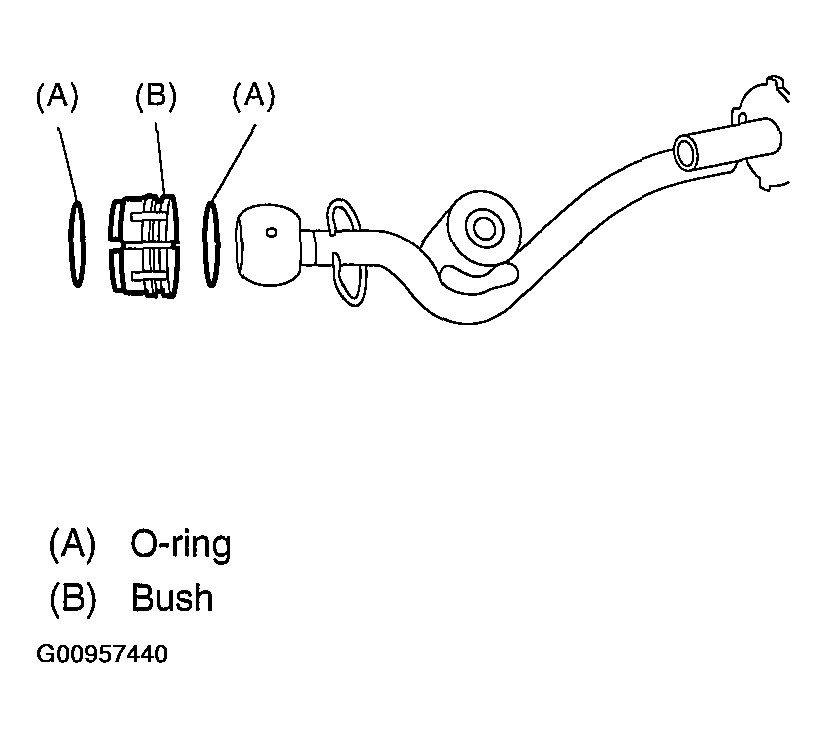

Remove the boot and bush from gear shift lever.

Fig 12: Removing Boot & Bush From Gear Shift Lever
Courtesy of SUBARU OF AMERICA, INC.

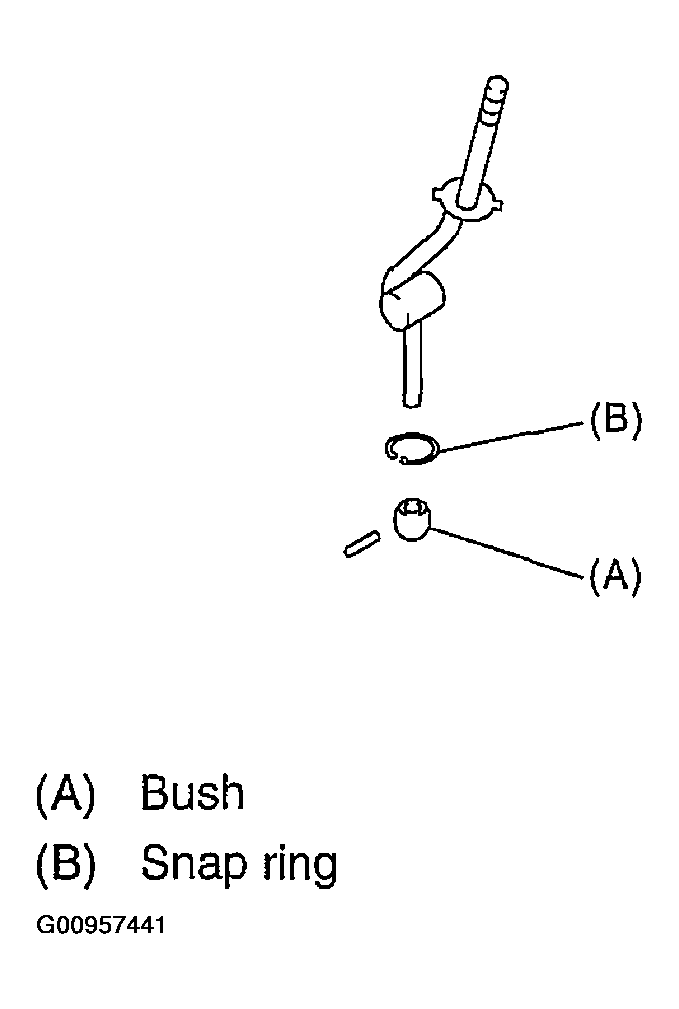

Remove the spring pin, and then remove the bush and snap ring.

Fig 13: Removing Spring Pin, Bush & Snap Ring
Courtesy of SUBARU OF AMERICA, INC.

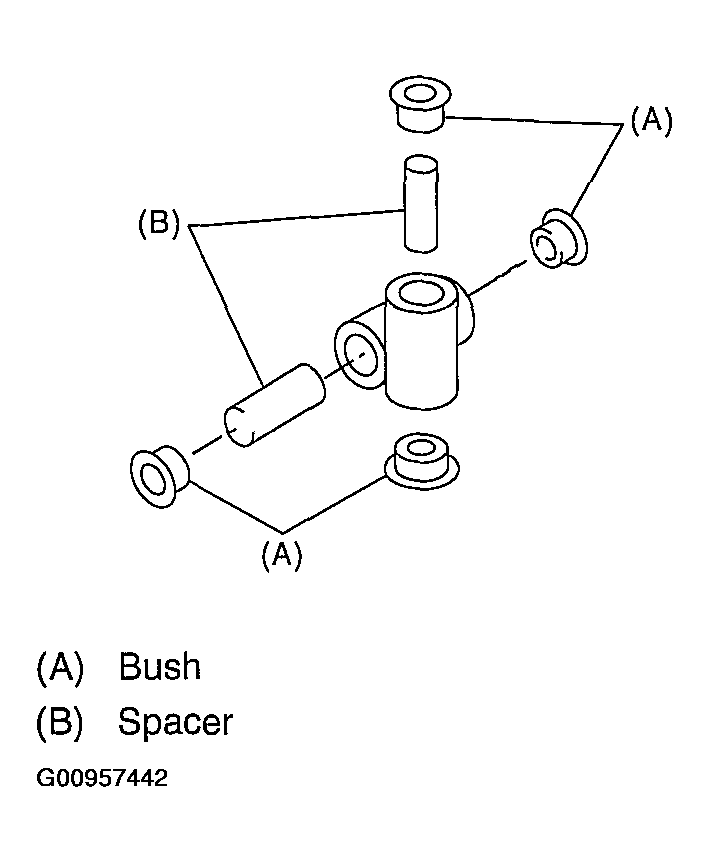

Remove the bush and spacer from boss.

Fig 14: Removing Bush & Spacer From Boss
Courtesy of SUBARU OF AMERICA, INC.

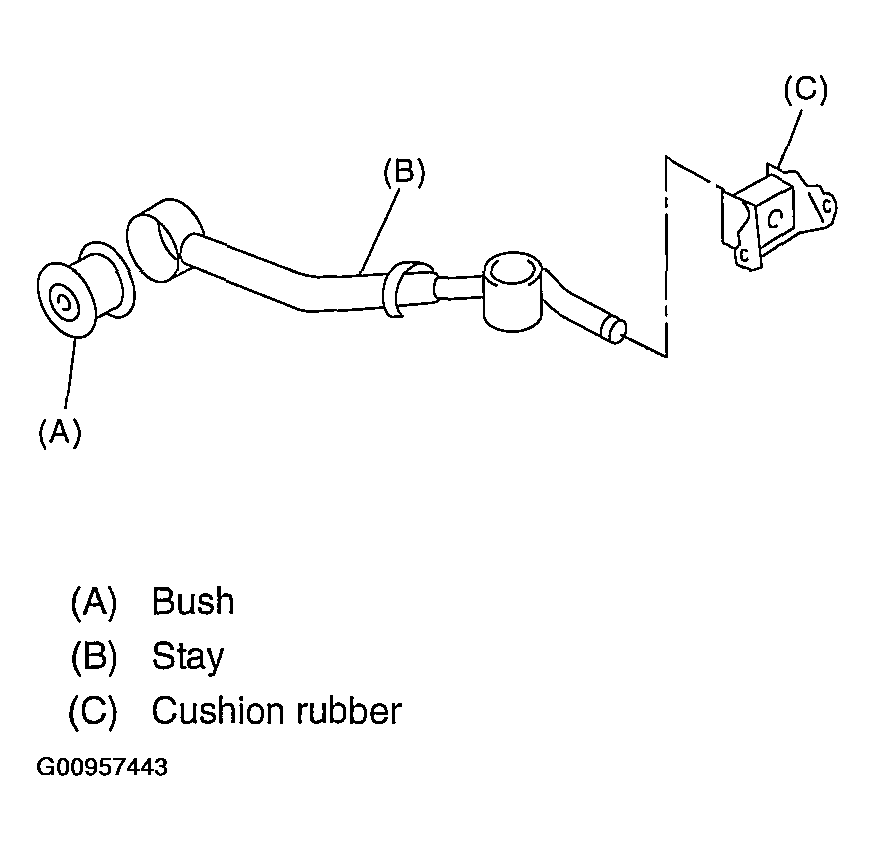

Remove the bush and cushion rubber from stay.

Fig 15: Removing Bush & Cushion Rubber From Stay
Courtesy of SUBARU OF AMERICA, INC.
