MT Gear Shift Lever: Disassembly: 5MT

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble the lock wire.

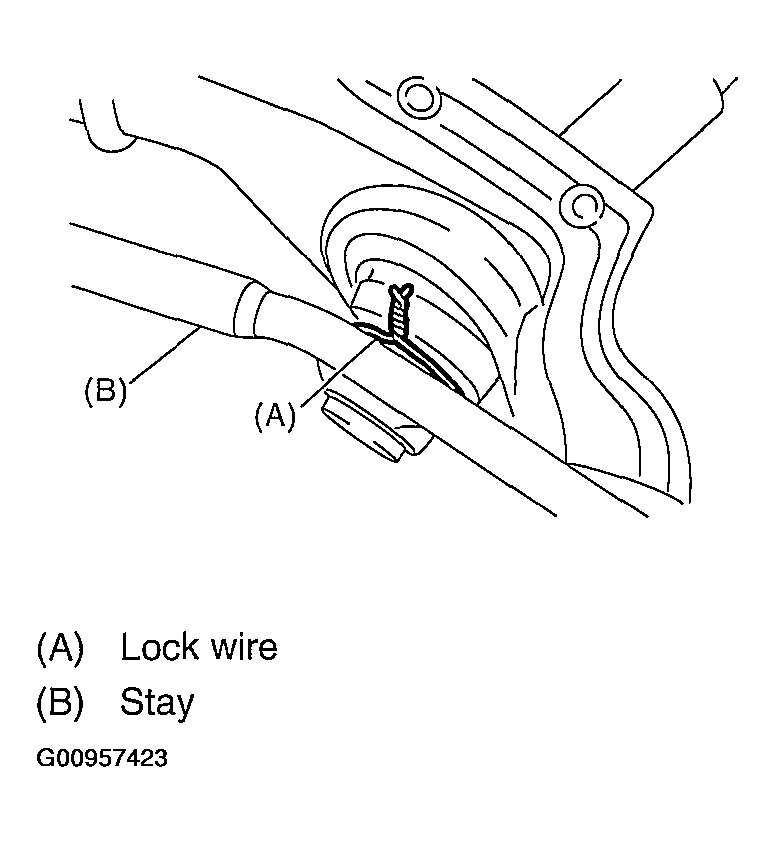

Fig 1: Removing Lock Wire
Courtesy of SUBARU OF AMERICA, INC.
Remove the rod from lever.

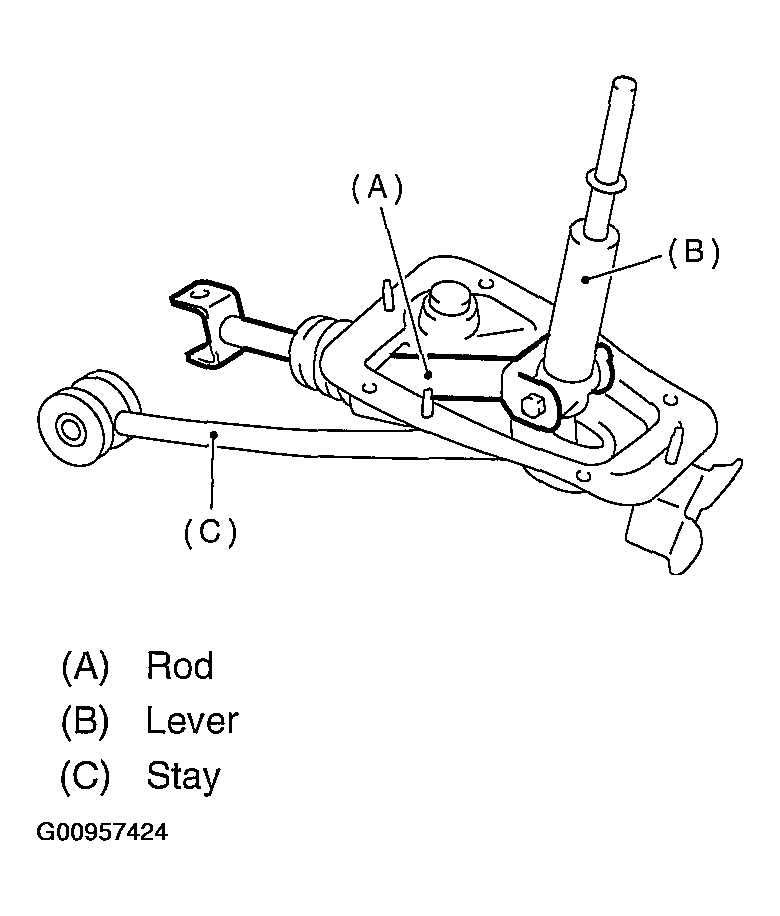

Fig 2: Removing Rod From Lever
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring from bushing B, and then disconnect the stay.

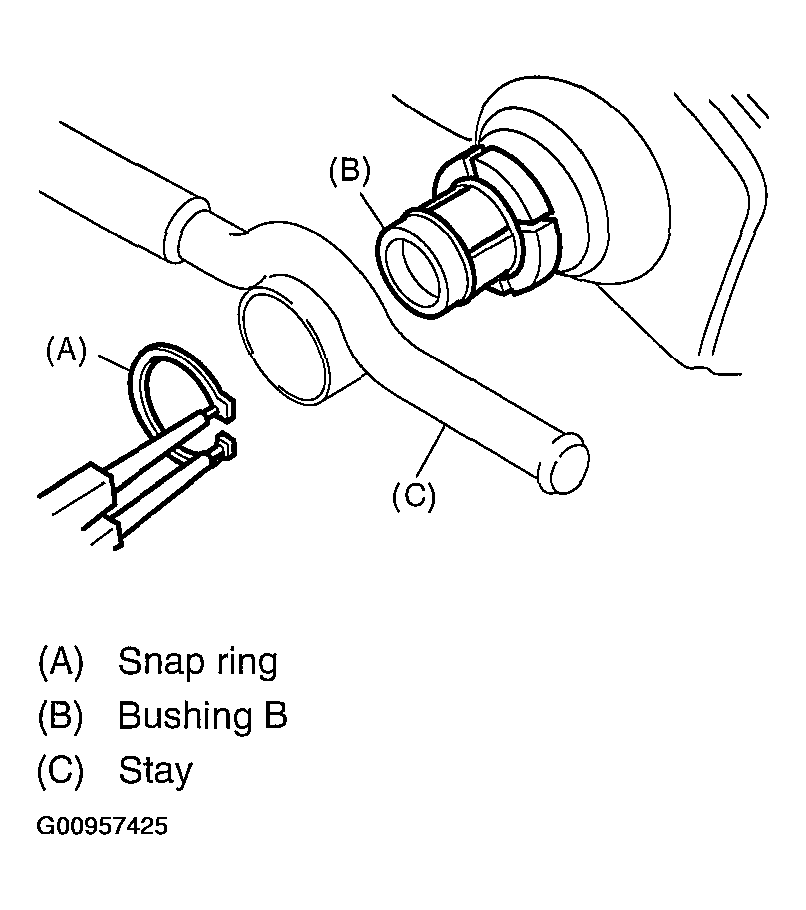

Fig 3: Removing Snap Ring From Bushing
Courtesy of SUBARU OF AMERICA, INC.
Remove the boot from gear shift lever.
Remove the bushing and cushion rubber from stay.

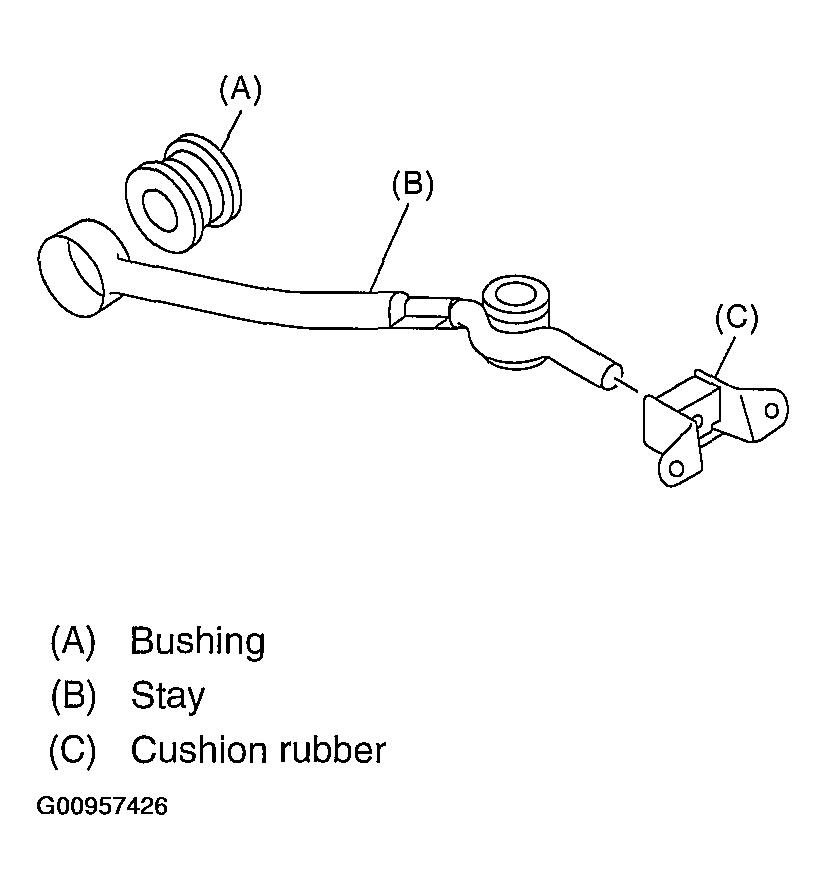

Fig 4: Removing Bushing & Cushion Rubber From Stay
Courtesy of SUBARU OF AMERICA, INC.
Remove O-ring, and then disconnect the bushing B.

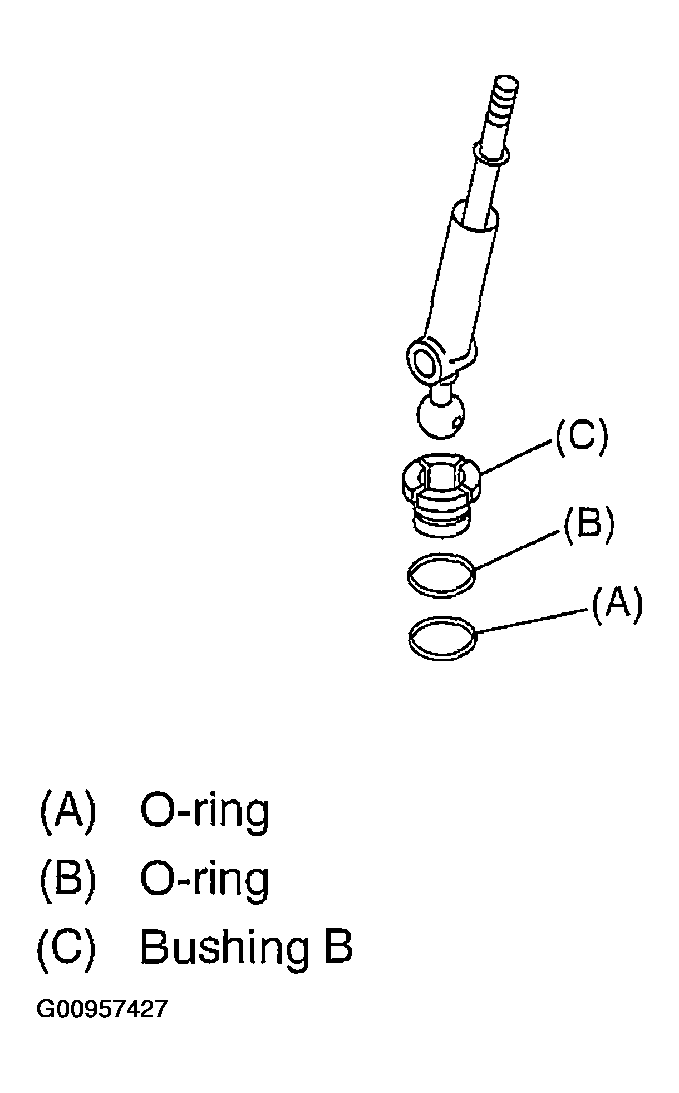

Fig 5: Removing O-Ring, & Removing Bushing B
Courtesy of SUBARU OF AMERICA, INC.
Draw out the spring pin, and then remove the bushing A from gear shift lever.

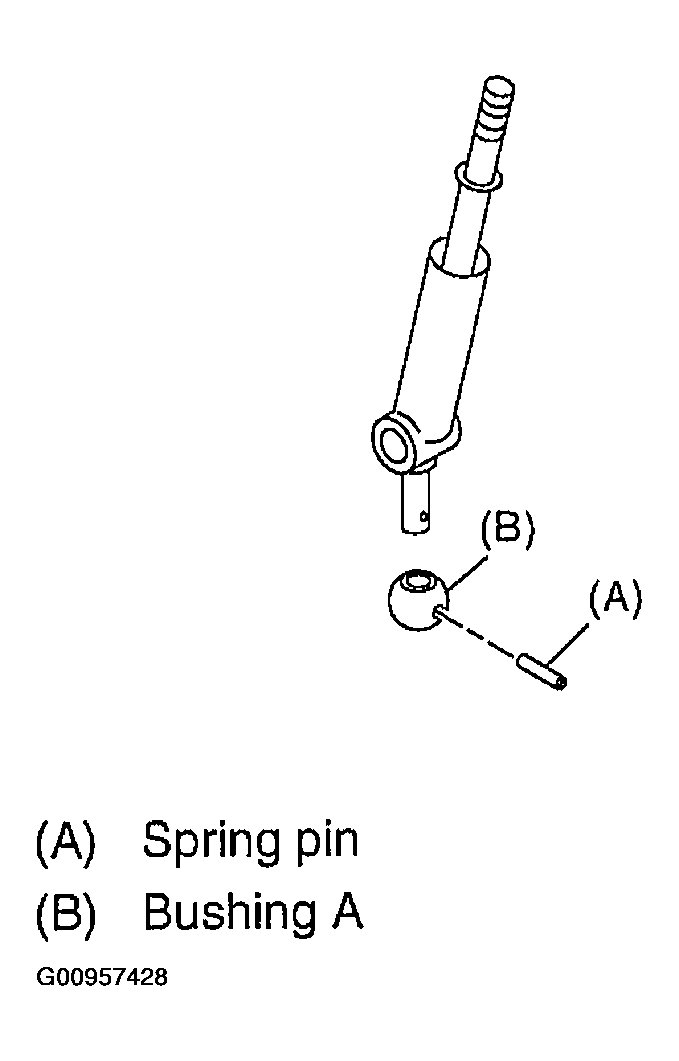

Fig 6: Removing Bushing A From Gear Shift Lever
Courtesy of SUBARU OF AMERICA, INC.
