Master Cylinder: Installation

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Install the master cylinder to body, and install the clutch pipe to master cylinder.
NOTE: Check that the pipe is routed properly.

Tightening torque:
1. T1: 15 N.m (1.5 kgf-m, 10.8 ft-lb)
2. T2: 18 N.m (1.8 kgf-m, 13.0 ft-lb)

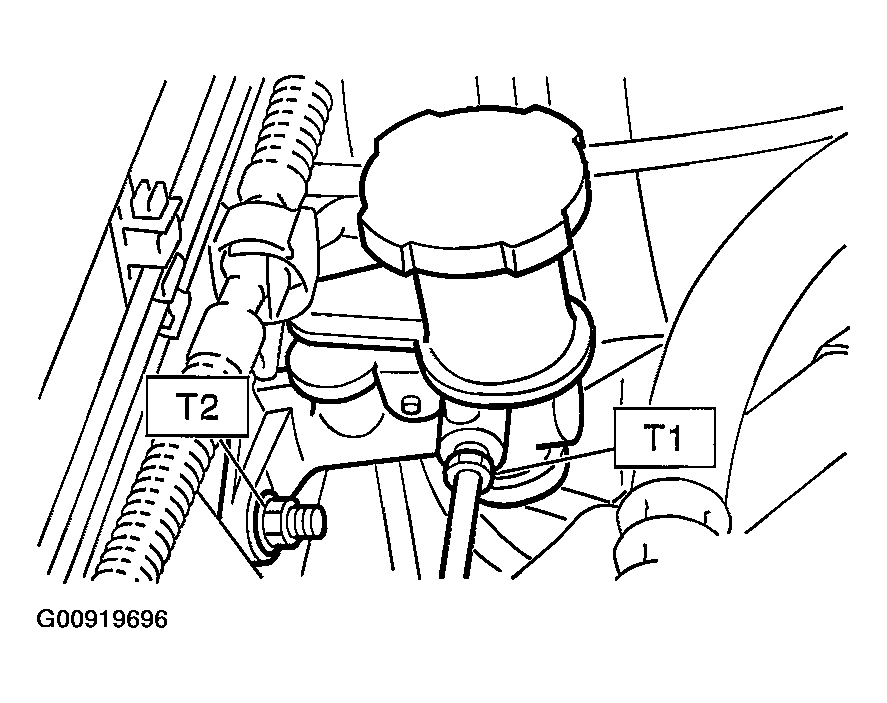

  Fig 1: Installing Master Cylinder To Body & Install Clutch Pipe To Master Cylinder
  Courtesy of SUBARU OF AMERICA, INC.
3. Apply a coat of grease to the clevis pin.
4. Connect the push rod of master cylinder to clutch pedal, and install the new clevis pin and snap pin.

  Fig 2: Connecting Push Rod Of Master Cylinder To Clutch Pedal
  Courtesy of SUBARU OF AMERICA, INC.
5. After bleeding air from the system, ensure that clutch operates properly.
6. Adjust the clutch pedal. Refer to ASSEMBLY .
7. Install the air cleaner case and air intake duct. (Except U5 model) Refer to INSTALLATION , Air Cleaner Case and INSTALLATION , Air Intake Duct.
8. Install the air intake chamber and air intake duct. (U5 models) Refer to INSTALLATION , Air Intake Chamber and INSTALLATION , Air Intake Duct.
9. Install the intercooler. (TURBO model) Refer to INSTALLATION , Intercooler.
