General Diagnostic Table: Inspection

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

CLUTCH

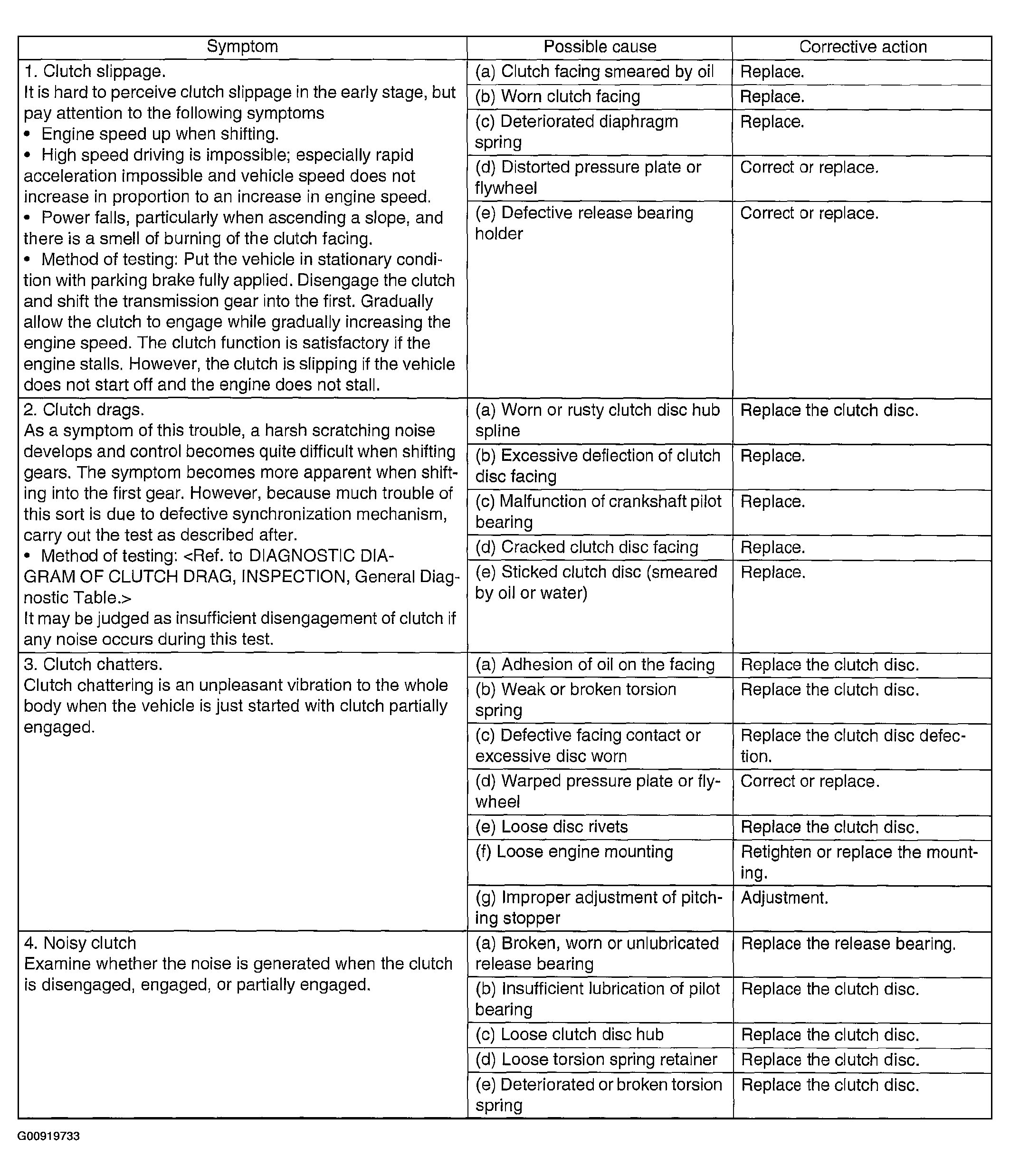

Fig 1: Clutch General Diagnostic Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

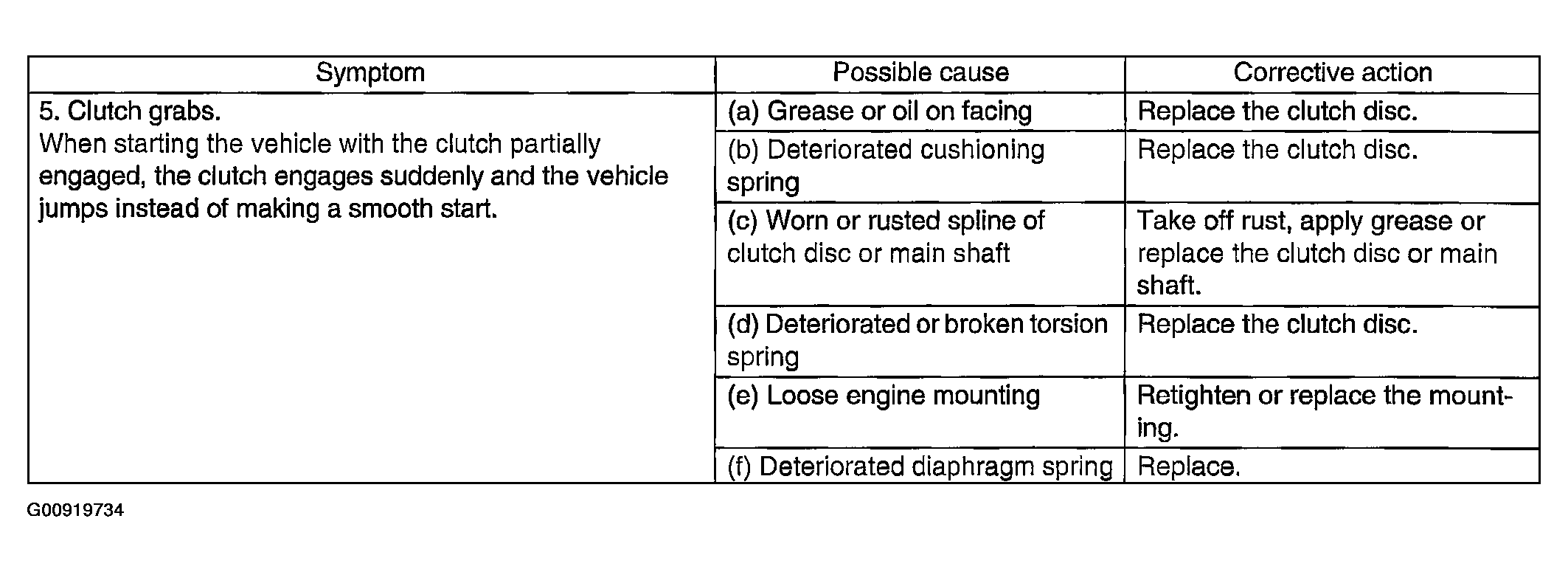

Fig 2: Clutch General Diagnostic Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
CLUTCH PEDAL

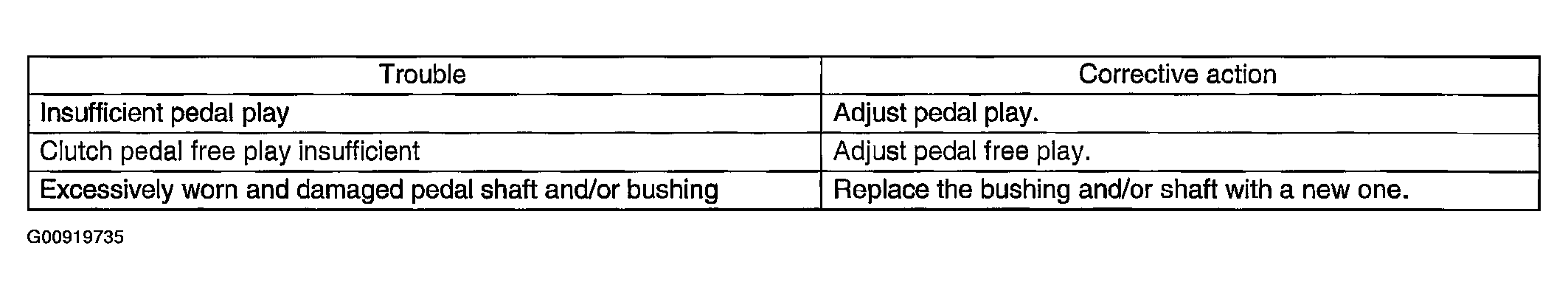

Fig 3: Clutch Pedal General Diagnostic Chart
Courtesy of SUBARU OF AMERICA, INC.
DIAGNOSTIC DIAGRAM OF CLUTCH DRAG

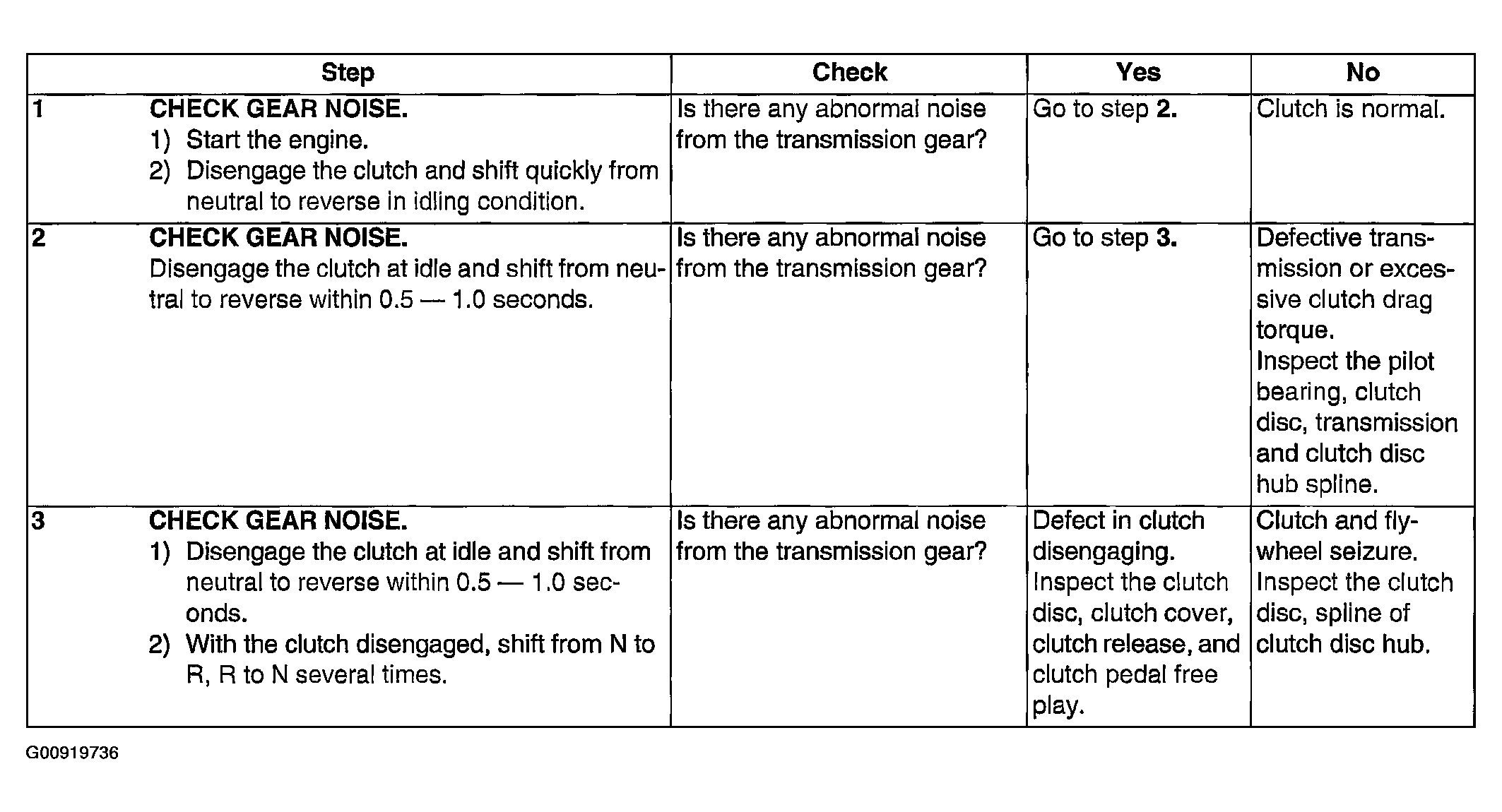

Fig 4: Clutch Drag Diagnostic Chart
Courtesy of SUBARU OF AMERICA, INC.
