Section 199 (Clutch System): Flywheel: Removal

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission assembly. Refer to REMOVAL , Manual Transmission Assembly.
  2. Remove the clutch cover and clutch disc. Refer to CLUTCH DISC AND COVER .
  3. Using the ST, remove the flywheel.
    1. ST 498497100 CRANKSHAFT STOPPER

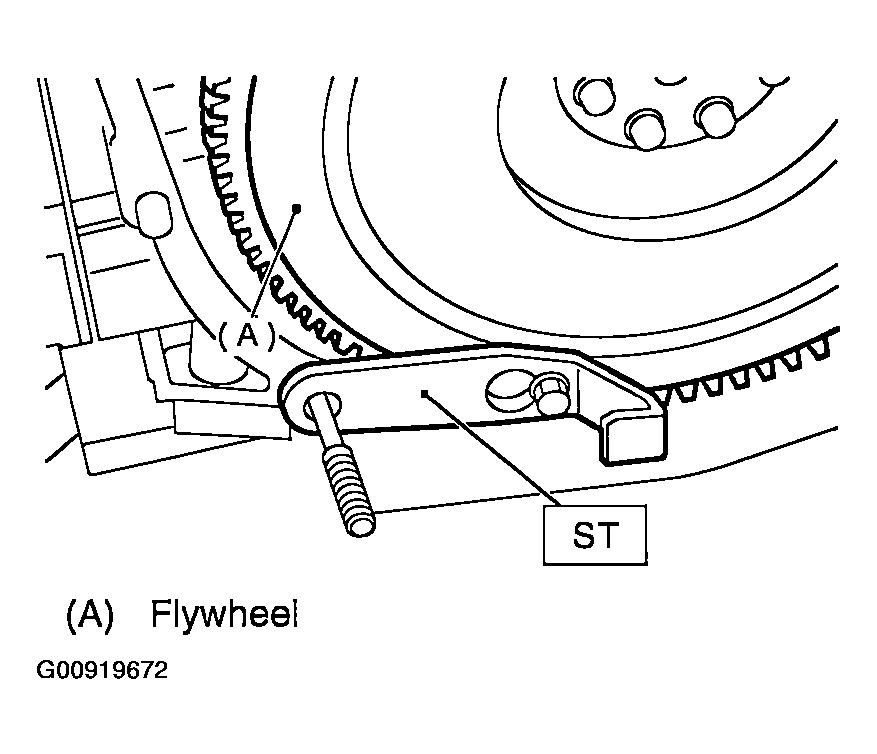

    Fig 1: Removing Flywheel
    G00919672Courtesy of SUBARU OF AMERICA, INC.
