Transfer Driven Gear: Installation

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bearing outer race to extension case and transfer case.

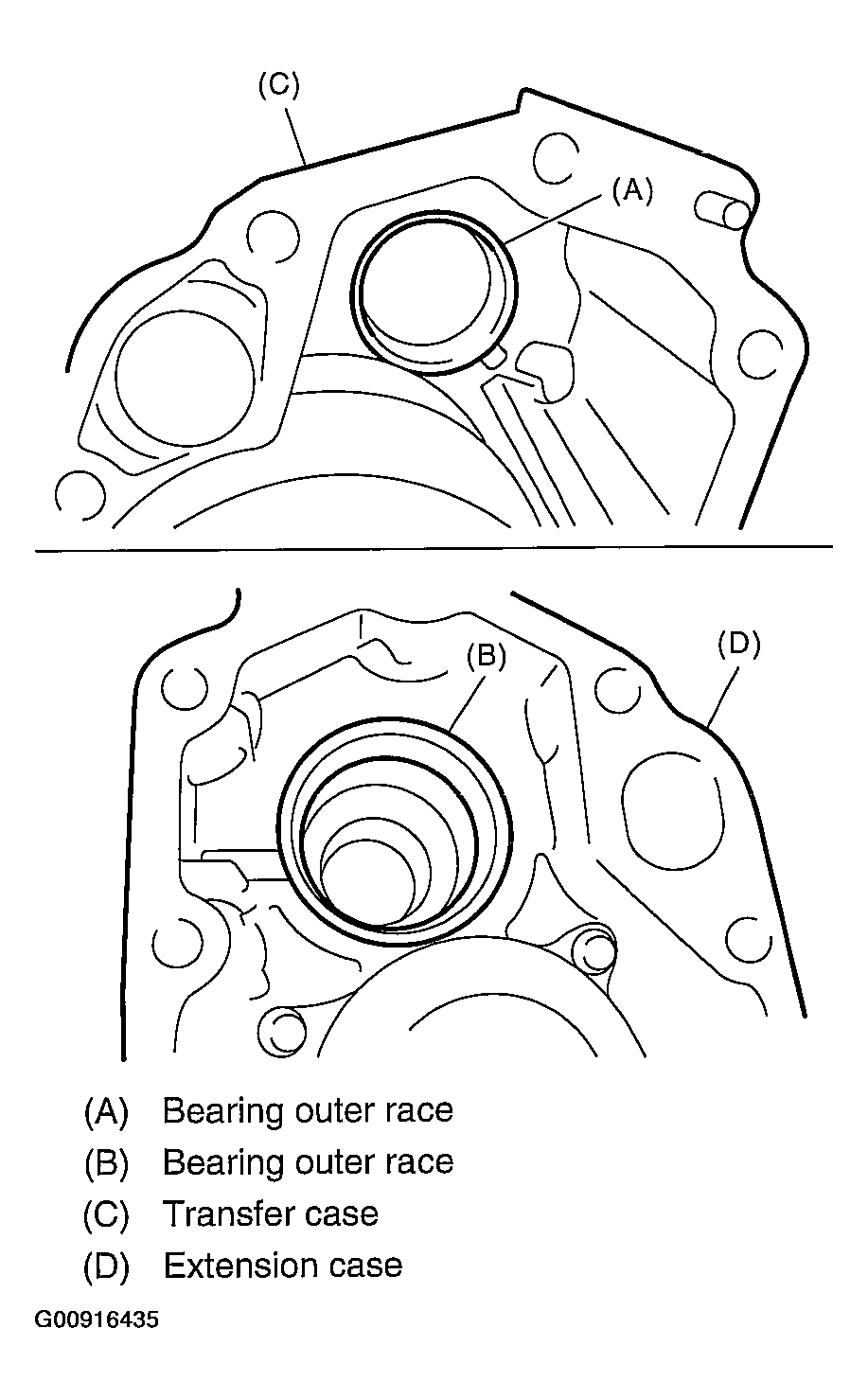

    Fig 1: Installing Bearing Outer Race To Extension Case & Transfer Case
    G00916435Courtesy of SUBARU OF AMERICA, INC.
  2. Install the transfer driven gear.

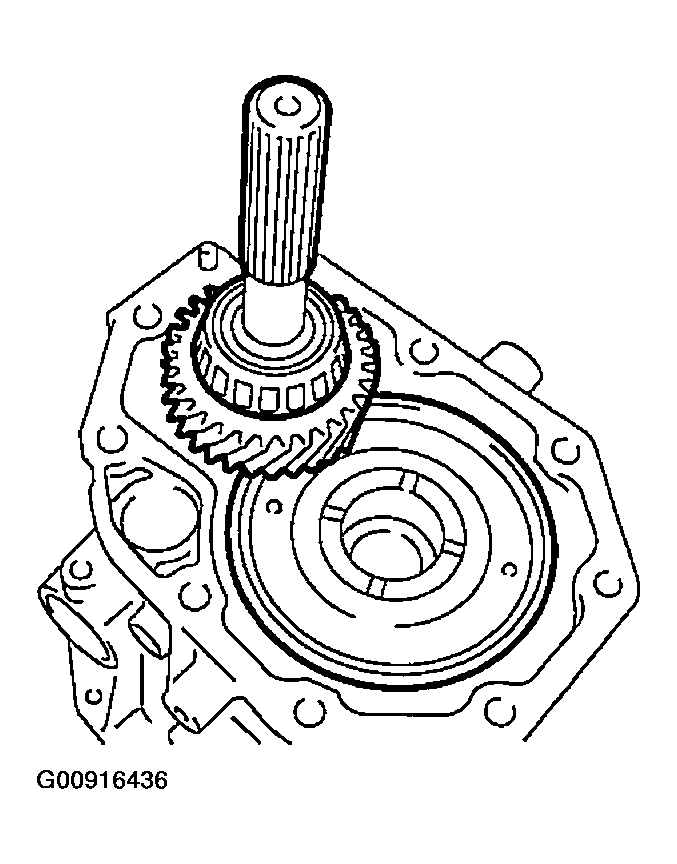

    Fig 2: Installing Transfer Driven Gear
    G00916436Courtesy of SUBARU OF AMERICA, INC.
  3. Install the transfer case and extension case assembly. Refer to INSTALLATION  , Transfer Case and Extension Case Assembly.
  4. Install the back-up light switch and neutral position switch. Refer to SWITCHES AND HARNESS  .
  5. Install the manual transmission assembly to vehicle. Refer to INSTALLATION  , Manual Transmission Assembly.
