Transfer Case and Extension Case Assembly: Removal

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the manual transmission assembly from vehicle. Refer to MANUAL TRANSMISSION ASSEMBLY  .
  2. Remove the back-up light switch and neutral position switch. Refer to SWITCHES AND HARNESS  .
  3. Remove the transfer case with extension case assembly.

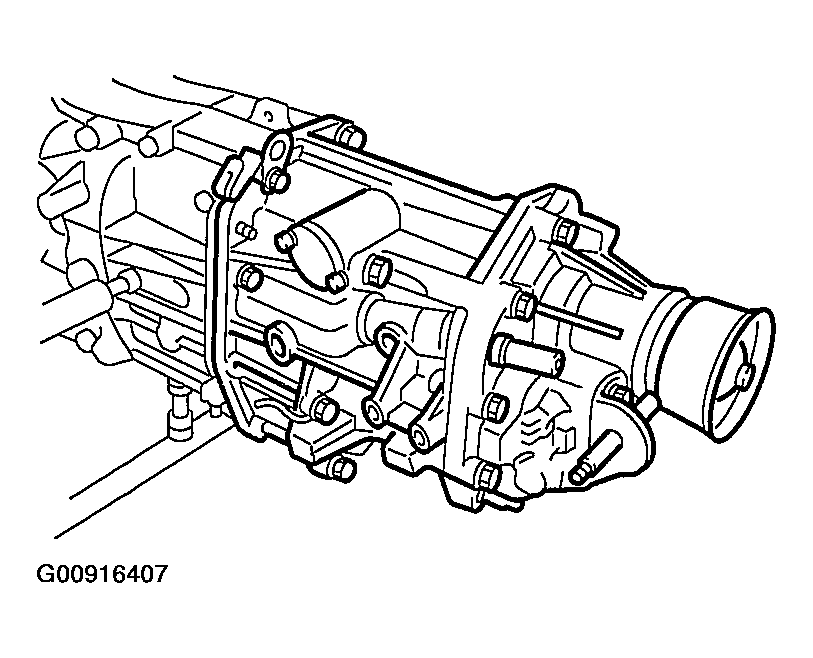

    Fig 1: Removing Transfer Case With Extension Case Assembly
    G00916407Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the shifter arm.
  5. Remove the extension case assembly.

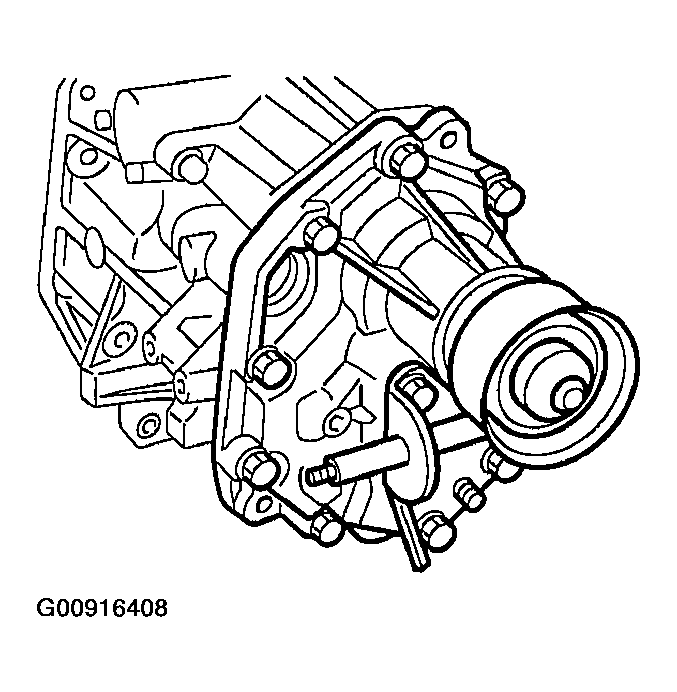

    Fig 2: Removing Extension Case Assembly
    G00916408Courtesy of SUBARU OF AMERICA, INC.
