Transfer Case and Extension Case Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

TRANSFER CASE
1. Remove the reverse check assembly. Refer to REVERSE CHECK SLEEVE .
2. Remove the oil guide.

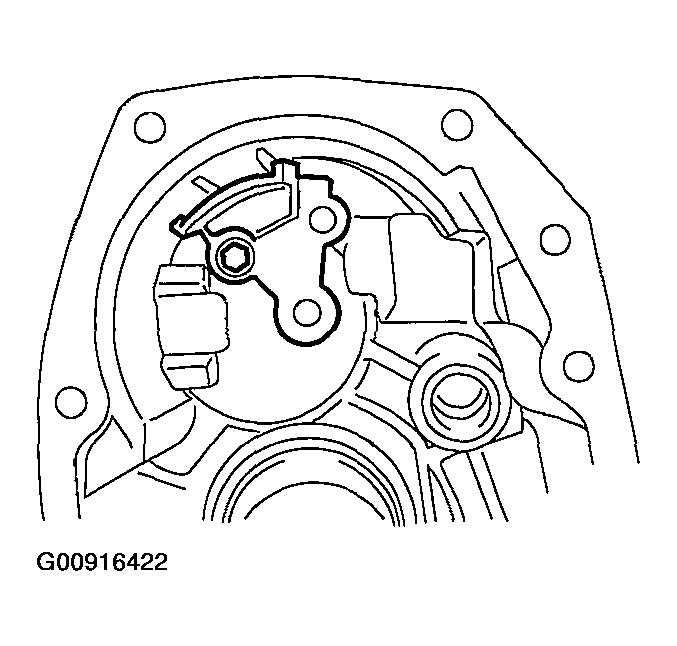

  Fig 1: Removing Oil Guide
  Courtesy of SUBARU OF AMERICA, INC.
EXTENSION CASE
1. Remove the transfer drive gear assembly. Refer to TRANSFER DRIVE GEAR .
2. Remove the shift bracket.

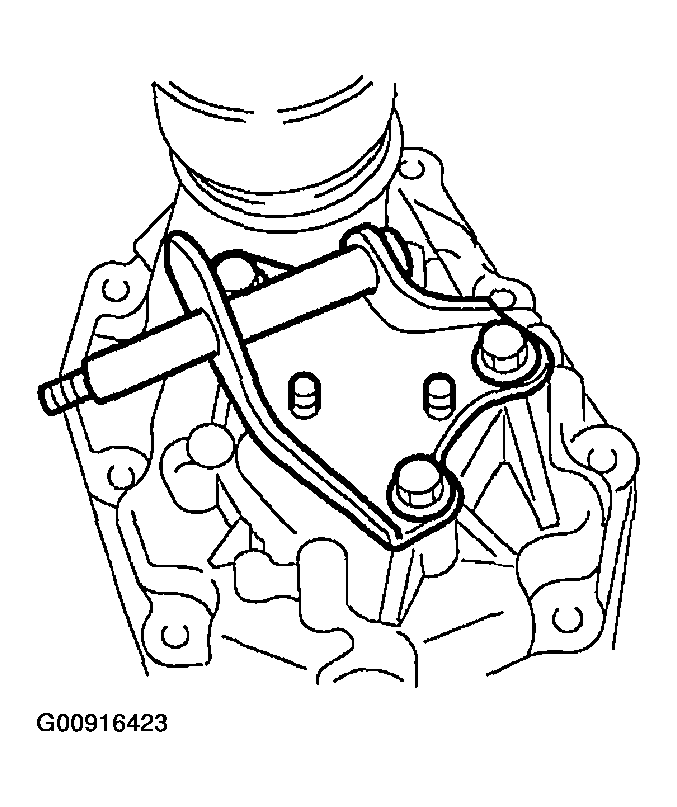

  Fig 2: Removing Shift Bracket
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove the oil seal from extension case. Refer to OIL SEAL .
