Speedometer Gear: Installation

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the washer and speedometer shaft, and press fit the oil seal with ST.
    NOTE: Use a new oil seal, if it has been removed.

    ST 899824100 or 499827000PRESS

  2. Install the vehicle speed sensor. Refer to INSTALLATION  , Vehicle Speed Sensor.
  3. Install the speedometer driven gear and snap ring.
    NOTE: Use a new snap ring, if it has been removed.

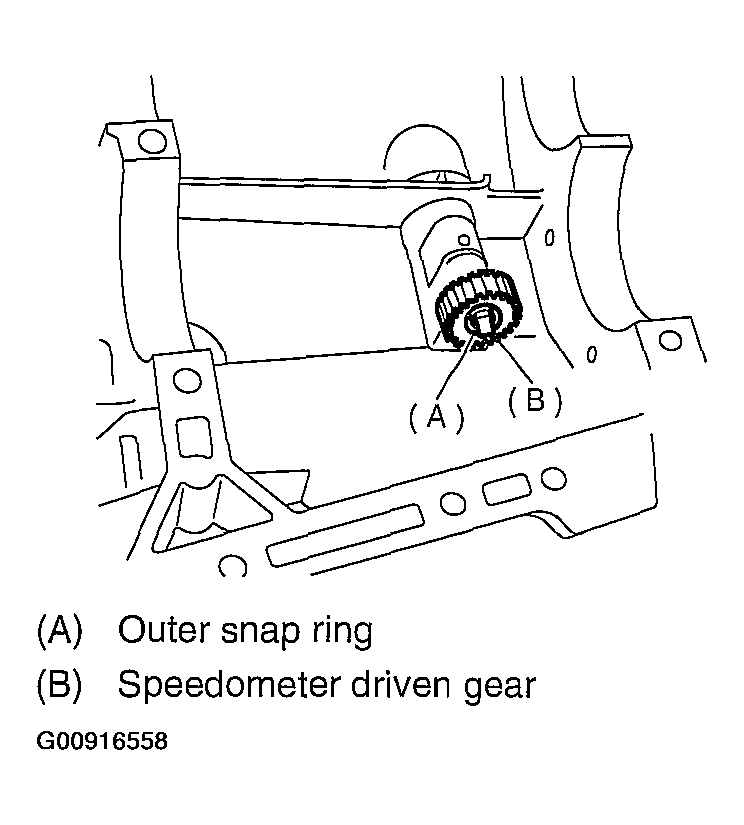

    Fig 1: Installing Speedometer Driven Gear & Snap Ring
    G00916558Courtesy of SUBARU OF AMERICA, INC.
  4. Install the transmission case. Refer to INSTALLATION  , Transmission Case.
  5. Install the transfer case with extension case assembly. Refer to INSTALLATION  , Transfer Case and Extension Case Assembly.
  6. Install the back-up light switch and neutral position switch. Refer to SWITCHES AND HARNESS  .
  7. Install the manual transmission assembly to vehicle. Refer to INSTALLATION  , Manual Transmission Assembly.
