Reverse Check Sleeve: Installation

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the reverse check sleeve.
    1. Tightening torque: 6.4 N.m (0.65 kgf-m, 4.7 ft-lb)

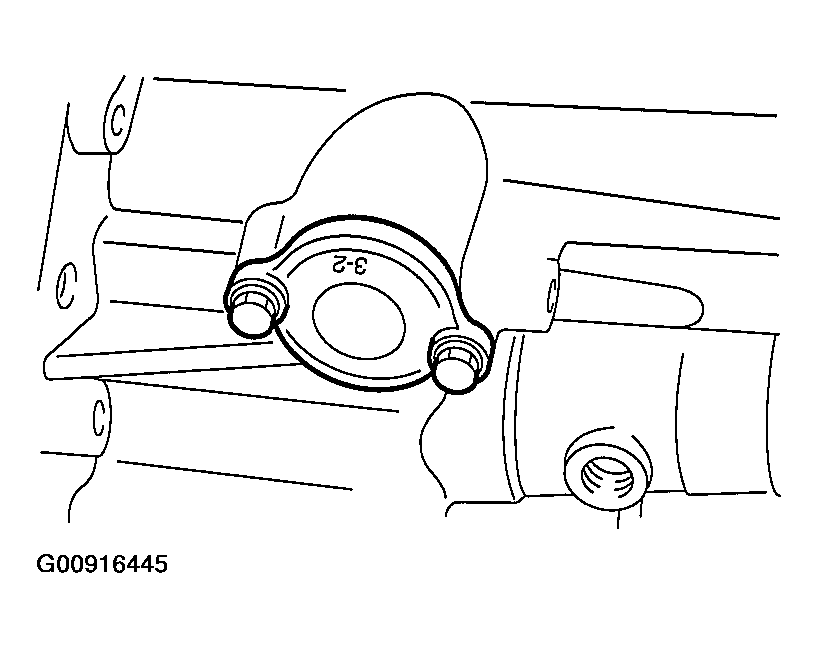

    Fig 1: Installing Reverse Check Sleeve
    G00916445Courtesy of SUBARU OF AMERICA, INC.
  2. Install the ball, spring, washer and plug to transfer case.
    1. Tightening torque: 9.75 N.m (1.0 kgf-m, 7.2 ft-lb)

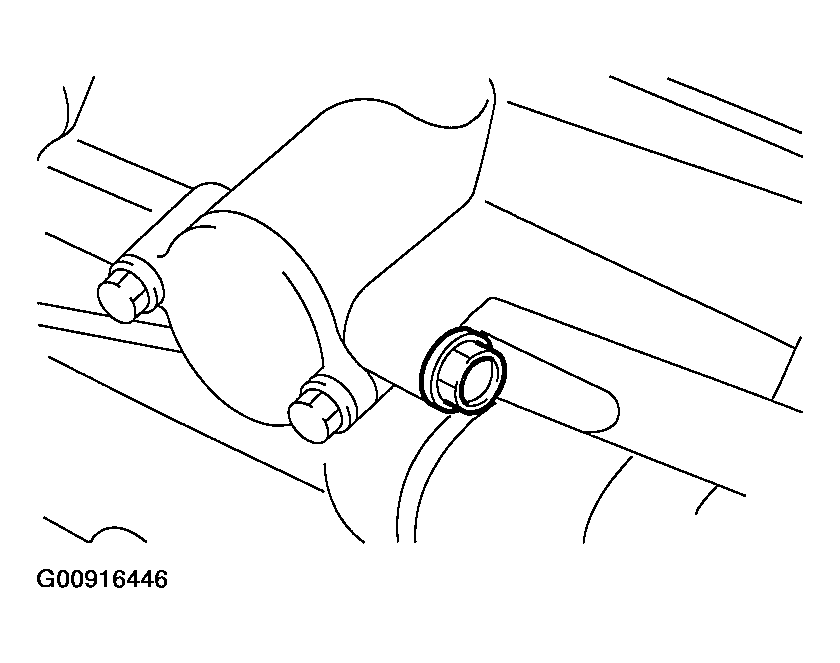

    Fig 2: Installing Ball, Spring, Washer & Plug To Transfer Case
    G00916446Courtesy of SUBARU OF AMERICA, INC.
  3. Install the shifter arm to transfer case assembly.
  4. Install the transfer case with extension case assembly. Refer to INSTALLATION  , Transfer Case and Extension Case Assembly.
  5. Install the manual transmission assembly to vehicle. Refer to INSTALLATION  , Manual Transmission Assembly.
