Reverse Check Sleeve: Assembly

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Install the return spring (1st-2nd), return spring cap, reverse accent shaft, check cam, return spring and check spring onto reverse check sleeve.
NOTE: Be sure the bent section of reverse check spring is positioned in the groove in check cam.

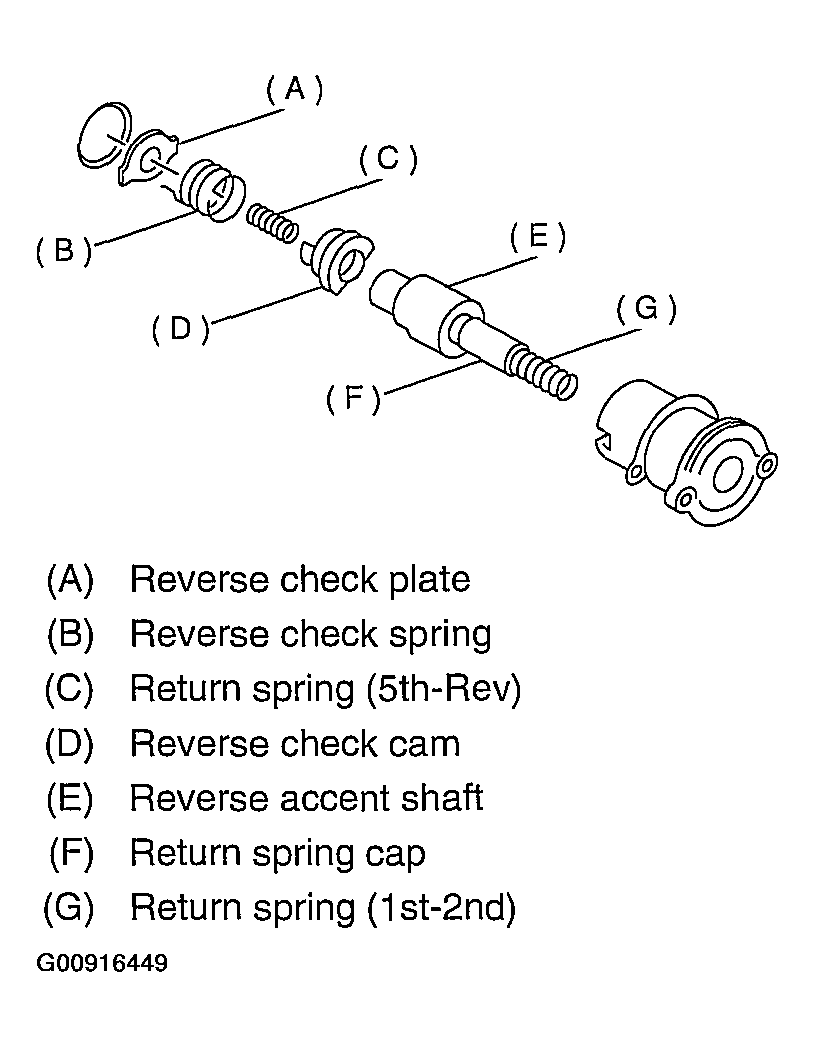

Fig 1: Installing Return Spring (1st-2nd), Return Spring Cap, Reverse Accent Shaft, Check Cam & Return Spring
Courtesy of SUBARU OF AMERICA, INC.
Hook the bent section of reverse check spring over reverse check plate.
Rotate the cam so that the protrusion of reverse check cam is at the opening in plate.
With the cam held in that position, install the plate onto reverse check sleeve and hold with snap ring.
Position the O-ring in groove in sleeve.
