Main Shaft Assembly: Adjustment

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Selection of main shaft rear plate:

Using the ST, measure the amount (A) of ball bearing protrusion from transmission main case surface and select the proper plate in the following table:

NOTE: Before measuring, tap the end of main shaft with a plastic hammer lightly in order to make the clearance zero between the main case surface and the moving flange of bearing.

ST 498147000 DEPTH GAUGE

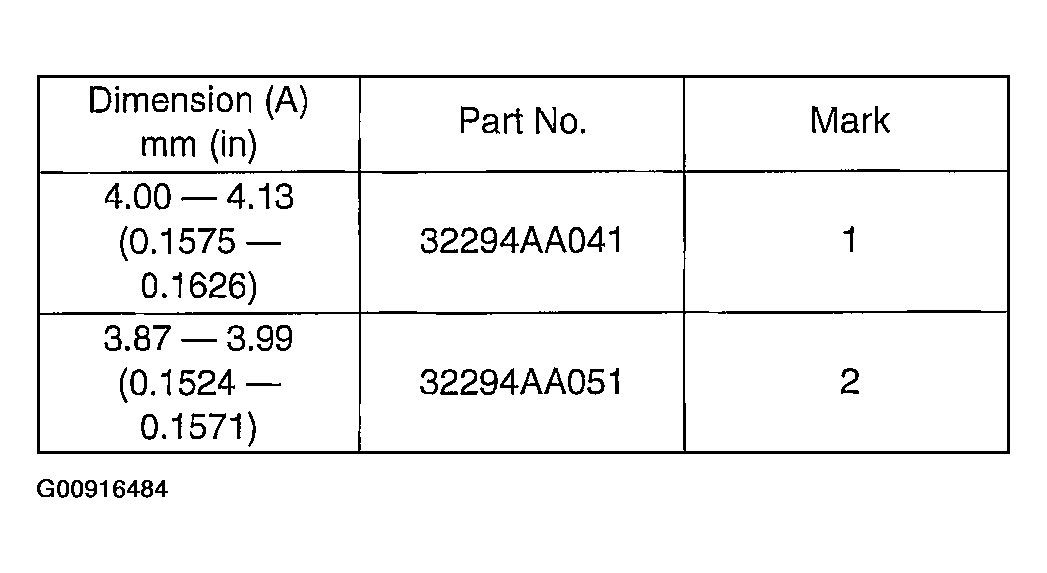

Fig 1: Ball Bearing Protrusion Dimension Chart

Courtesy of SUBARU OF AMERICA, INC.

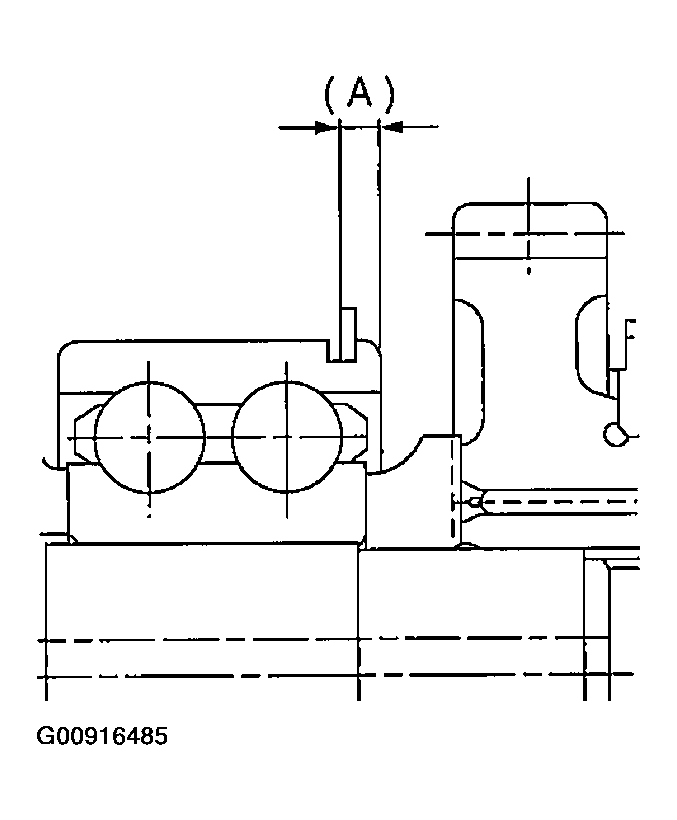

Fig 2: Measuring Amount Of Ball Bearing Protrusion From Transmission Main Case Surface

Courtesy of SUBARU OF AMERICA, INC.
