Section 198 (Manual Transmission And Differential): General Description: Preparation Tool

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOLS

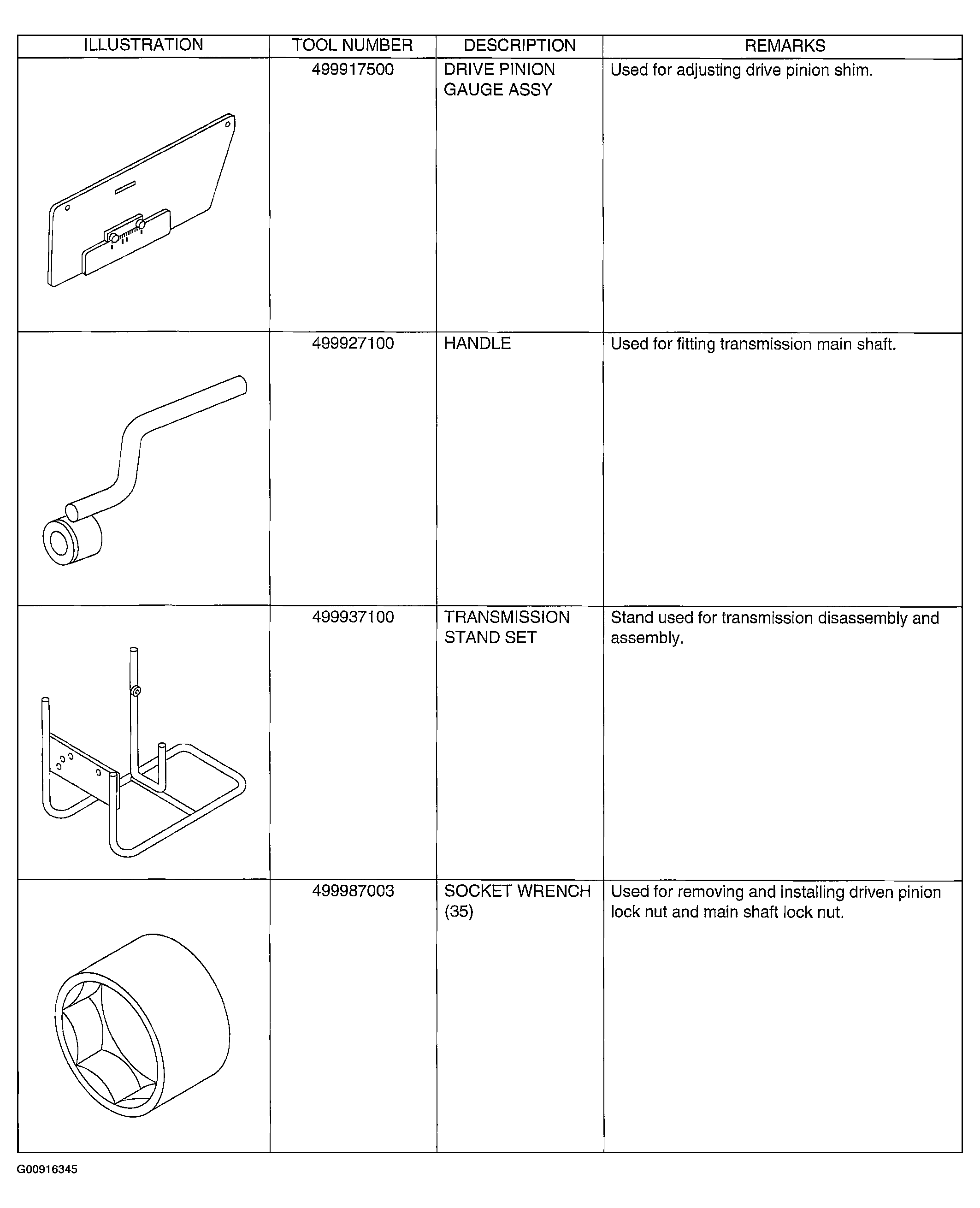

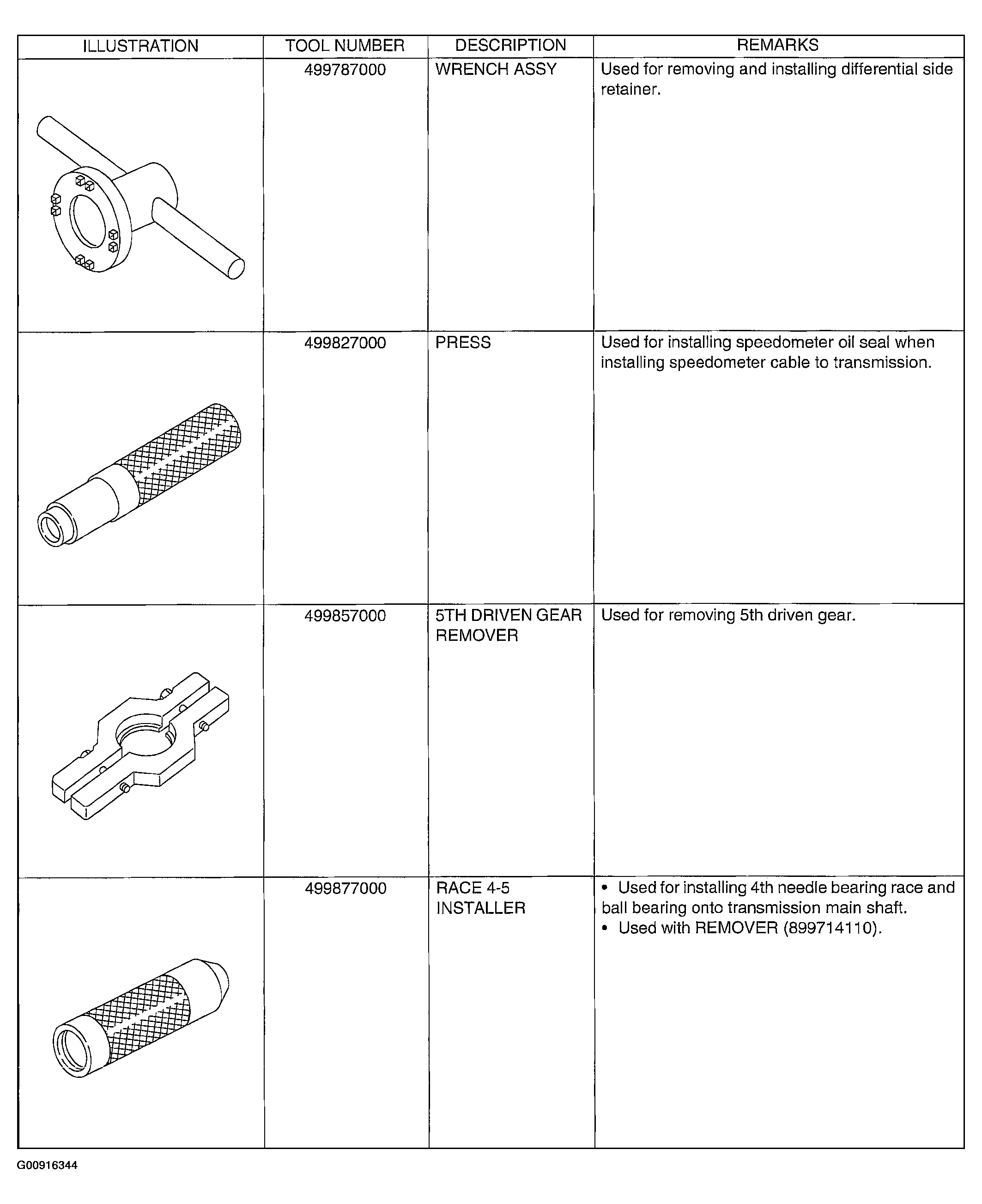

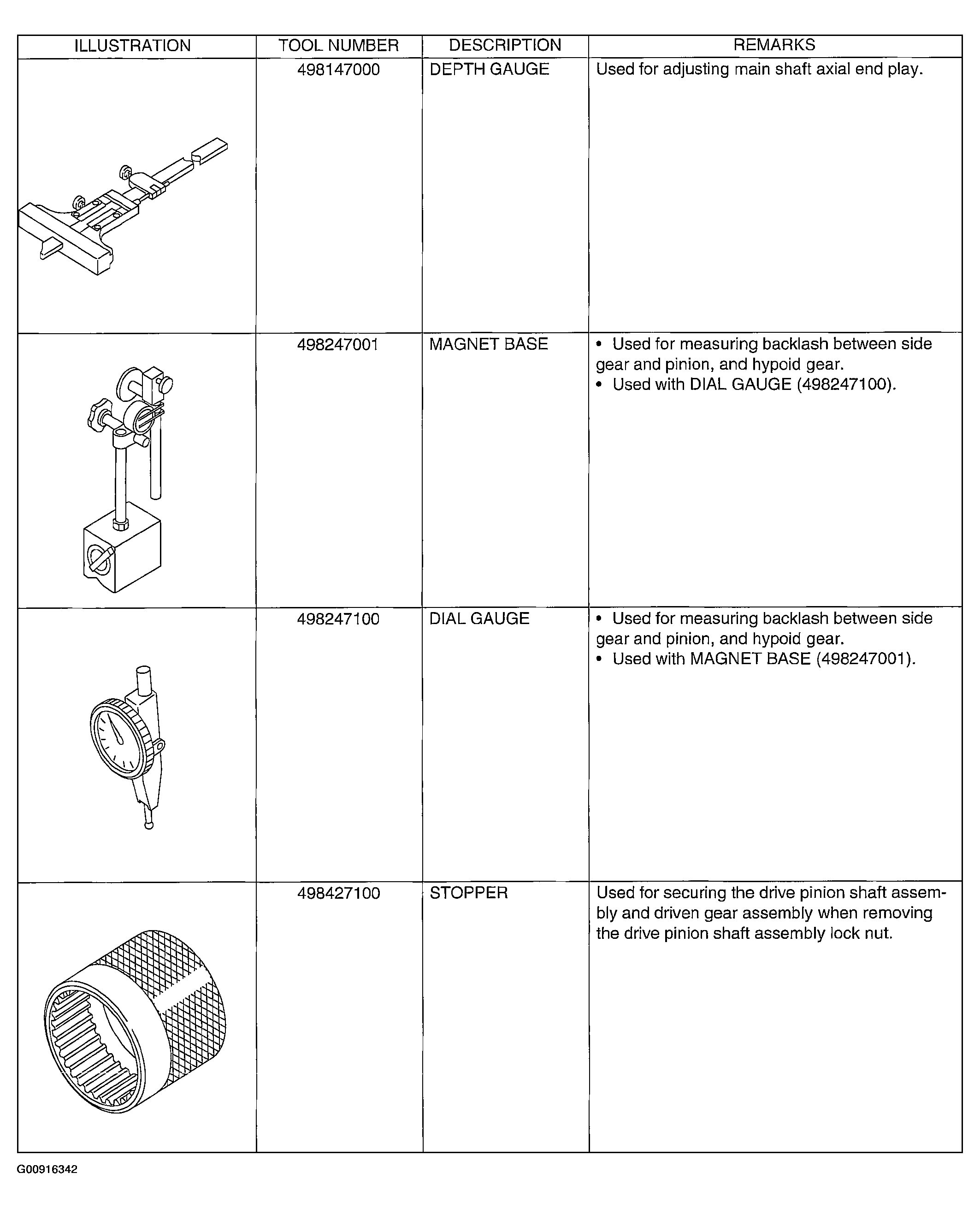

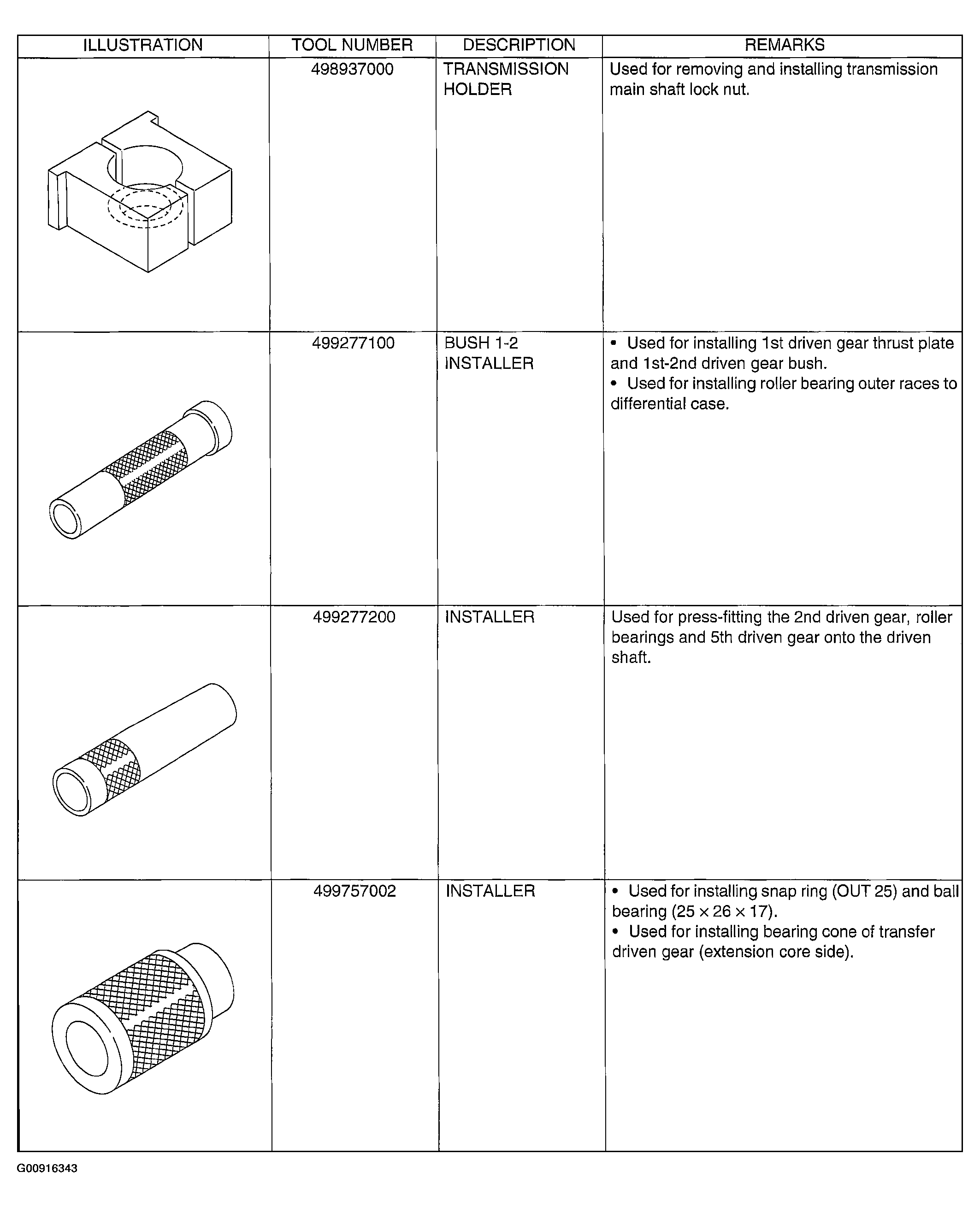

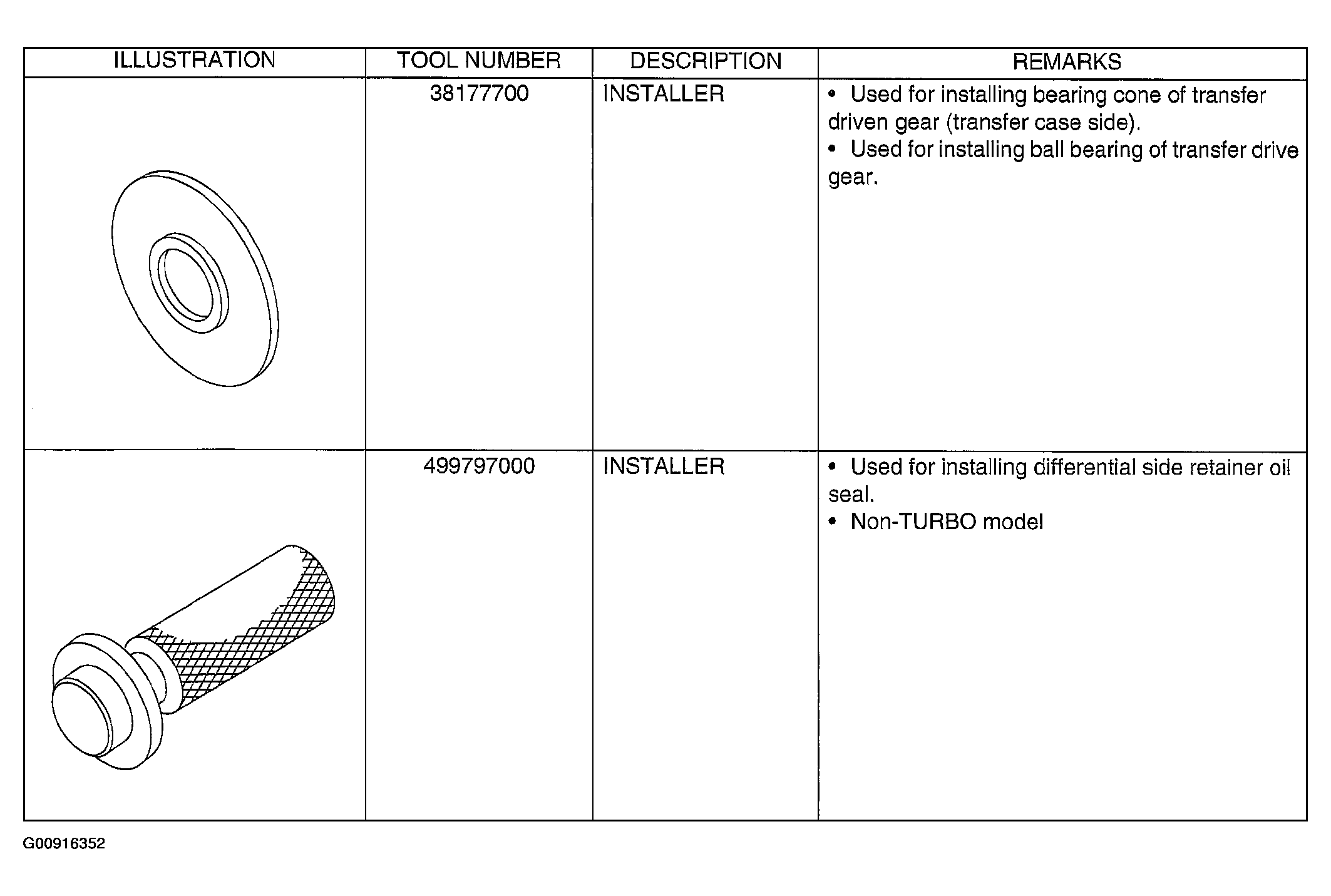

Fig 1: Identifying Special Tools (1 Of 12)
Courtesy of SUBARU OF AMERICA, INC.

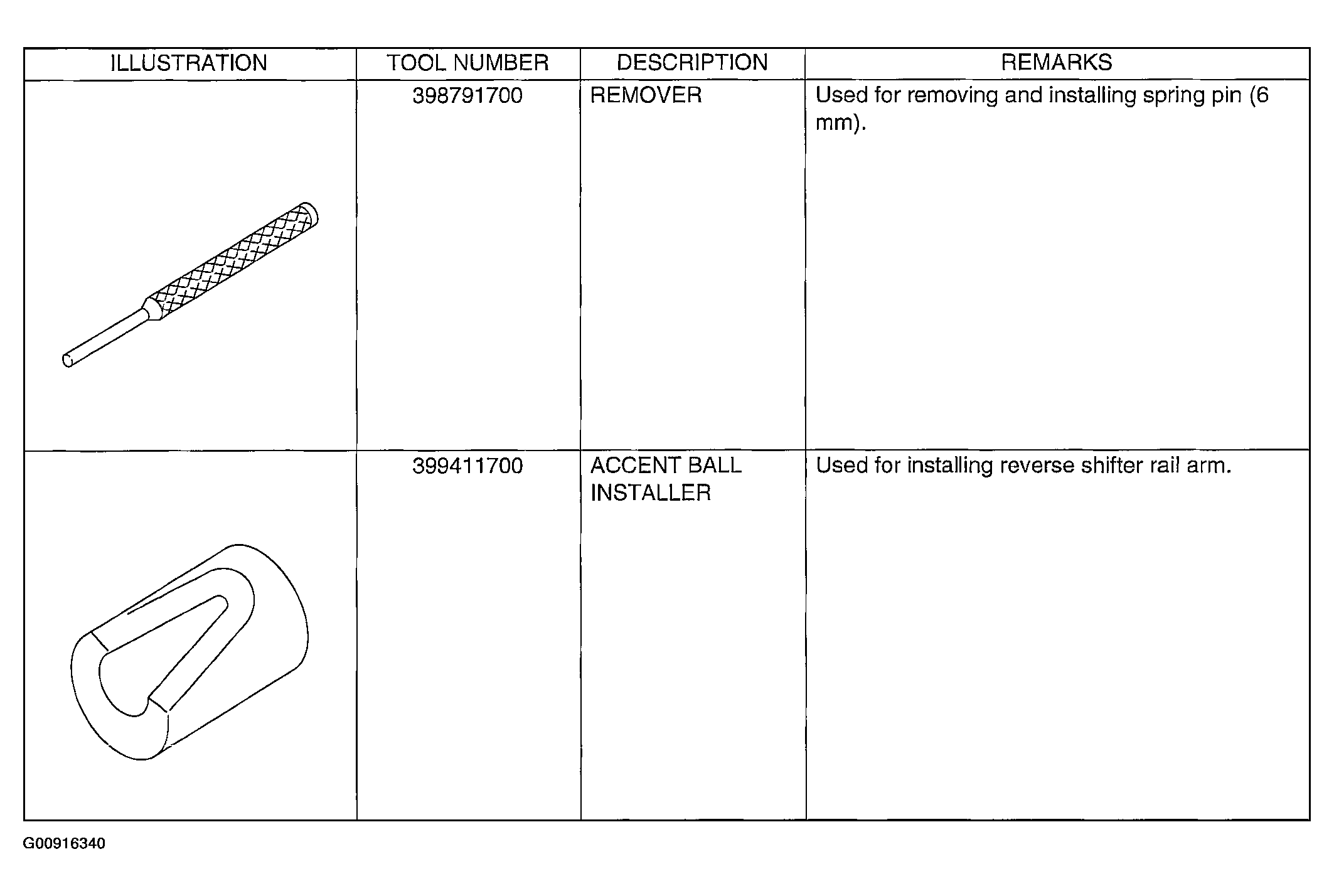

Fig 2: Identifying Special Tools (2 Of 12)
Courtesy of SUBARU OF AMERICA, INC.

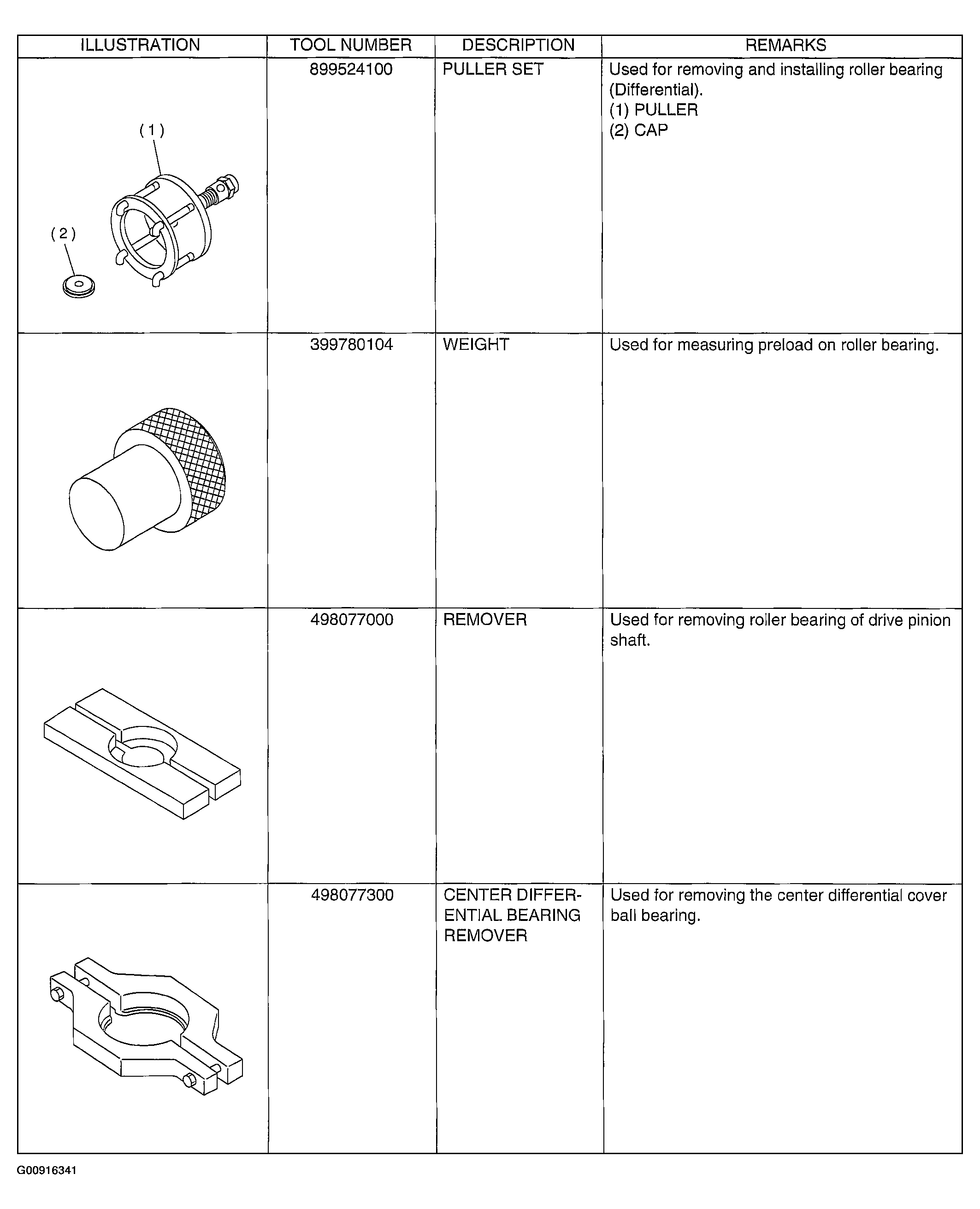

Fig 3: Identifying Special Tools (3 Of 12)
Courtesy of SUBARU OF AMERICA, INC.

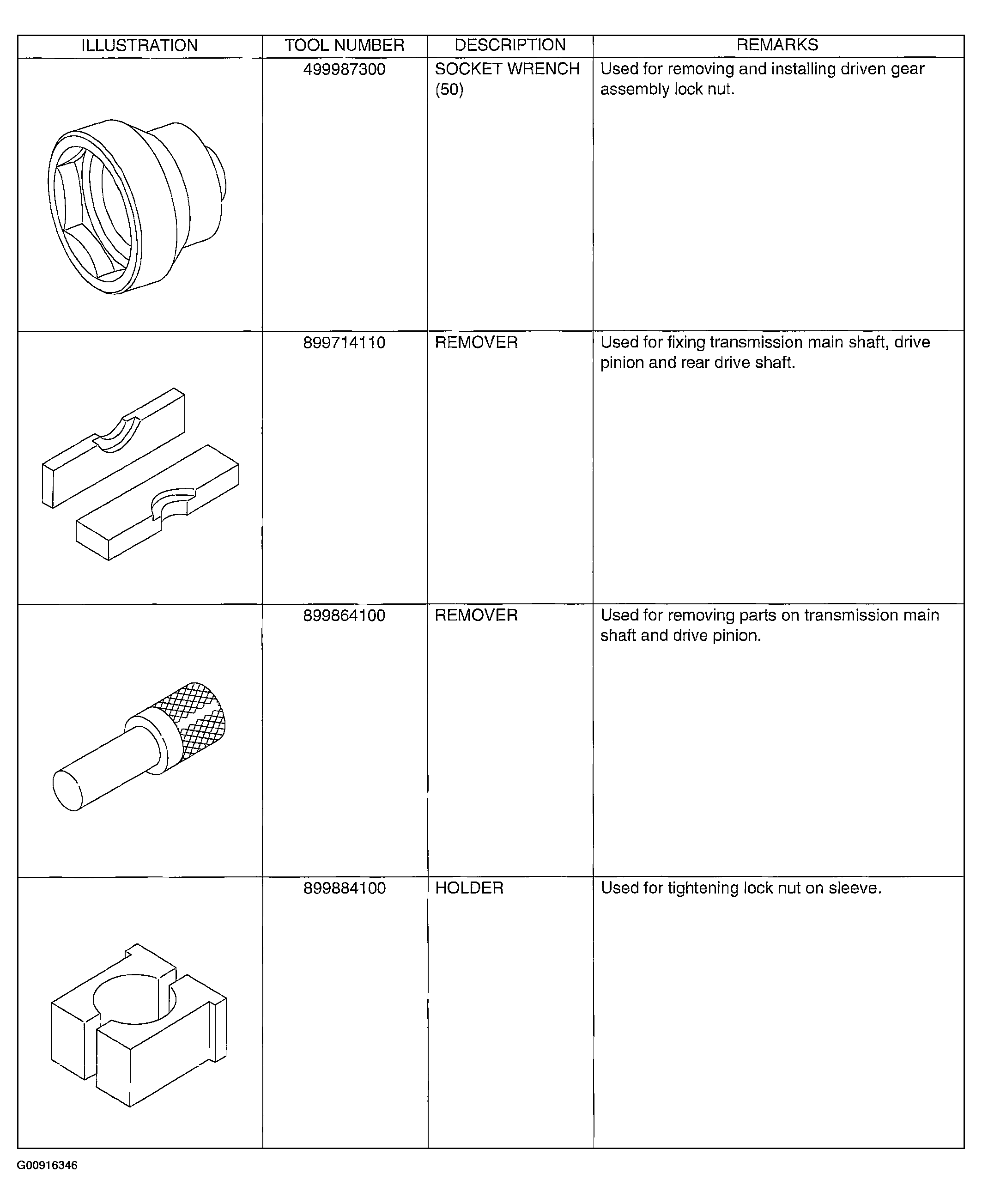

Fig 4: Identifying Special Tools (4 Of 12)
Courtesy of SUBARU OF AMERICA, INC.

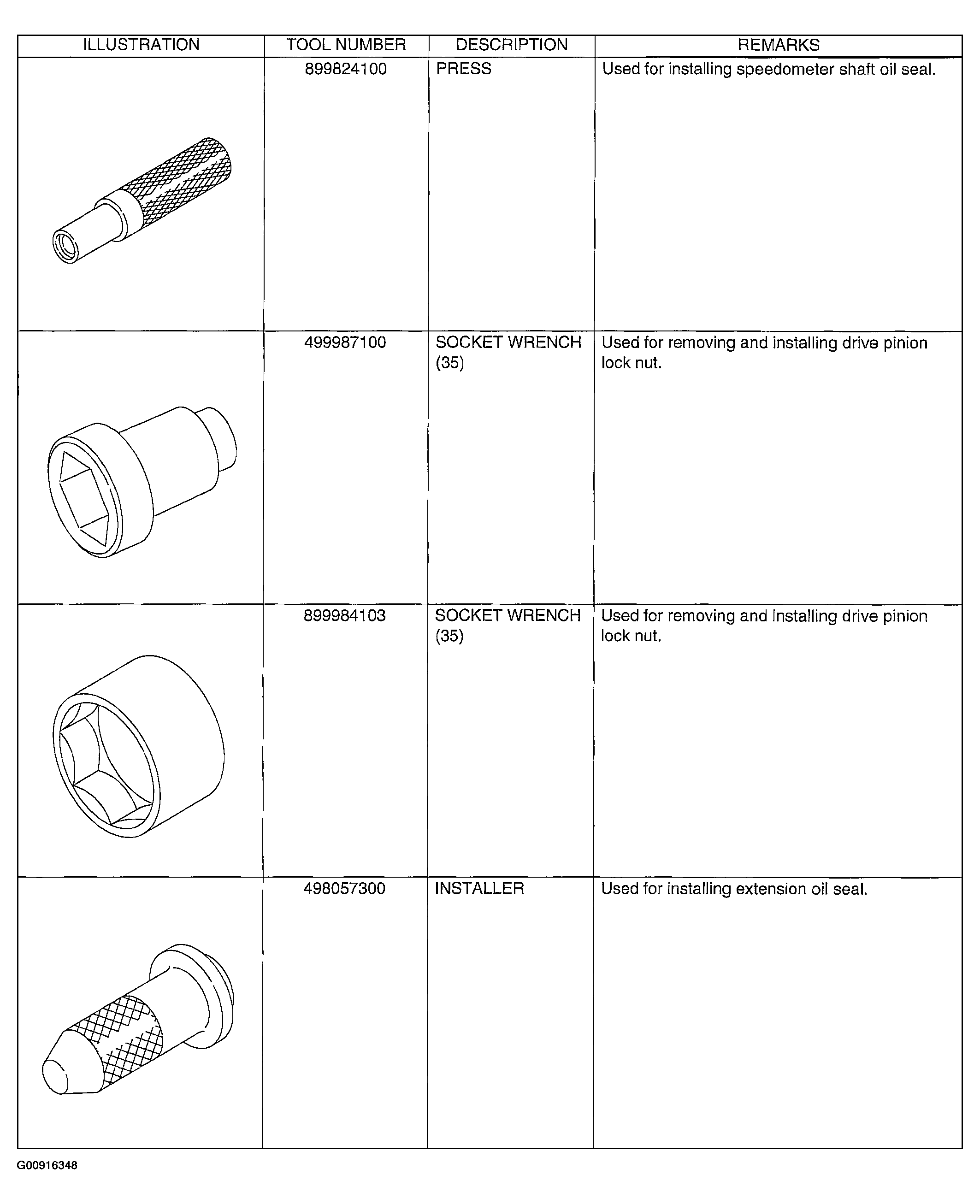

Fig 5: Identifying Special Tools (5 Of 12)
Courtesy of SUBARU OF AMERICA, INC.

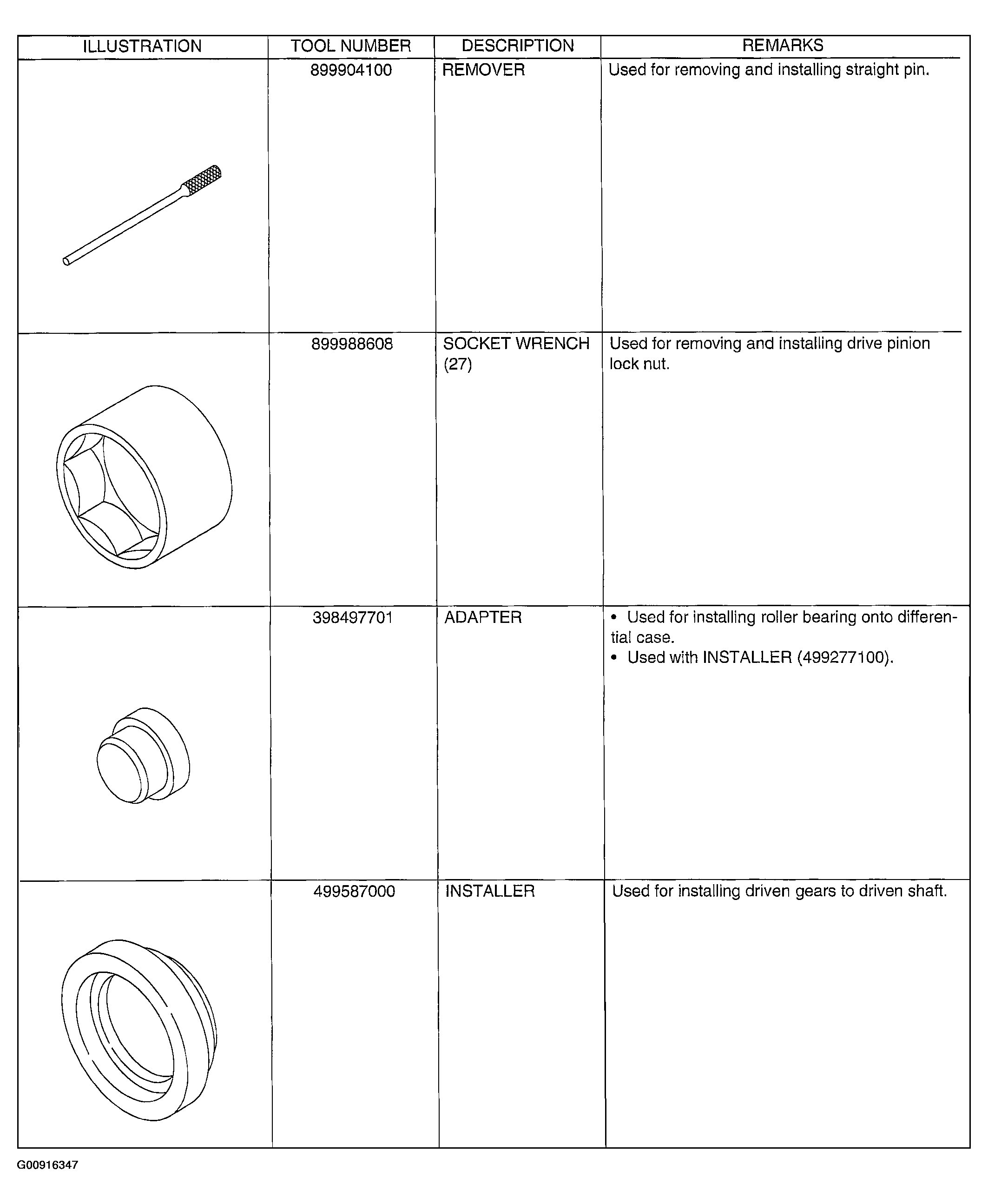

Fig 6: Identifying Special Tools (6 Of 12)
Courtesy of SUBARU OF AMERICA, INC.

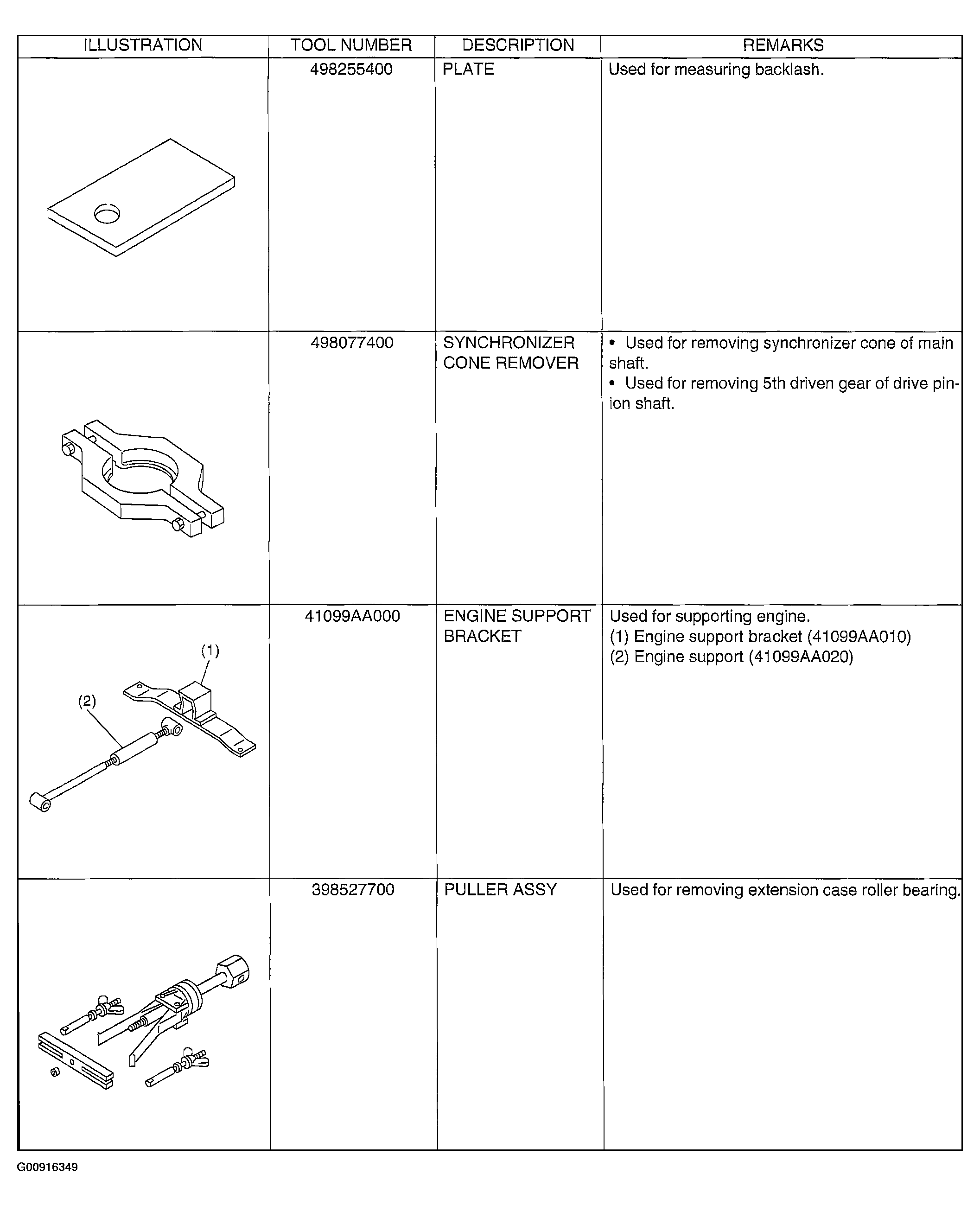

Fig 7: Identifying Special Tools (7 Of 12)
Courtesy of SUBARU OF AMERICA, INC.

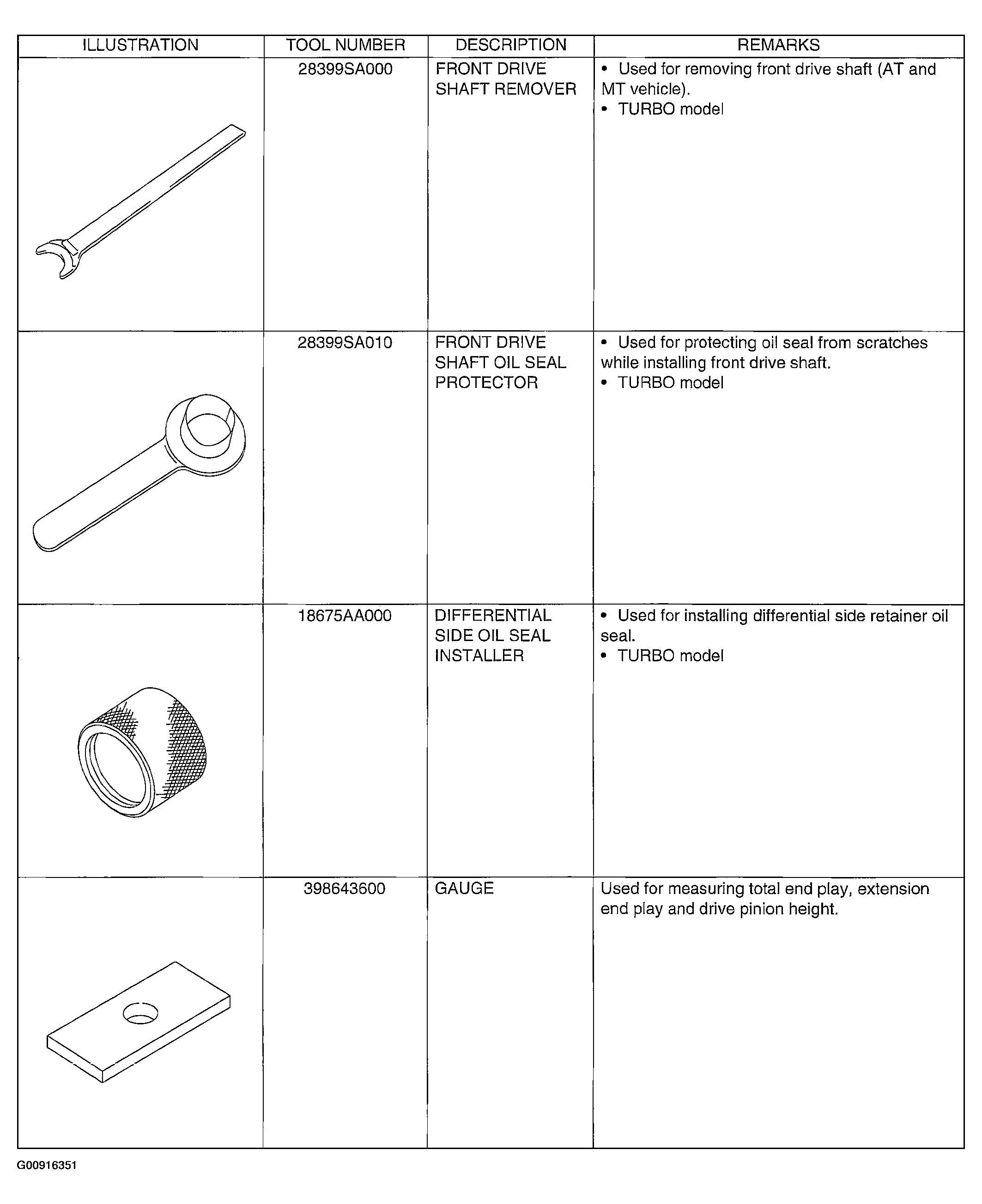

Fig 8: Identifying Special Tools (8 Of 12)
Courtesy of SUBARU OF AMERICA, INC.

Fig 9: Identifying Special Tools (9 Of 12)
Courtesy of SUBARU OF AMERICA, INC.

Fig 10: Identifying Special Tools (10 Of 12)
Courtesy of SUBARU OF AMERICA, INC.

Fig 11: Identifying Special Tools (11 Of 12)
Courtesy of SUBARU OF AMERICA, INC.

Fig 12: Identifying Special Tools (12 Of 12)

Courtesy of SUBARU OF AMERICA, INC.

GENERAL PURPOSE TOOLS

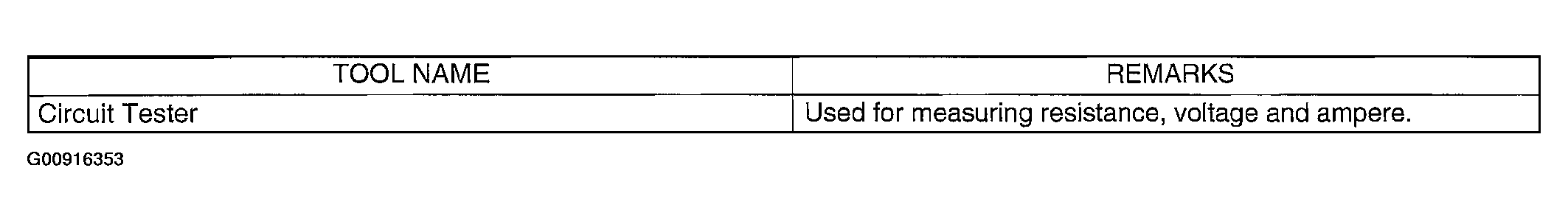

Fig 13: General Purpose Tools Chart
Courtesy of SUBARU OF AMERICA, INC.
