Component Locations

WARNING: This page is about a different car, the 2002 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Refer to illustration for restraint system component locations. See Fig 1.

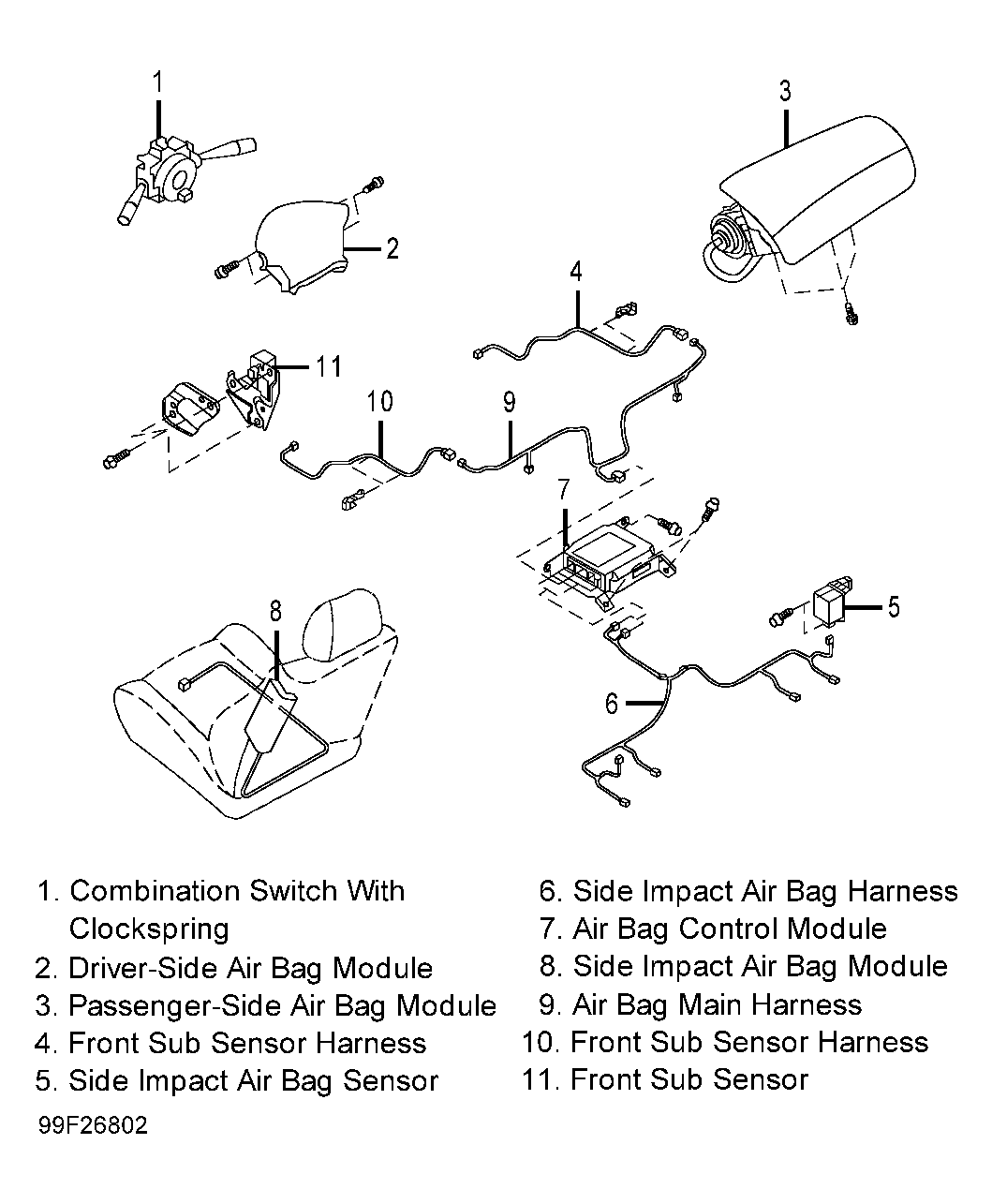

Fig 1: Locating Restraint System Components

Courtesy of SUBARU OF AMERICA, INC.
