Heater Core: Removal

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove heater unit. < Ref. to REMOVAL  , Heater Unit.>
  2. Remove screws to separate heater unit case.
  3. Remove heater core.

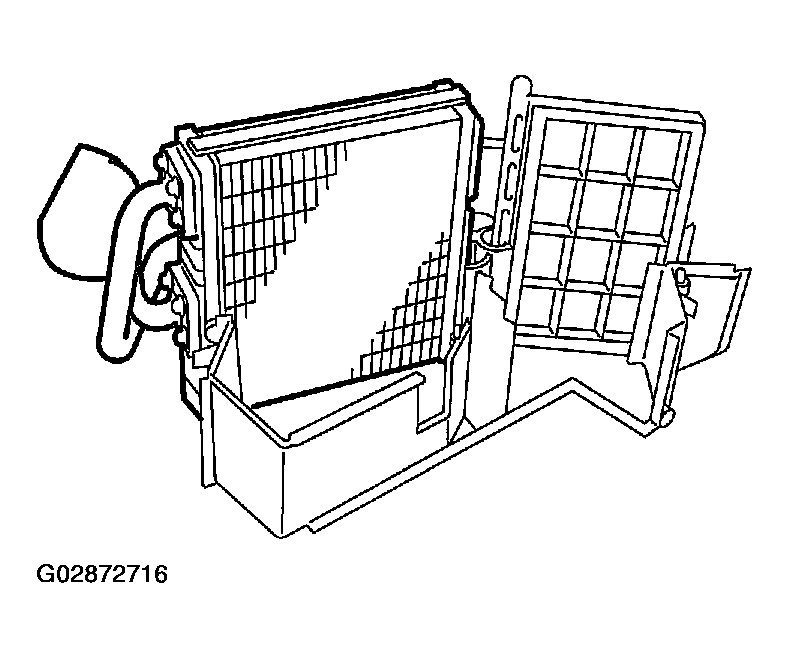

Fig 1: Removing Heater Core
G02872716Courtesy of SUBARU OF AMERICA, INC.
